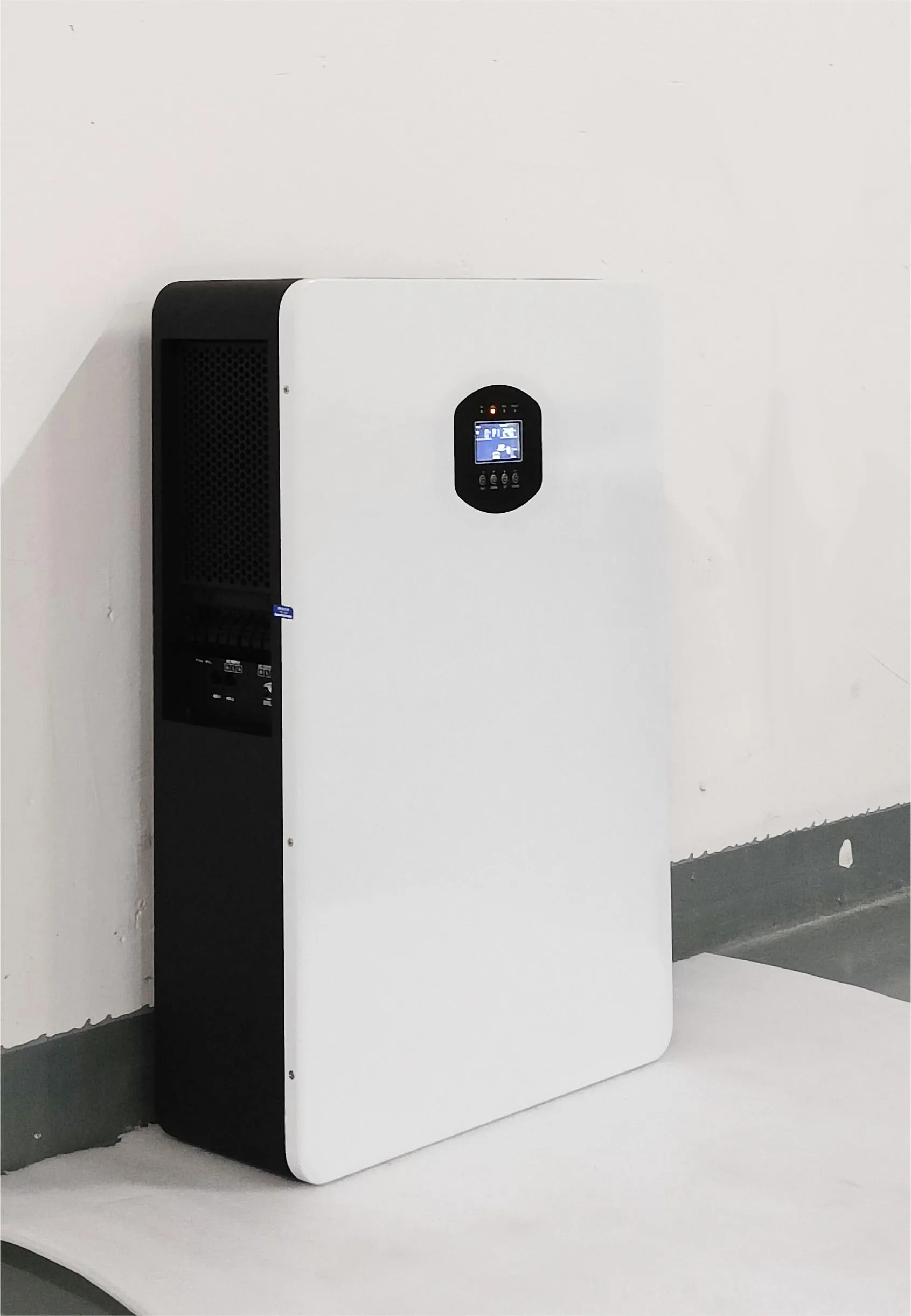

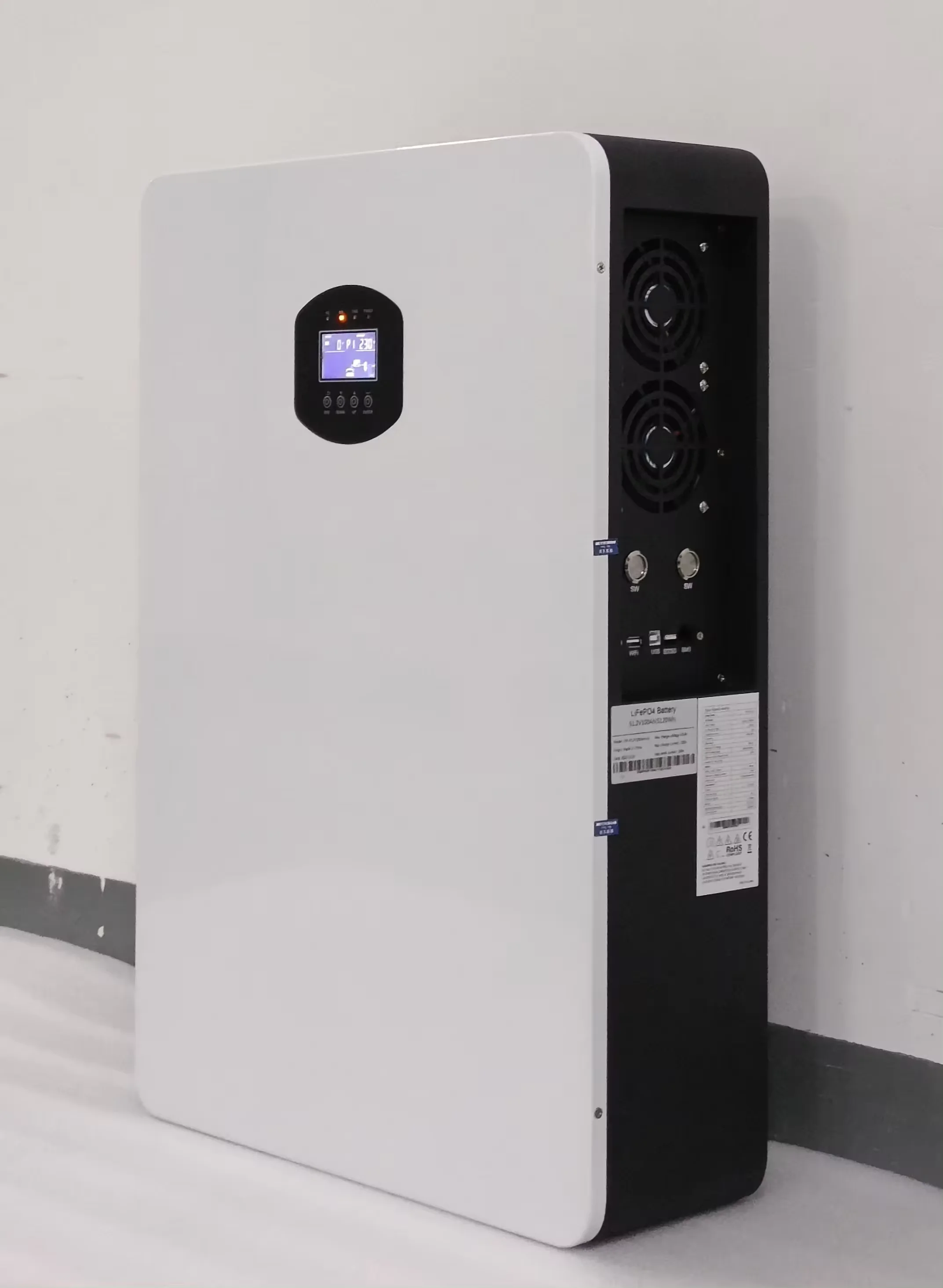

All in One 3kw 5kw10kw Battery and Inverter 48v 51.2v 5kwh Mobile ESS Solar Energy Storage System Lithium Battery

TTN New Energy Technology (Wenzhou) Co., Ltd.

Wenzhou China

Summary

No.1601149831214

More

$572.00

Specifications

Capacity:

200 AH

100 Ah

Color:

White

System Voltage:

51.2 V

25.6 V

12.8 V

Energy:

5 kWh

2.5 kWh

1.28kWh

INQUIRY

Description Download

Key attributes

Industry-specific attributes

Output Power Range

0-5 kWh

Grid connection

Hybrid grid

Other attributes

Battery Type

LiFePO4

System Type

Wall-mounted

Model Number

All in one ESS

Brand Name

TTNergy

Place of Origin

Zhejiang, China

Dimension (L*W*H)

450*150*600mm

Weight

29Kg

Type

All-in-one

Communication Port

CAN, rs485

Protection Class

IP54

Voltage

12.8V/25.6V/ 51.2V

Battery capacity

100AH-200AH

Packaging and delivery

Selling units

Single item

Single package size

50X20X80 cm

Single gross weight

60.000 kg

Item	Model	2.56KWh+3KW	5KWh+5KW
Battery Module	Voltage	25.6V	51.2V
		Battery capacity	100Ah
		Charge voltage	29V	58V
		Discharge cut-off voltage	20V	42V
		Charge current	50A
		Max charge current	120A	100A
		Discharge current	120A	100A
		Max discharge current	150A	100A
		Max peak current	100A	200A
		Communication method	RS485/CAN
Hybrid Inverter	Power	3KW	5KW
		Output Voltage	230VAC
		Frequency	50Hz/60Hz
		input power (PV)	3KW	5KW
		Input voltage range (PV)	30-400VDC	120~430VDC
		Communication connect port	/	WiFi (optiona))
Parameter	Protection Degree	IP21
		Material/Colour	Metal/White
		Size	450150600mm	500170720mm
		Weight	29Kg	56Kg
		Temperature	Charge:0℃-50℃ Discharge;-15℃-60℃
