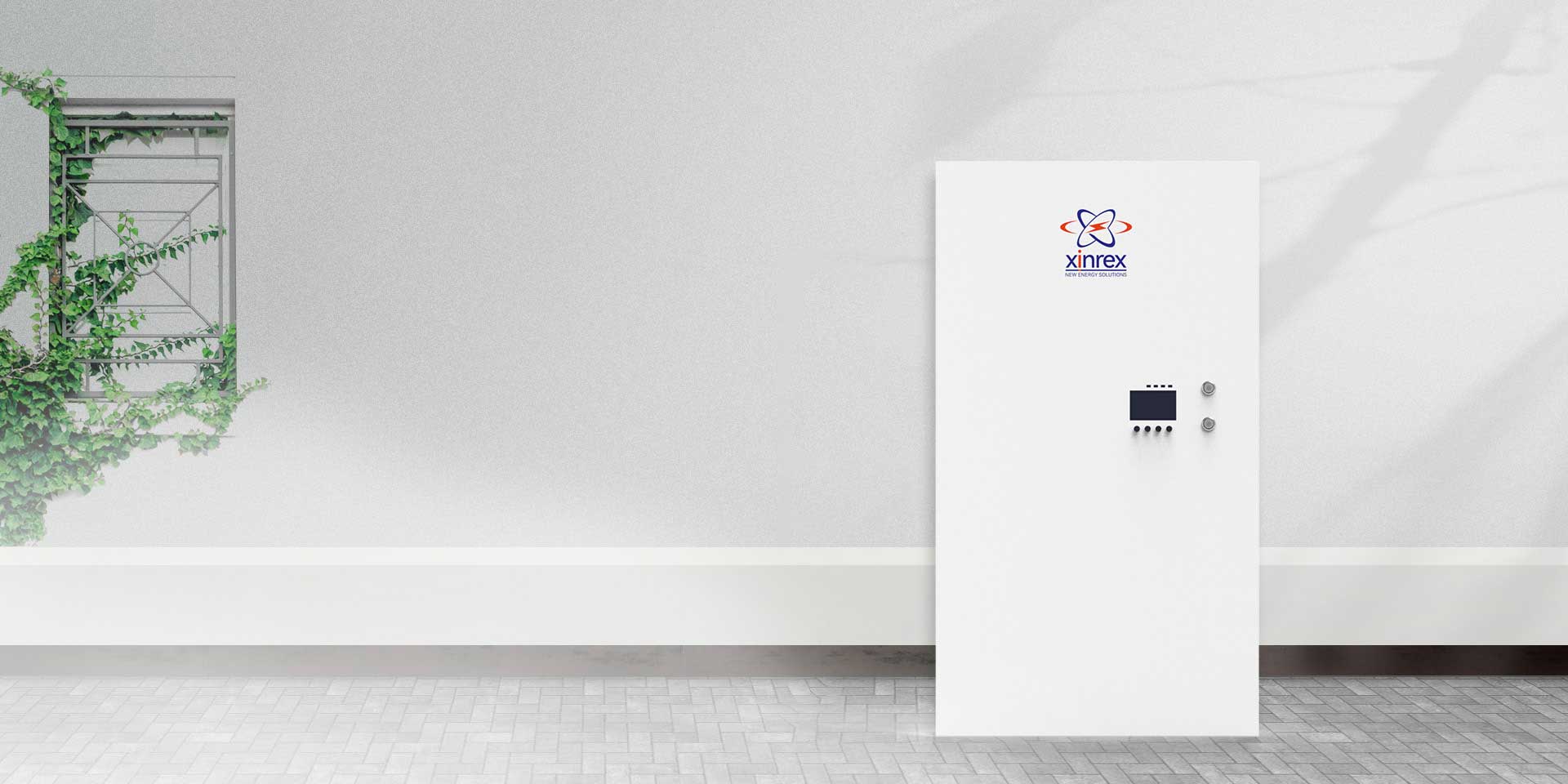

| Model | 5K/5KWh |
| Battery | |
| Cell Materials | LiFePO4 |
| Pack Method | 1P16S |
| Nominal Capacity | 102Ah |
| Nominal Voltage | 51.2V |
| Energy | 5222Wh |
| Communication Method | CAN |
| Charge Cut-off Voltage | 58.4V |
| Discharge Cut-off Voltage | 41.6V |
| Maximum Charging Current | 100A |
| Maximum Discharge Current | 100A |
| Charging Mode | Two-Stage/Three-Stage Charging/PV Charging |
| Operating Efficiency | 98% |
| Cycle Life | ≥6,000 Times |
| Internal impedance | ≤100mΩ |
| Ambient Temperature | -10℃~50℃ |
| PV | |
| PV Charging Method PV | MPPT |
| PV Input Maximum Power PV | 5000W |
| MPPT Operating Voltage MPPT | 120~430Vdc |
| PV input Voltage Range PV | 150V~500V |
| Starting Voltage | 150Vdc |
| PV Maximum input Voltage PV | 500Vdc |
| MPPT Quantity MPPT | 1 |
| Maximum Input Current | 30A |
| Max Charging Current | 100A |
| AC Input | |
| Main Topology | L+N+PE |
| Nominal Voltage | Default220V, 230/240VAC |
| Input Voltage Range | 90~280V(Default APP)；170~280V(UPS) |
| Frequency Range | 45~55Hz，Default |
| Power Factor | ≥0.99 |
| AC Output | |
| Main Topology | L+N+PE |
| Output Voltage Waveform | Pure Sine Wave |
| Output Voltage | Default 220VM, 230/240VAC |
| Voltage Regulation | ≤±5% |
| Nominal Output Power | 5000W |
| Power Factor | 1 |
| Frequency Range | Line Mode：Synchronized range，Battery Mode：50/60Hz±0.1% |
| Harmonic Distortion | ≤3% (Linear Load)；≤5% (Non-linear Load PF=0.7) |
| Transfer Time | APP：Line Mode to Battery Mode 10ms(Typical) UPS：Line Mode to Battery Mode 10ms(Typical) |
| Overlord Capacity | 1min@102%~110% Load； 10s@110%~130% Load；3s@130%~150% Load；0.2s@>150% Loa |
| Maximum Charging Current of AC Power | 80A |
| Bypass Current | 40A |
| Switching Time | <10ms |
| Efficiency | |
| Battery Mode(Peak Efficiency) | 94% |
| MPPT Tracking Efficiency (Peak Efficiency) | 99.5% |
| Line Mode | >99.5%@5Kva (Full R load, without battery connect;Efficiency VS load curve with different input Voltage. |
| Battery Mode | >91.5% (Full R load;Efficiency VS load curve with different input Voltage. |
| Standby Power | ＜60W (No-load mode, battery disconnected ) |
| General parameters | |
| IP Protection Level | IP21 |
| Ambient Temperature | -20℃-50℃ |
| Operating Temperature Range | -20℃~+60℃ |
| Ambient Humidity | 5-95%(No condensation ） |
| Display Mode | LCD |
| Warranty | 5 years for battery cells and 2 years for inverter boards |
| Operating Altitude | <2000m |
| Cooling | Intelligent air cooling |
| Dimension | 800*455*140mm |
| Weight | 54.5kg |
| Noise | <60db |
