Guangdong China
|

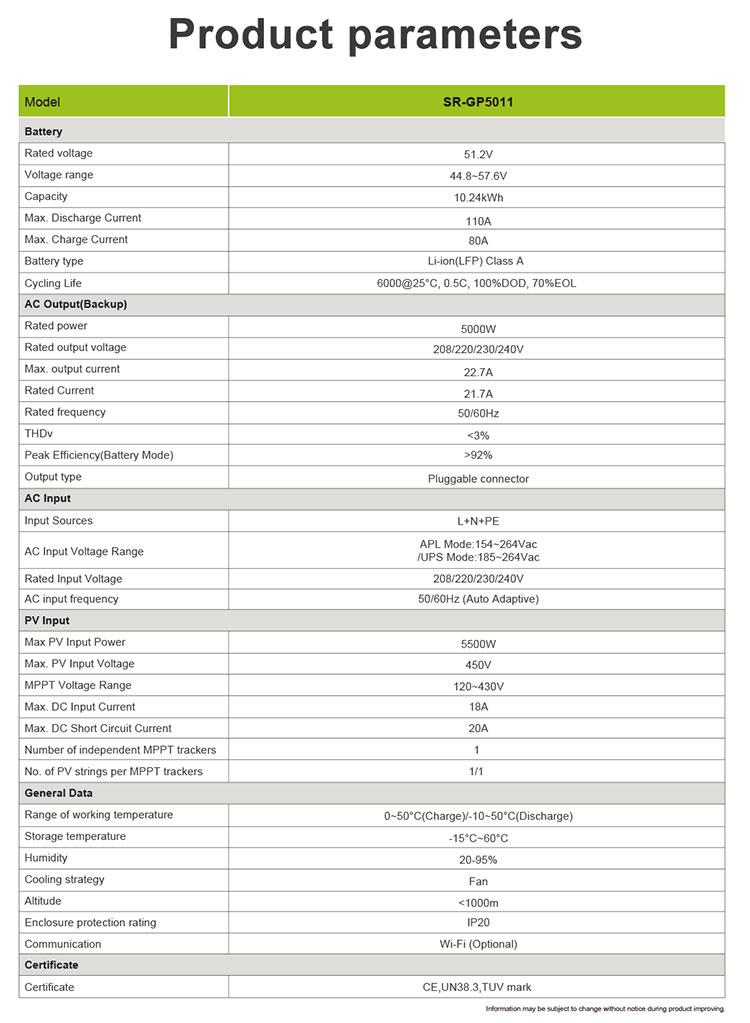

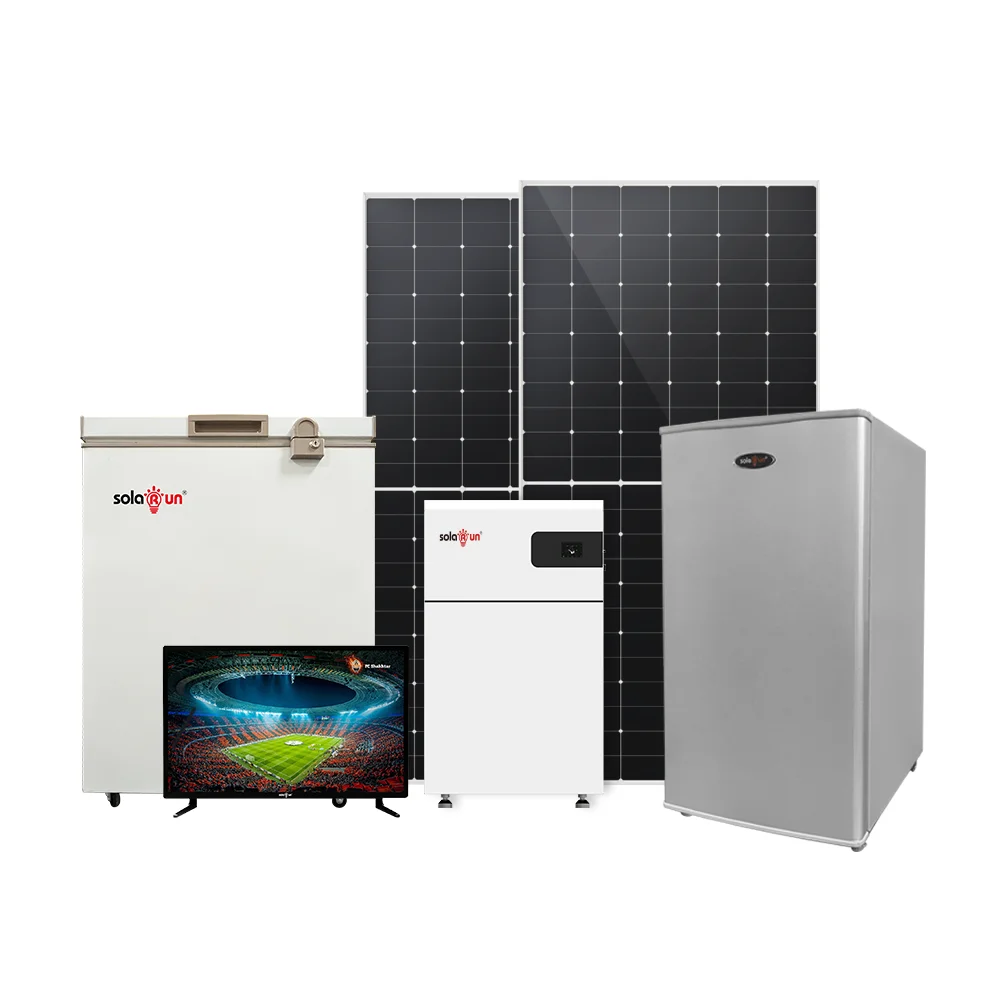

Model
|
SR-GP5011
|
|
|
Battery
|
||
|
Rated Voltage
|
51.2V
|
|
|
Voltage Range
|
44.8-57.6V
|
|
|
Capacity
|
10.24KWh
|
|
|
Max. Discharge Current
|
110A
|
|
|
Max. Charge Current
|
80A
|
|
|
Battery Type
|
Li-ion(LFP)Class A
|
|
|
Cycling Life
|
6000@25°C, 0.5C, 100%DOD, 70%EOL
|
|
|
AC Output(Backup)
|
||
|
Rated Power
|
5000W
|
|
|
Rated Output Voltage
|
208/220/230/240V
|
|
|
Max. output cunent
|
22.7A
|
|
|
Rated Current
|
21.7A
|
|
|
Rated Frequency
|
50/60Hz
|
|
|
THDv
|
<3%
|
|
|
Peak Efficiency(Battery Mode)
|
>92%
|
|
|
Output Type
|
Pluggable connector
|
|
|

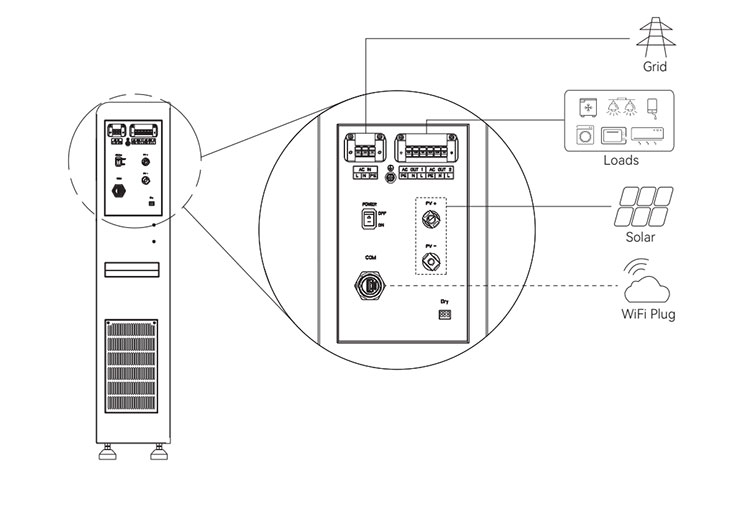

AC Input
|
||
|
Input Sources
|
L+N+PE
|
|
|
AC Input Voltage Range
|
APL Mode:90-280Vac
/UPS Mode:170—264Vac |
|
|
Rated Input Voltage
|
208/220/230/240V
|
|
|
AC input frequency
|
50/60HZ (Auto Adaptive)
|
|
|
PV Input
|
||
|
Max PV Input Power
|
5500W
|
|
|
Max PV Input Voltage
|
450V
|
|
|
MPPT Voltage Range
|
120-430V
|
|
|
Max. DC Input Current
|
18A
|
|
|
Max. DC Short Circuit Current
|
20A
|
|
|
Number of independent MPPT trackers
|
1
|
|
|
No. of PV Strings per MPPT trackers
|
1/1
|
|
|
Certificate
|
CE.UN38.3,IUV marh
|
|
