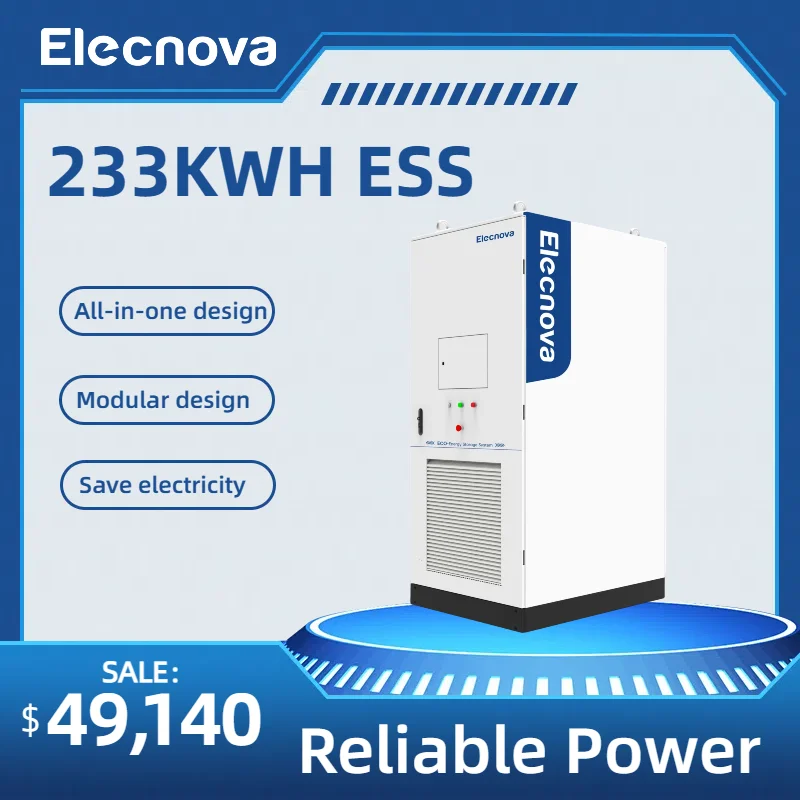

All-in-one Outdoor Battery Cabinet Power Supply Generator Energy Storage System with Backup

Shanghai Elecnova Energy Storage Co., Ltd.

ShangHai China

Summary

No.1601106707657

$56386.00

Specifications

Color:

Wihte

System Energy Range:

200-500 kWh

Capacity:

280AH

System Voltage Range:

500~1000 V

INQUIRY

Description Download

Key attributes

Industry-specific attributes

Battery Type

LiFePO4

Grid connection

Off grid, Hybrid grid, On grid

Other attributes

Model Number

ECO-E233LS

Brand Name

Elecnova

Place of Origin

Jiangsu, China

Dimension (L*W*H)

1050*1,350*2,400 (mm)

Weight

2,500kg

Communication Port

rs485, Ethernet

Protection Class

ip55

Cooling

Liquid Cooling

Energy Conversion Efficiency

≥90%

Charge/Discharge Rate

0.5P

Discharge Depth

95%DOD

OEM/ODM

Accepatable

Application

Industrial

Keywords

Cabinet Energy Storage

Capacity

233KWH

Cycle life

8000 Times

Usage

Industrial Commercial

BMS

Built-in BMS Protection

Packaging and delivery

Selling units

Single item

Single package size

120X140X245 cm

Single gross weight

2550.000 kg

Basic Info.

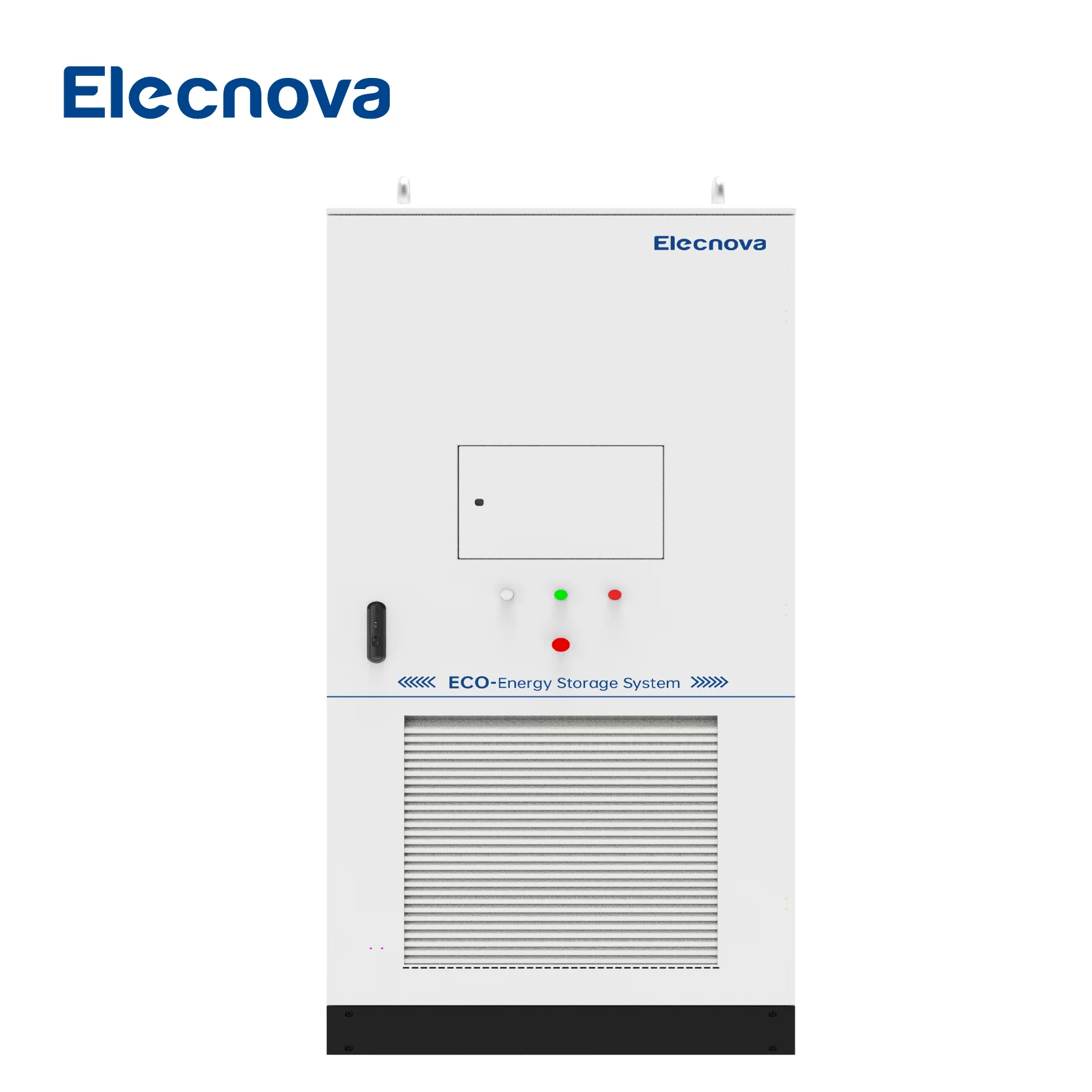

ECO-E233LS

Elecnova 233KWH commercial & industrial energy storage system adopts adopts advanced cabinet-level liquid cooling and temperature balancing strategy. The cell temperature difference is less than 3°C, which further improves the consistency of cell temperature and extends the battery life. The modular design makes the parallel solution more flexible and has higher energy density, which significantly improves the economy, safety and construction convenience of ESS projects.

Key Features:
* All-in-one design for easy integration
* Modular design for flexible expansion
* Capacity of up to 233kWh and power up to 100kW
* Black start capability for independent power restoration
Benefits:
* Efficient energy storage for industrial & commercial applications
* Reliable power supply during outages or emergencies
* Cost-effective solution for solar panel battery storage
solar battery storage systems solar battery storage solar panel battery storage cost industrial

Products Description

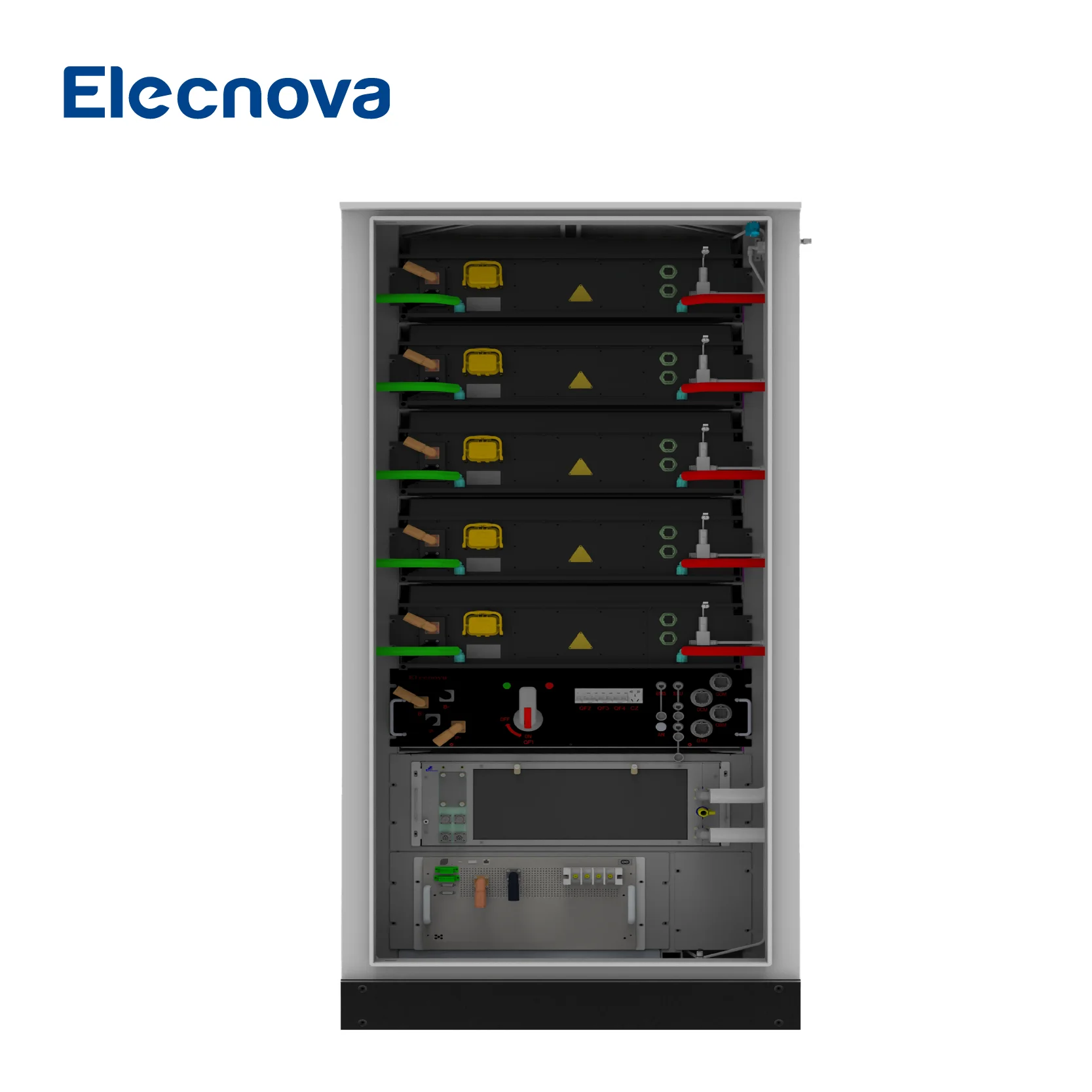

The 3D structure diagram

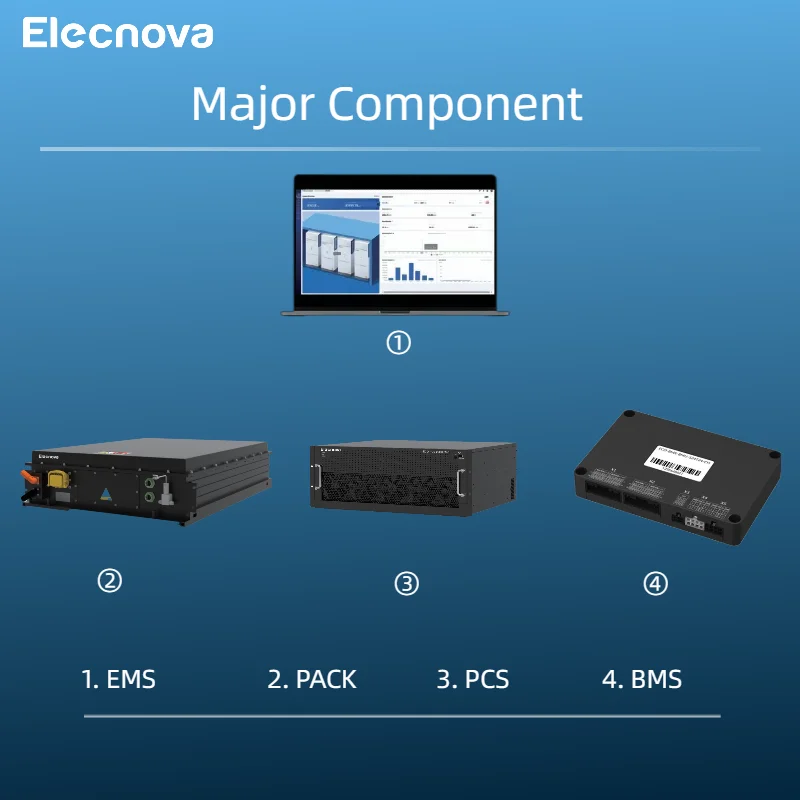

Key Components (Self-developed)

Liquid-Cooled PACK

The liquid-cooled PACK consists of LFP cells, grouping in 1P52S. With built-in BMU, HV connectors, liquid cooling plate module, fixed structural components , these accessories enable the PACK module to have protection functions such as overvoltage, undervoltage, overcurrent, insulation, short circuit, and overheat. Combined with PCS, it achieves energy charge and discharge.

PCS

The PCS is a modular inverter specifically designed for small-scale energy storage systems. It achieves bidirectional energy conversion in ESS and can meet the requirements of various scenarios such as C&I ESS, substation energy storage, PV-plus microgrid with ESS.

BMS

BMS supports two architectures: three-level architecture (BMU+BCU+BAU) and two-level architecture (BMU+BCU). BMU, BCU and BAU respectively other PACK-level, cluster-level and array-level protection against overcharging, over-discharging, overcurrent, overheat and short circuit for battery clusters. Real-time monitoring of battery safety status, fault diagnosis, and warnings are provided.

EMS

ECO-EMS series products adopting an integrated architecture design, the system is suitable for user-side ESS, microgrid and PV-plus ESS and more. It ensures that the system operates optimally at all times, maximizing overall benefits and shortening ROI.

DC Side
Cell Type	LFP280Ah
Pack	46.59kWh/1P52S
Battery System	233.96kWh/1P260S
Voltage Range	728~936V DC
PACK Ingress Rating	IP65
AC Side
Rated Power	100kW
Max. Power	110kW
THDi	≤3%
DC Ratio	＜0.5%Ipn
Nominal Voltage	400Vac/3P+N+PE
Power Factor	-1 lagging~1 leading
Nominal Frequency	50Hz/60Hz
General
System Efficiency	≥90%
Charge/Discharge Rate	0.5P
DoD	95%（25±2℃）
SOC Accuracy	＜3%
Cycle Life	≥8,000 times
Switching Time	＜100ms
Connectivity	Ethernet /RS485
Ingress Rating	IP55
Cooling	Active liquid cooling
Operating Temperature	-25℃~55℃
Humidity	5~95%RH, non-condensing
Noise	≤75dB
Altitude	≤2,000m (derating above 2,000m)
Fire Safety	NOVEC1230/aerosol
Dimensions (WDH)	1,0501,3502,400 (mm)
Weight	2500kg
Compliance	UN38.3, IEC62619, UL1973, UL9540 and CE-EMC

Main Features

Compact : 1.4m² footprint only, easy transportation & fast installation.
High Integration: 233kWh energy in one cabinet and ensure long-term endurance.
Efficient Cooling: Optimal in-PACK duct design, achieve high-efficient cooling and low energy consumption.
Long Cycle Life: Over 8,000 times cycle life, excellent performance of battery system.
Flexible Expansion : Modular design, simplified parallel expansion.
Ultimate Safety: In-PACK fire warning and protection with NOVEC1230/aerosol, prevent heat diffusion and runaway

Application

Elecnova ESS solutions can be widely used in these scenarios: Industrial Park,Factory ,Microgrid,EV Charging station,Commercial complexes,Data Center and so on.

Click here to send an inquiry to get quotation and have a chance to get a $100 coupon, look forward to working with you!

Product Packing

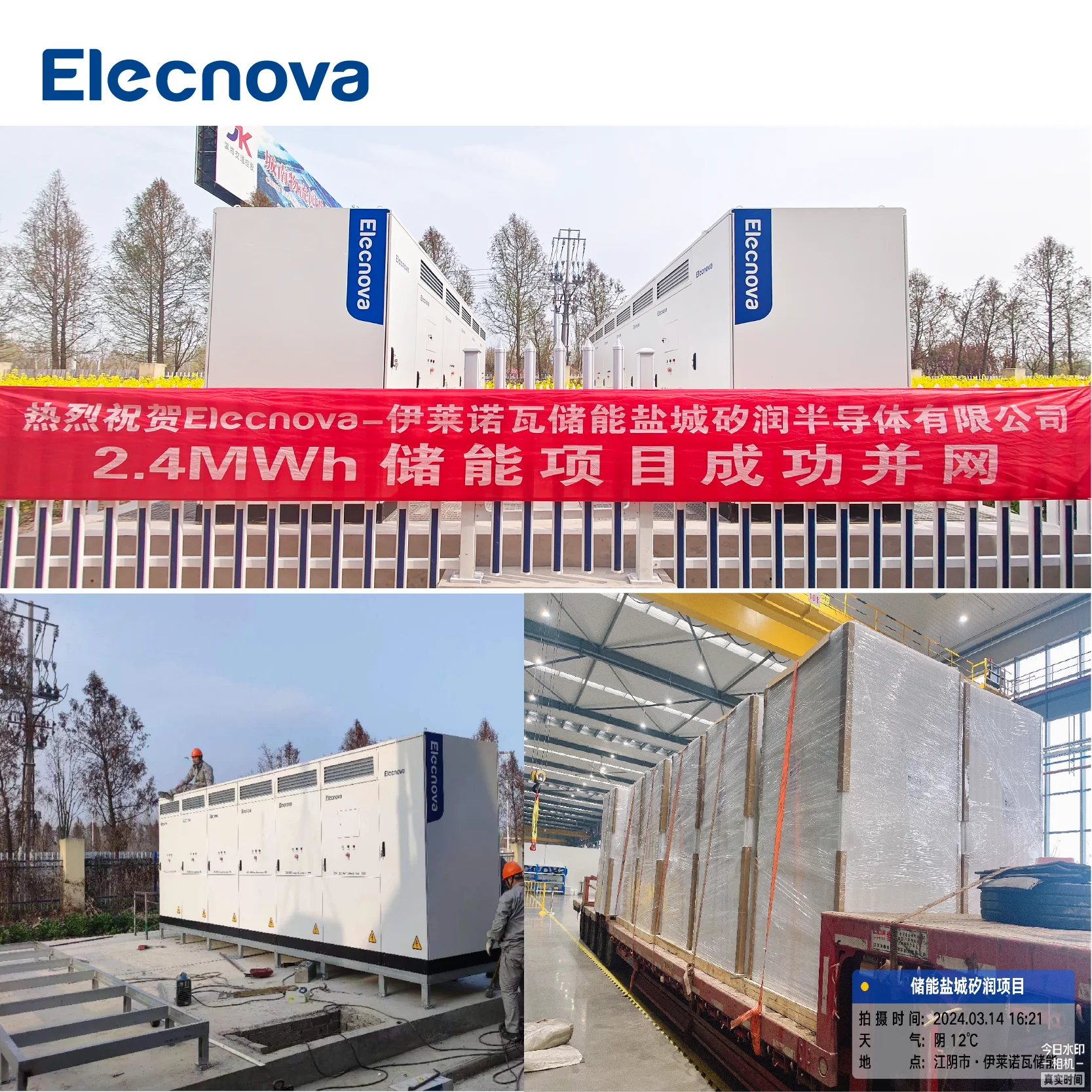

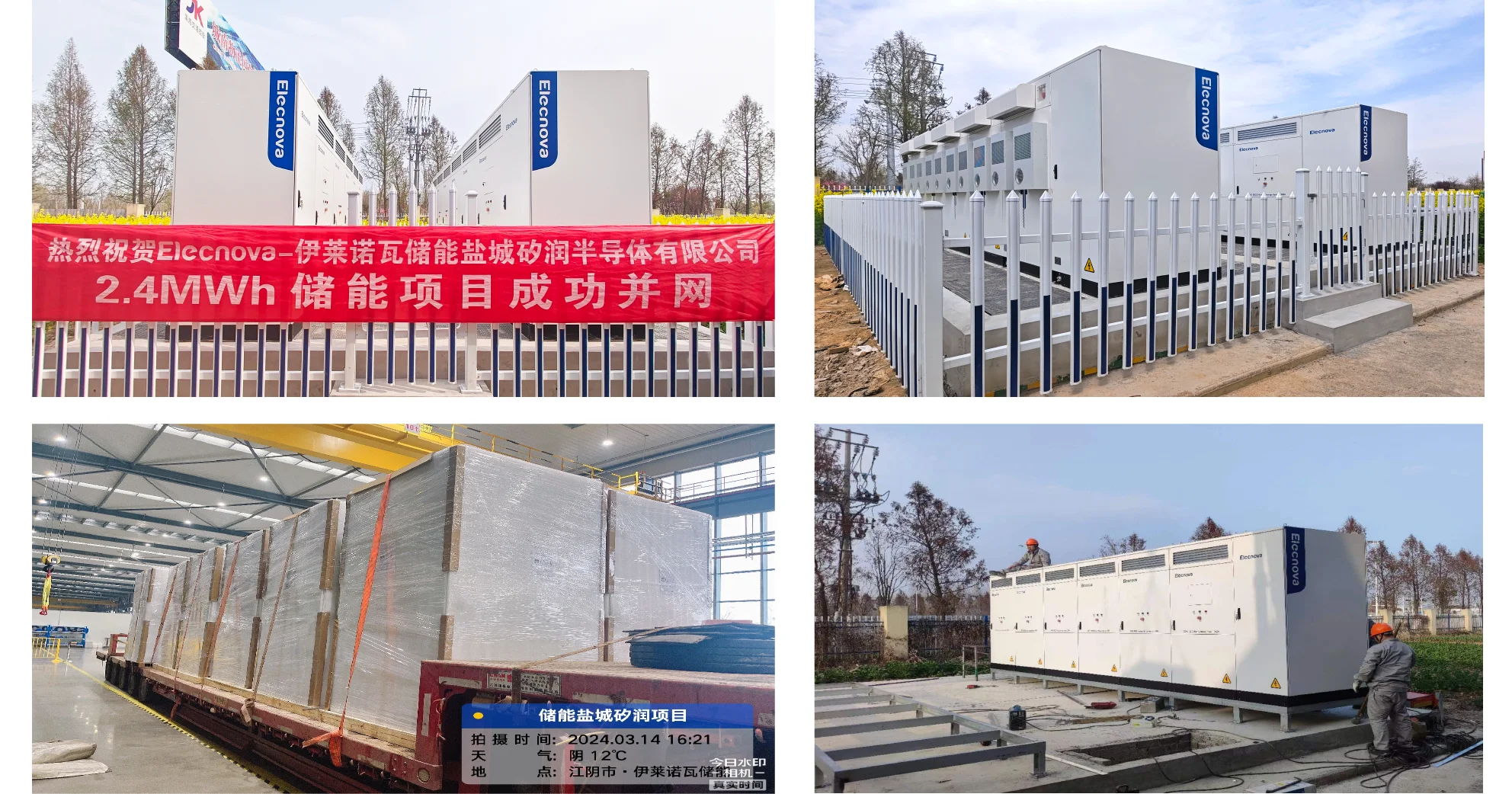

Elecnova Energy storage 2.4MWh energy storage project successfully connected to the grid! The project adopts advanced energy storage technology and equipment, which has the characteristics of high efficiency, stability and safety.

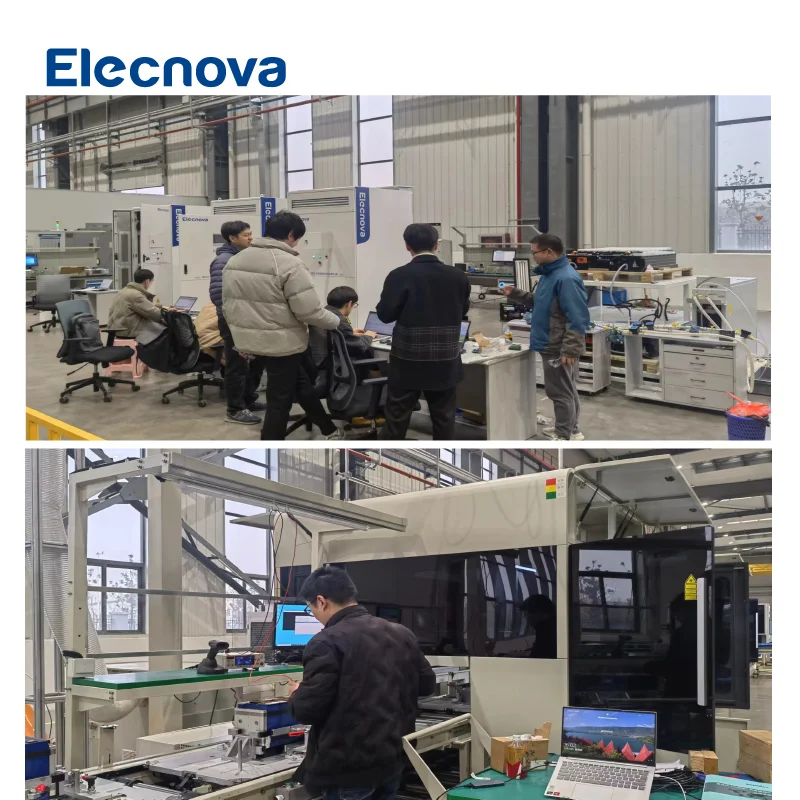

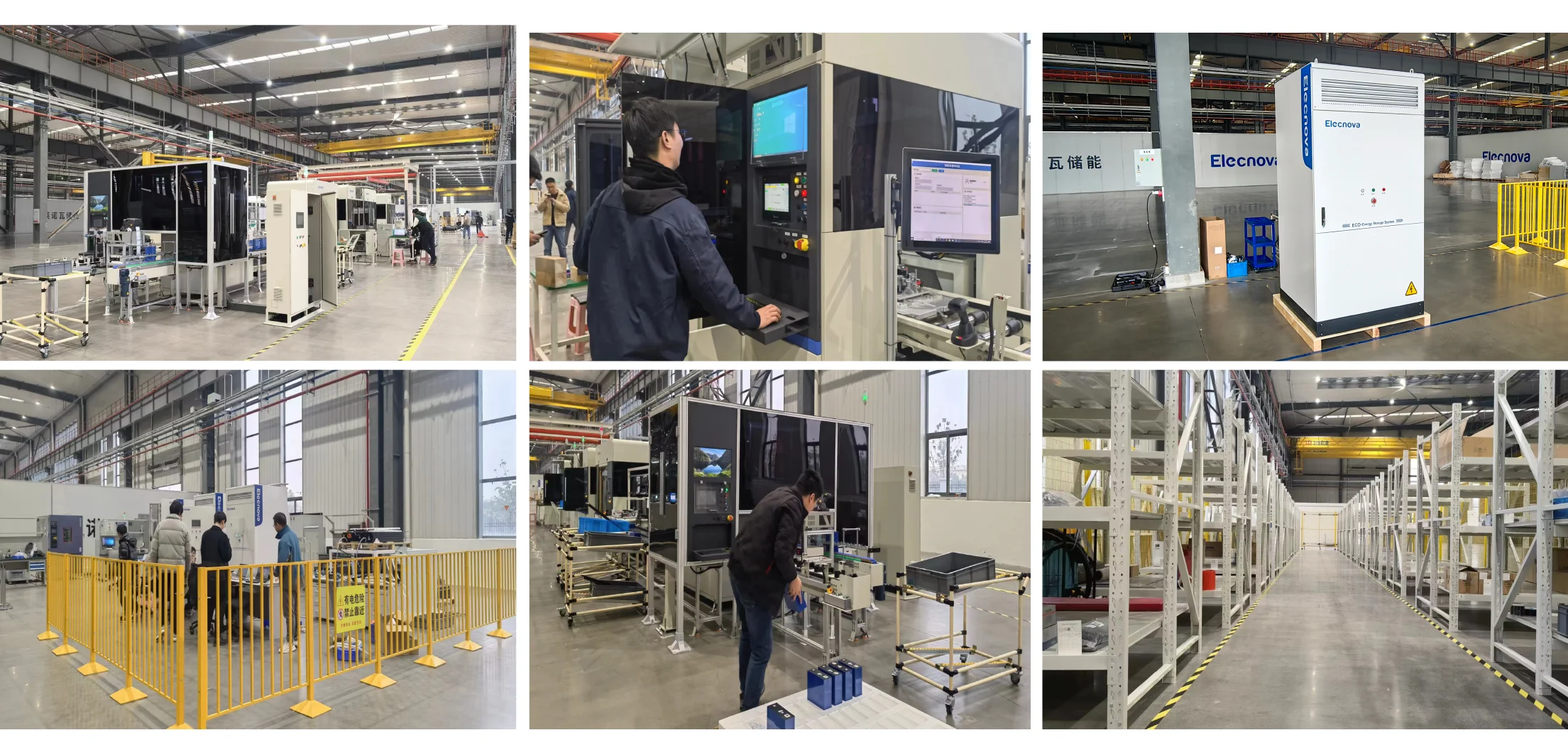

Company Profile

00:21

02:10

Shanghai Elecnova Energy Storage Co., Ltd. is a technology-based enterprise who focus on overall solutions for erstorage systems. Our company have the overall supporting capability for the system integration of PACK, PCS, BMElecnova aims to meet the diversified energy requirements of segmented markets and customers, with products athe core and quality as the cornerstone. We are committed to providing high-quality customized products and seivarious energy consumption scenarios on the power generation side, grid side, and user side.

Exhibition

FAQ

Q:Who are we? Are you trading company or manufacturer?
We are manufacturer.We are based in Shanghai, China, start from 1998. There are total about 600+ people in our company.

Q:Can you supply OEM &ODM service?
A:Yes, but there is a minimum order quantity required.

Q:Can you ship your battery products by sea or by air?
A:We have long-term cooperated forwarders who are professional at battery shipment.

Q:How long is the warranty?
A:Our warranty is from 5~10 years.

Q:Why should you buy from us not from other suppliers?
Elecnova is a professional manufacturer of energy storage system .Our company specializes in the production of PCS,Battery PACK,BMS,EMS and all in one cabinet.

Q:How do you provide after-sales service?
A:We have overseas branches can provide repair and replacement.

Q:Can I get a sample?
A:Yes, please leave your contact information and our sales manager will contact you soon.
