Mode: AL | 0.3kW/12V | 0.5kW/12V | 0.5kW/24V | 1kW/24v | 1.5kW/24V | ||||||
Inverter | Battery voltage | 12v | 24v | ||||||||
Built-in battery specification | 1*55Ah/12V | 2*55Ah/12V | 4*55Ah/12V | ||||||||
Rated power | 300W | 500W | 500W | 1000W | 1500W | ||||||
Output voltage | 110/220VAC | ||||||||||
Output frequency | 50/60HZ | ||||||||||
Output waveform | pure sine wave | ||||||||||
Charge by a mains supply | Rated voltage | 110/220V AC-*("*"mean an optional function) | |||||||||
Charge current | 10A(maximum)-*(*means an optional function) | 5A (maximum)-*(*means an optional function) | |||||||||
solar input | Maximum power | ≤25V | ≤50V | ||||||||
Voltage of overcharge protection | 10-25V | 20-50V | |||||||||
Rated charge current | 30A | ||||||||||
Maximum power | 360Wp | 720Wp | |||||||||
Voltage of overcharge protection | 14.2V | 28.4V | |||||||||
Voltage of overcharge recovery | 14.0V | 28.0V | |||||||||
Voltage of floating charge | 13.7V | 27.4V | |||||||||
DC output | Voltage of high-voltage protection | 16V | 32V | ||||||||
Voltage of high voltage recovery | 15.2V | 30.4V | |||||||||
Voltage of low voltage recovery | 12.6V | 25V | |||||||||
Voltage of lower voltage protection | 11V | 22V | |||||||||

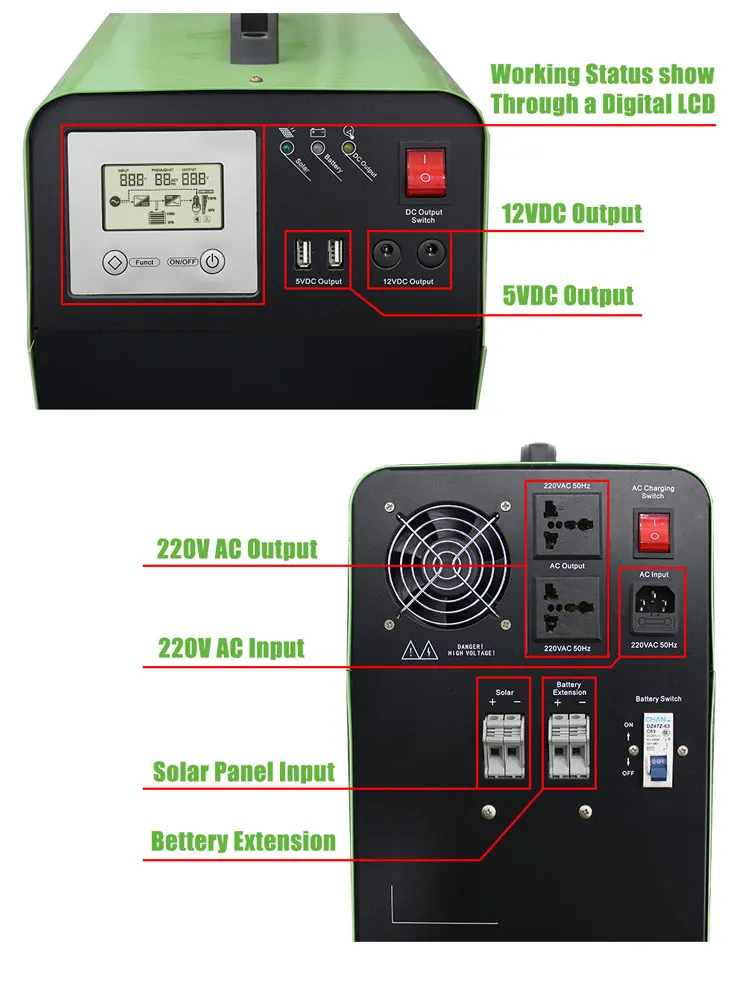

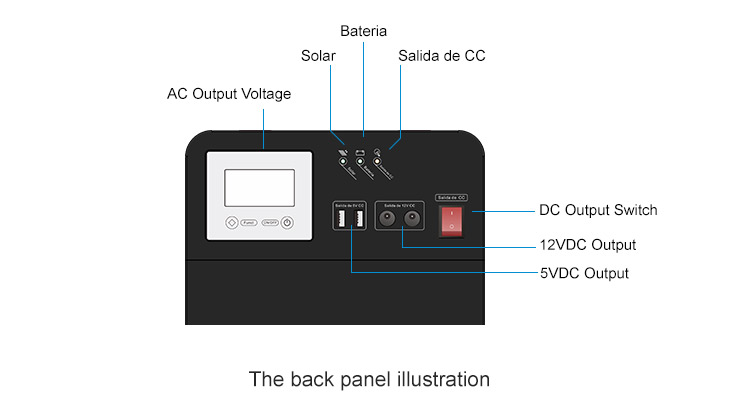

5V DC USB output port | 2one/max 2A | ||||||||||
12V DC output port | 2 DC ports + backboard 12V terminal block (maximum 8A) | ||||||||||
Starting temperature of the exhaust fan | >45°C | ||||||||||
Ambient temperature for operation | 0 to 40°C | ||||||||||
Ambient temperature for storage | -25 to 55°C | ||||||||||
Operation/storage condition | 0-90% (no condensation) | ||||||||||
