Summary

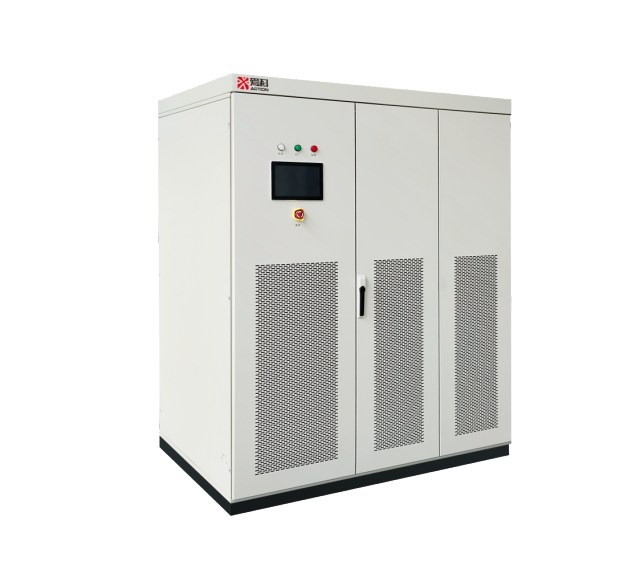

The APS PV Simulator is a high-precision, high-dynamic DC power supply designed for solar inverter testing. Featuring advanced I-V curve simulation, it accurately replicates the output characteristics of various PV panels, including static and dynamic curves, shadow occlusion, and international standard simulations such as EN50530 and Sandia. With fast switching (100ms I-V curve transition), high-speed dynamics (2.5ms load response), and voltage accuracy of ±0.1% F.S., this simulator supports a wide voltage range (12~1200V or 20~2000V) and current range (±300A to ±2000A). It offers versatile programming modes (Step, List, Wave), parallel operation for scalability, and multiple communication interfaces (RS485/LAN/CAN), making it ideal for R&D, quality testing, and compliance verification in the solar energy industry.More
Specifications
Voltage range:
12~1200V
Current range:
±300A to ±2000A
Communication interfaces:
RS485/LAN/CAN
  • APS PV Simulator High Precision High Dynamic DC Power Supply for Solar Inverter Testing
  • APS PV Simulator High Precision High Dynamic DC Power Supply for Solar Inverter Testing
  • APS PV Simulator High Precision High Dynamic DC Power Supply for Solar Inverter Testing
Features
High precision: Accurate I-V curve simulation; the voltage accuracy is ±0.1% F.S.; the current accuracy is ±0.1% F.S.
01
High dynamic: The load rise/fall time is about 2.5ms and the switching time is about 5ms; the voltage change rate is 200V/ms
02
High-speed switching: I-V curves can be switched quickly in 100ms
03
Comprehensive I-V curve simulation: Customized, static and dynamic comprehensive curve simulation, which can simulate sandia, EN50530, CGC/GF004, and other standard curves
04
The maximum capacity of a single unit is 1MW, meeting the test requirements for 1000V and 1500V PV inverters
05
It has the powerful universal programmable function
06
It supports parallel operation of multiple sets of the same model to improve the output capacity and facilitates the capacity upgrade
07
Multiple communication interfaces: RS485/LAN/CAN
08
Model
  • Product model
  • Rated capacity (kW)
  • Output voltage(V)
  • Output current(A)
  • Dimension(mm) (W×H×D)
  • Weight(kg)
  • APS-10-1203
  • ±100
  • 12~1200
  • ±300A
  • 1210X1955x1000
  • 1300
  • APS-15-1205
  • ±150
  • 12~1200
  • ±500A
  • 1210X1955x1000
  • 1300
  • APS-30-1206
  • ±300
  • 12~1200
  • ±600A
  • 1610X1955x1200
  • 2030
  • APS-40-1208
  • ±400
  • 12~1200
  • ±800A
  • 2010X1955x1200
  • 2470
  • APS-50-1210
  • ±500
  • 12~1200
  • ±1000A
  • 2010X1955x1200
  • 2850
  • APS-60-1212
  • ±600
  • 12~1200
  • ±1200A
  • 2410X1955x1200
  • 3500
  • APS-75-1215
  • ±750
  • 12~1200
  • ±1500A
  • 3410X1955x1200
  • 4530
  • APS-100-1220
  • ±1000
  • 12~1200
  • ±2000A
  • 3410X1955x1200
  • 4960
  • APS-10-2003
  • ±100
  • 20~2000
  • ±300A
  • 1610X1955x1200
  • 1500
  • APS-15-2005
  • ±150
  • 20~2000
  • ±400A
  • 1610X1955x1200
  • 1700
  • APS-30-2004
  • ±300
  • 20~2000
  • ±400A
  • 1610X1955x1200
  • 1900
  • APS-40-2006
  • ±400
  • 20~2000
  • ±600A
  • 1610X1955x1200
  • 2430
  • APS-50-2007
  • ±500
  • 20~2000
  • ±700A
  • 2010X1955x1200
  • 2670
  • APS-60-2008
  • ±600
  • 20~2000
  • ±800A
  • 3410X1955x1200
  • 3500
  • APS-75-2010
  • ±750
  • 20~2000
  • ±1000A
  • 3410X1955x1200
  • 4390
  • APS-100-2014
  • ±1000
  • 20~2000
  • ±1400A
  • 3410X1955x1200
  • 4940
