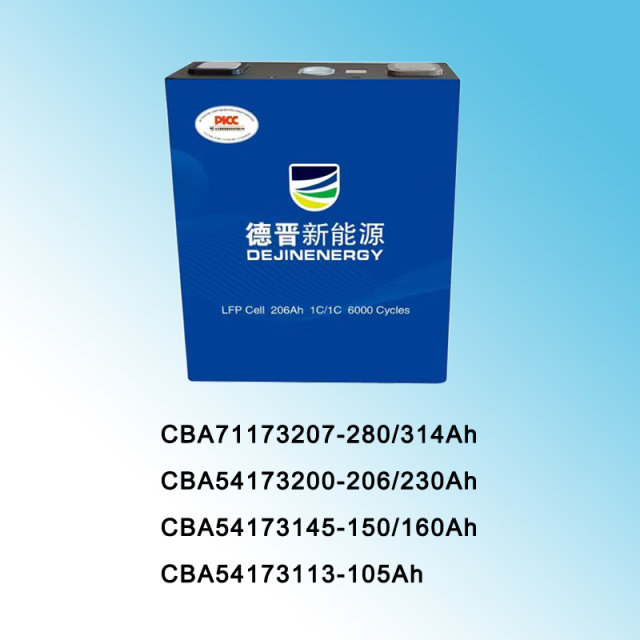

sddejin Battery Cell products represent the pinnacle of energy storage solutions, designed for applications requiring unparalleled reliability, durability, and high-performance. These advanced cells are meticulously engineered to cater to a wide range of industries, from renewable energy systems to electric vehicles and backup power supplies. At the core of these cells lies a blend of innovative technologies and stringent quality control measures, ensuring every unit exceeds industry standards.
More
Key Features & Specifications:
CELL Technology sddejin Battery Cell employs cutting-edge C-CELL technology, which enhances energy density and discharge efficiency. This technology optimizes the internal structure of the cell, maximizing its capacity to store and deliver power efficiently.
B-Lithium Iron Phosphate (LFP) Chemistry: The heart of these battery cells is the reliable lithium iron phosphate chemistry. Known for its exceptional safety, long cycle life, and wide operating temperature range, LFP chemistry guarantees a stable and predictable performance, even under demanding conditions.
Aluminum Shellcased in a durable aluminum shell, sddejin Battery Cells offer exceptional structural integrity and resistance to external factors such as impact and corrosion. This robust design extends the cell's lifespan and ensures safe operation in various environments.
Dimensions & Capacity: With a precise cell thickness of 173mm, a width of 200mm, and a shoulder height of 206mm, these cells are tailored for optimal integration into various systems. Their rated capacity of 206Ah underscores their ability to store substantial amounts of energy, making them ideal for high-demand applications.
Performance Benefits:
Enhanced Safety: The inherent safety of LFP chemistry, coupled with the robust aluminum shell, minimizes the risk of thermal runaway or fire, ensuring user safety and peace of mind.
Longevity: With a proven track record of exceptional cycle life, sddejin Battery Cells guarantee years of reliable service, reducing maintenance costs and enhancing overall system economics.
Versatility: The combination of high energy density, durability, and compact dimensions makes these cells suitable for a myriad of applications, from stationary energy storage to portable power solutions.
|
Item |
Specifications |
Remarks |
|
|
Cell size(mm) |
thickness |
71.5+0.5 |
150 + 15kgf force wasapplied in the thicknessdirection for dimension |
|
width |
173.6+0.3 |
||
|
Shoulder height |
204.0+0.3 |
||
|
Including pole height |
207.8+0.3 |
||
|
Nominal capacity (Ah) |
314 |
N/A |
|
|
Nominal voltage (V) |
3.2 |
N/A |
|
|
Weight (g) |
5555g±75g |
N/A |
|
|
Operatingtemperature |
charge |
0℃≤T≤60℃ |
N/A |
|
discharge |
-20℃≤T<60 ℃ |
N/A |
|
