Our factory produces cells, which mainly includes prismatic cell and cylindrical cell. We not only produce cells to meet our own battery packaging needs, but also sell cells to our customers. in addition, we sell also battery cells of well-known brands, and meet the needs of various customers.
 | Features: |

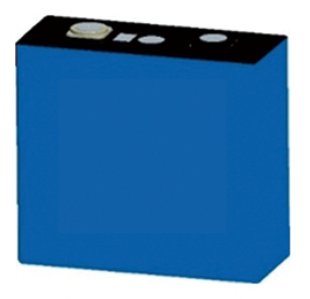

Other Prismatic LFP Cells Show
| Model: ESLFP105. Nominal Voltage：3.2V Nominal, Capacity：105Ah Dimension: L48*W174*H128 mm Weight:2200±110g Energy: 320Wh(0.5C@25℃) Charge and Discharge Voltage range：2.5 ~ 3.65V Cycle life: 5000 times, Continuous discharge current 1C Charging Temp.:0~45℃, Discharging Temp.:-20~55℃ Inner insistence:≤0.4mΩ Application:Mine car, Special vehicle |
 Type: 3.2V 135Ah | Model: ESLFP135. Nominal Voltage：3.2V Nominal, Capacity：135Ah Dimension: L48*W174*H166 mm Weight:2850±143g Energy: 384Wh(0.5C@25℃) Charge and Discharge Voltage range：2.5 ~ 3.65V Cycle life: 5000 times, Continuous discharge current 1C Charging Temp.:0~45℃, Discharging Temp.:-20~55℃ Inner insistence:≤0.4mΩ Application:home energy storage, energy storage power station |
Type: 3.2V 206Ah | Model: ESLFP206. Nominal Voltage：3.2V Nominal, Capacity：206Ah Dimension: L54*W174*H200 mm Weight:4000±200g Energy: 663Wh(0.5C@25℃) Charge and Discharge Voltage range：2.5 ~ 3.65V Cycle life: 5000 times, Continuous discharge current 1C Charging Temp.:0~45℃, Discharging Temp.:-20~55℃ Inner insistence:≤0.4mΩ Application:Forklift, truck, logistics vehicle |
| Model: ESLFP277. Nominal Voltage：3.2V Nominal, Capacity：277Ah Dimension: L72*W174*H200 mm Weight:5350±267g Energy: 892(0.5C@25℃) Charge and Discharge Voltage range：2.5 ~ 3.65V Cycle life: 5000 times, Continuous discharge current 1C Charging Temp.:0~45℃, Discharging Temp.:-20~55℃ Inner insistence:≤0.4mΩ Application:Forklift, truck, logistics vehicle |
| Type: 3.2V 280Ah | Model: ESLFP280. Nominal Voltage：3.2V Nominal, Capacity：280Ah Dimension: L72*W174*H200 mm Weight:5440±272g Energy: 896(0.5C@25℃) Charge and Discharge Voltage range：2.5 ~ 3.65V Cycle life: 5000 times, Continuous discharge current 1C Charging Temp.:0~45℃, Discharging Temp.:-20~55℃ Inner insistence:≤0.4mΩ Application:Energy storage system |
CylindricalCells
SES battery always develop and produce cylindricalcells of 18650/32650/14500/22650/26650 cells for our customers who can assemble battery packs to satisfy the requirements of high performance and operational reliability.
 | Features: Voltage covers: 3.2V Series Capacity: From 50Ah to 300Ah |
Cylindrical Cells Catalog
Model | Nominal Voltage (V) | Norminal Capacity (Ah) | Weight (g) | Internal Resistance (mΩ) | Cycle Life (cycles) | External Dimension | |
Diameter | Height | ||||||
mm | mm | ||||||
IFR18650 | 3.2 | 5000 | 70±5 | 4 | 3000 | 18.2±0.3 | 65.0±0.3 |
IFR21700 | 3.2 | 5000 | 80±5 | 7 | 3000 | 21.2±0.3 | 70.5±0.3 |
IFR32700 | 3.2 | 6000 | 140±5 | 7 | 3000 | 32.2±0.3 | 70.5±0.3 |
Applications
|
