Guangdong China

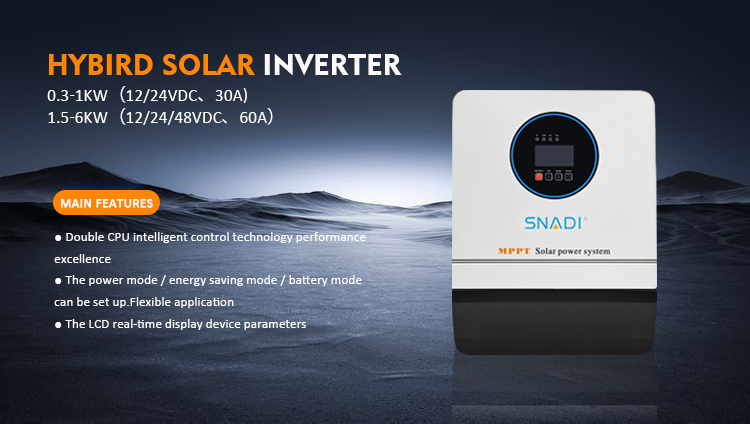

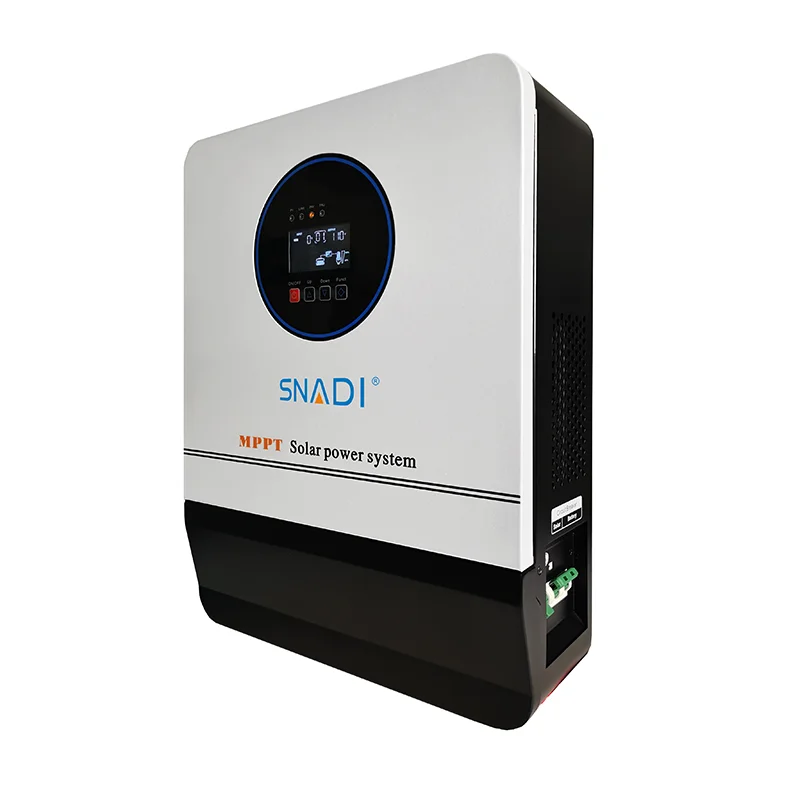

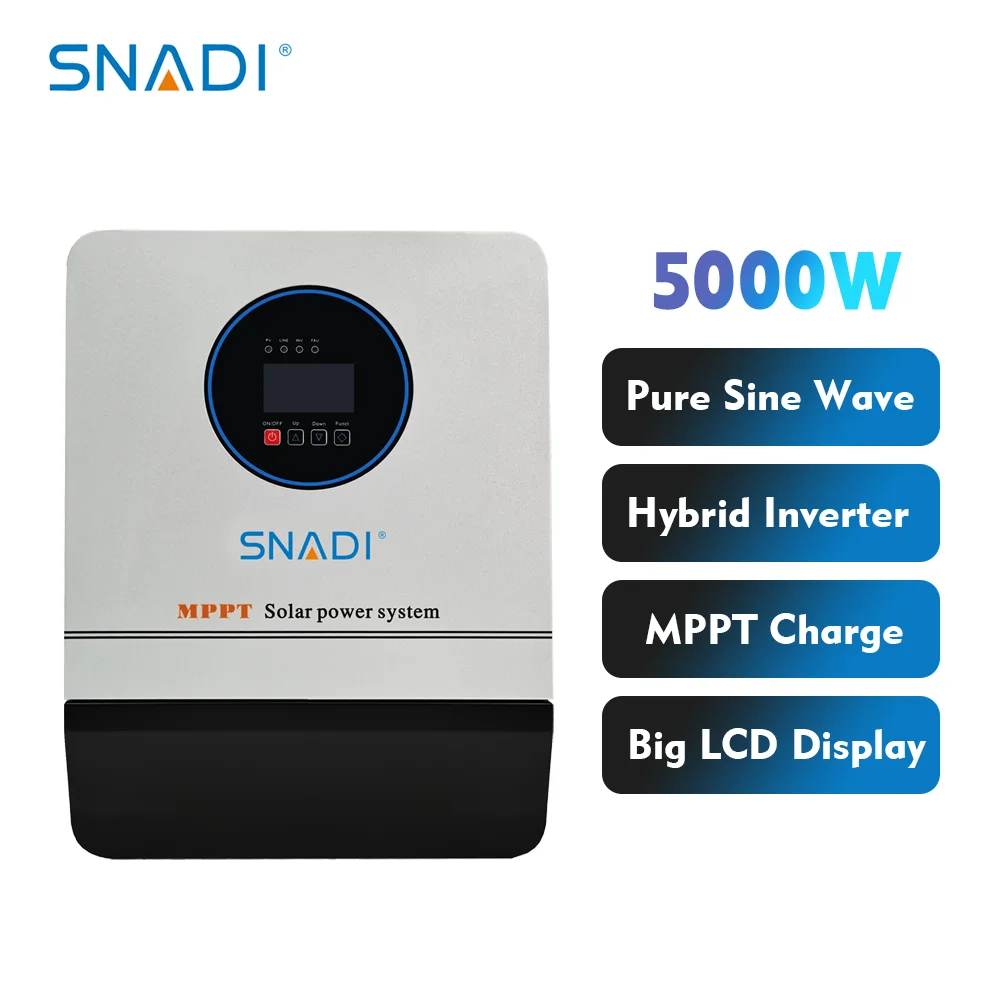

Model:NKM- | 1.5-6KW | |||||||||
Power Rating(w) | 300 | 700 | 1500 | 3000 | 5000 | |||||
500 | 1000 | 2000 | 4000 | 6000 | ||||||
Battery | ||||||||||
Rated Voltage(VDC) | 12/24 | 12/24/48 | 24/48 | 48 | ||||||
Charge Current | 10A MAX | 30A MAX | ||||||||

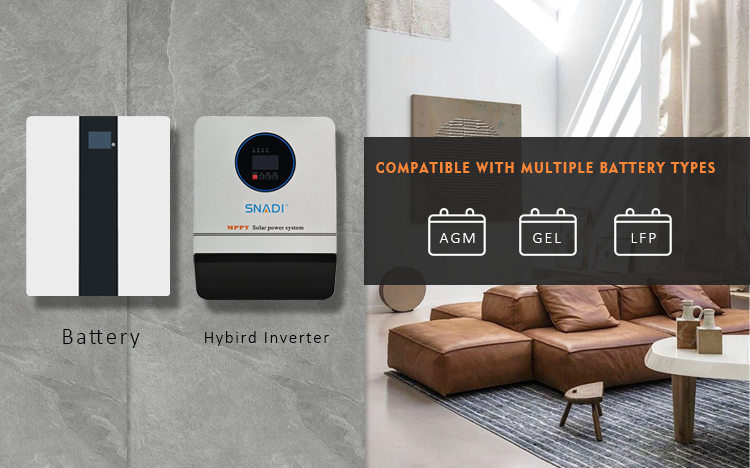

Battery Type | Can be set | |||||||||
Input Voltage Range | 73-138VAC/145-275VAC | 85-138VAC/170-275VAC | ||||||||
Output Overcharge | 110-120%/30S;>160%/300ms; | |||||||||

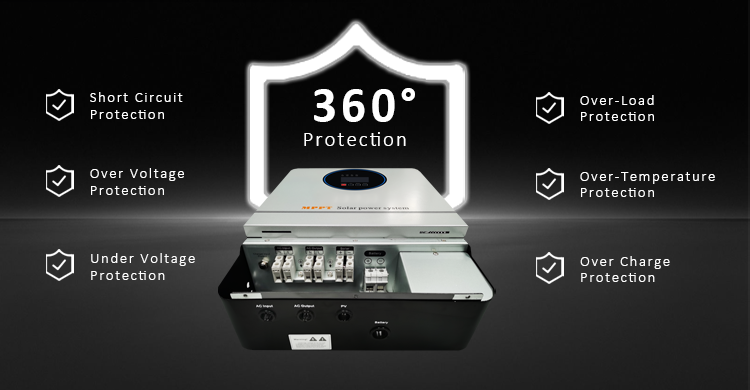

Protection Function | Battery over-voltage and low-voltage protection, overload protection, short circuit protection, over-temperature protectior | |||||||||
Solar Controller | ||||||||||
MPPT Voltage Range | 12VDC:15V-150VDC;24VDC:30V-150VDC:48VDC:60V ~150VDC | |||||||||
PV Power | 12VDC-30A(400W);24VDC-30A(800W) | 12VDC-60A(800W;24VDC-60A/1600W);48VDC-60A(3200W) | ||||||||
Rated Charge Current | 30A(Max) | 60A(Max) | ||||||||
MPPT Efficiency | ≥99% | |||||||||
Average Charging Voltage(lead acid battery) | 12V/14.2VDC;24V/28.4VDC;48V/56.8VDC | |||||||||
Floating Charge Voltage | 12V/13.75VDC;24V/27.5VDC;48V/55VDC | |||||||||
Operating Ambient Temperature | -15-+50°C | |||||||||
Storage Ambient Temperature | -20-+50℃ | |||||||||
Operating / storage Environment | 0-90% No Condensation | |||||||||
Dimensions:W*D*H(mm) | 420*321*125 | 545*461*170 | ||||||||
Packing size: W*D*H(mm) | 515*380*205 | 645*555*260 | ||||||||
Output Voltage Range | 110VAC/220VAC; +5%( Inverter mode) |
Output Frequency | 50/60Hz±1%( Inverter mode) |
Input Frequency | 45-65Hz |

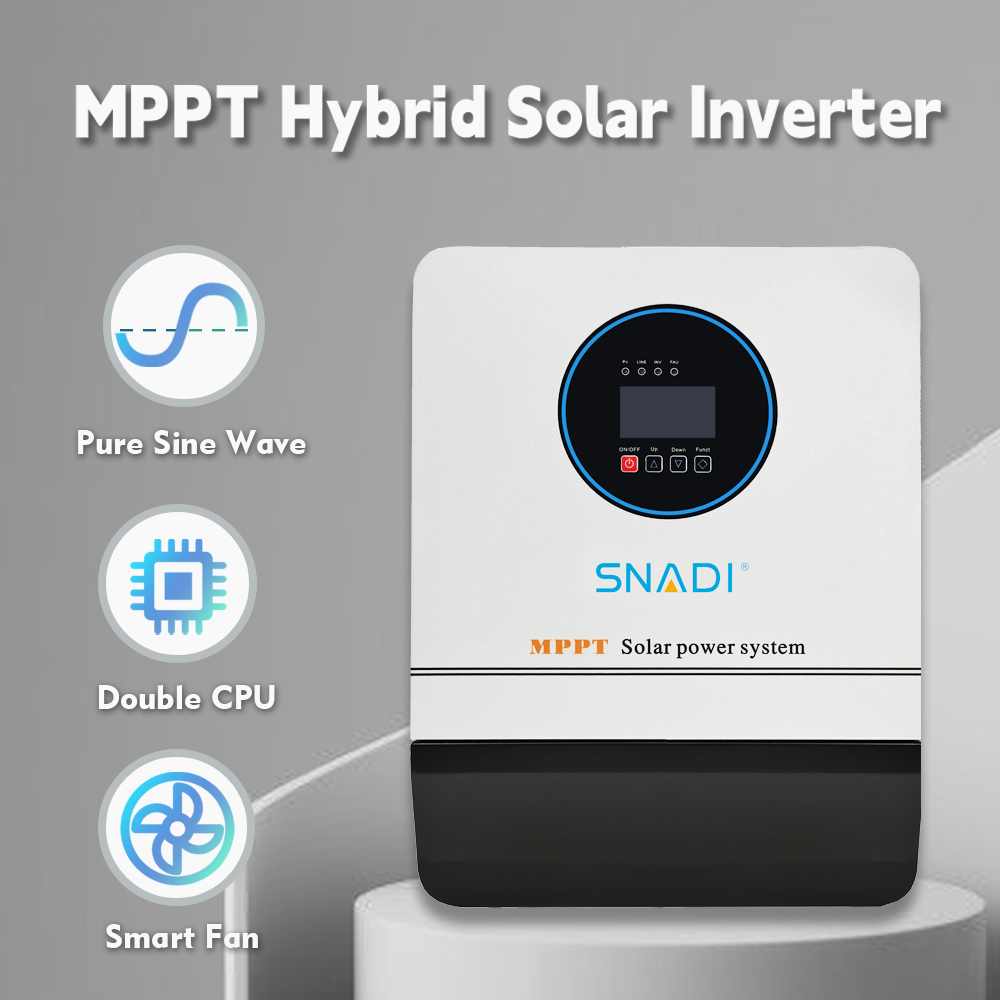

Output Wave | Pure Sine Wave |
MPPT Efficiency | ≥99% |
Output Frequency | >85%(80% Resistive load) |
Output Change Time | ＜10ms(Typical load) |
