Effortless Combination: The CBA54173113 module boasts a modular design that enables easy integration into low-speed vehicles, golf carts, energy storage cabinets, and numerous other battery-powered systems. This eliminates the need for complex customization, accelerating deployment timeframes and reducing overall costs.
Scalable Configuration: Recognizing the diverse needs of our customers, the standardization of spare parts allows for arbitrary combinations of numbers, ensuring that the CBA54173113 can adapt to specific usage scenarios with ease. Whether you require a compact solution or a larger-scale configuration, the CBA54173113 is ready to meet your demands.
Expansive Capacity: For applications requiring greater energy storage capacity, the CBA54173113 can be packed into a 1P16S configuration, significantly increasing its power output and energy density. This scalability ensures that your energy solution your operational needs.
Maintenance Convenience: The use of standardized spare parts not only simplifies the maintenance process but also reduces downtime and associated costs. With a readily available pool of compatible components, you can rest assured that any repairs or upgrades will be swift and efficient.
Cost-Effective: By leveraging standardized components, we're able to offer the CBA54173113 at a competitive price point, making it an economical choice and individuals alike.
| Item | parameter | ||

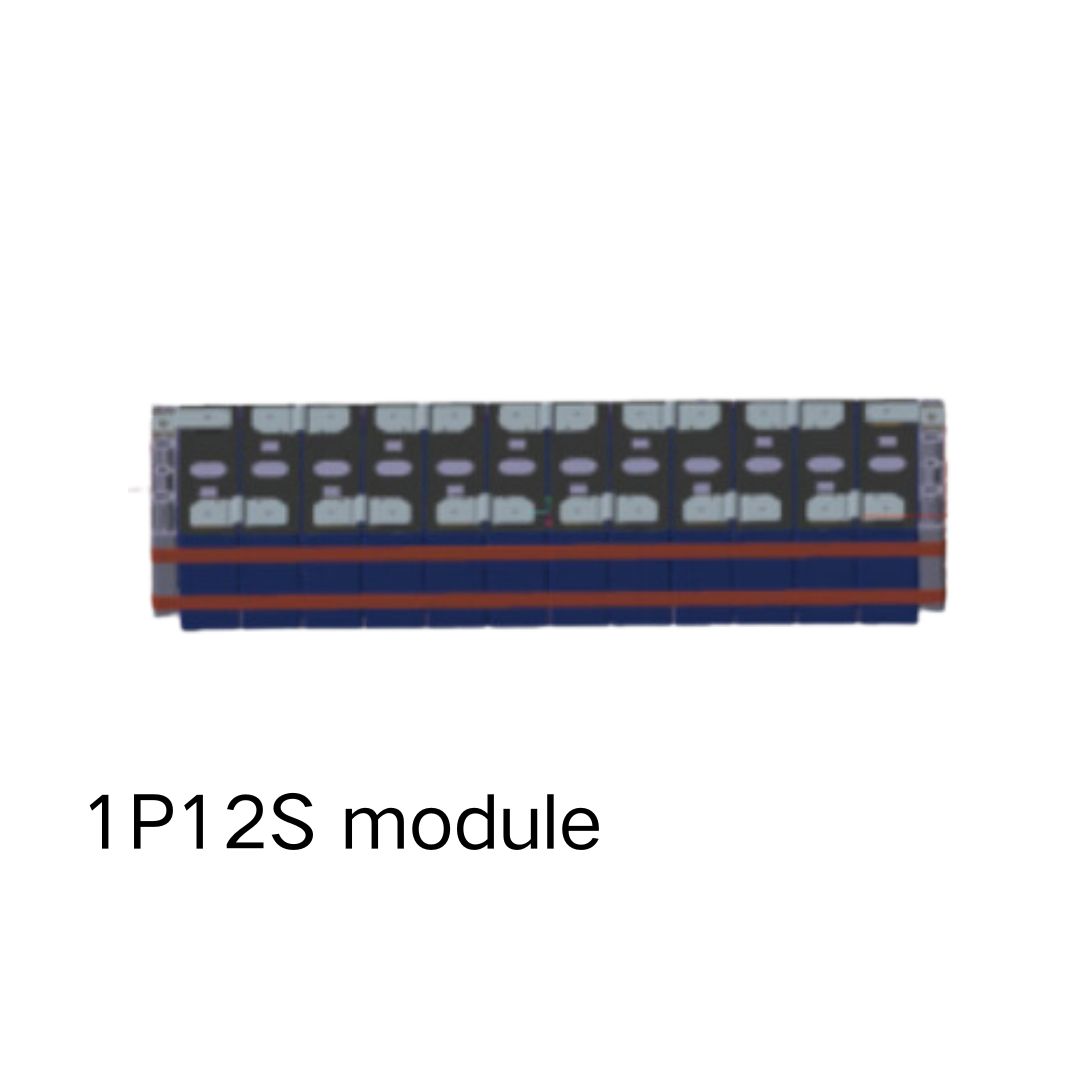

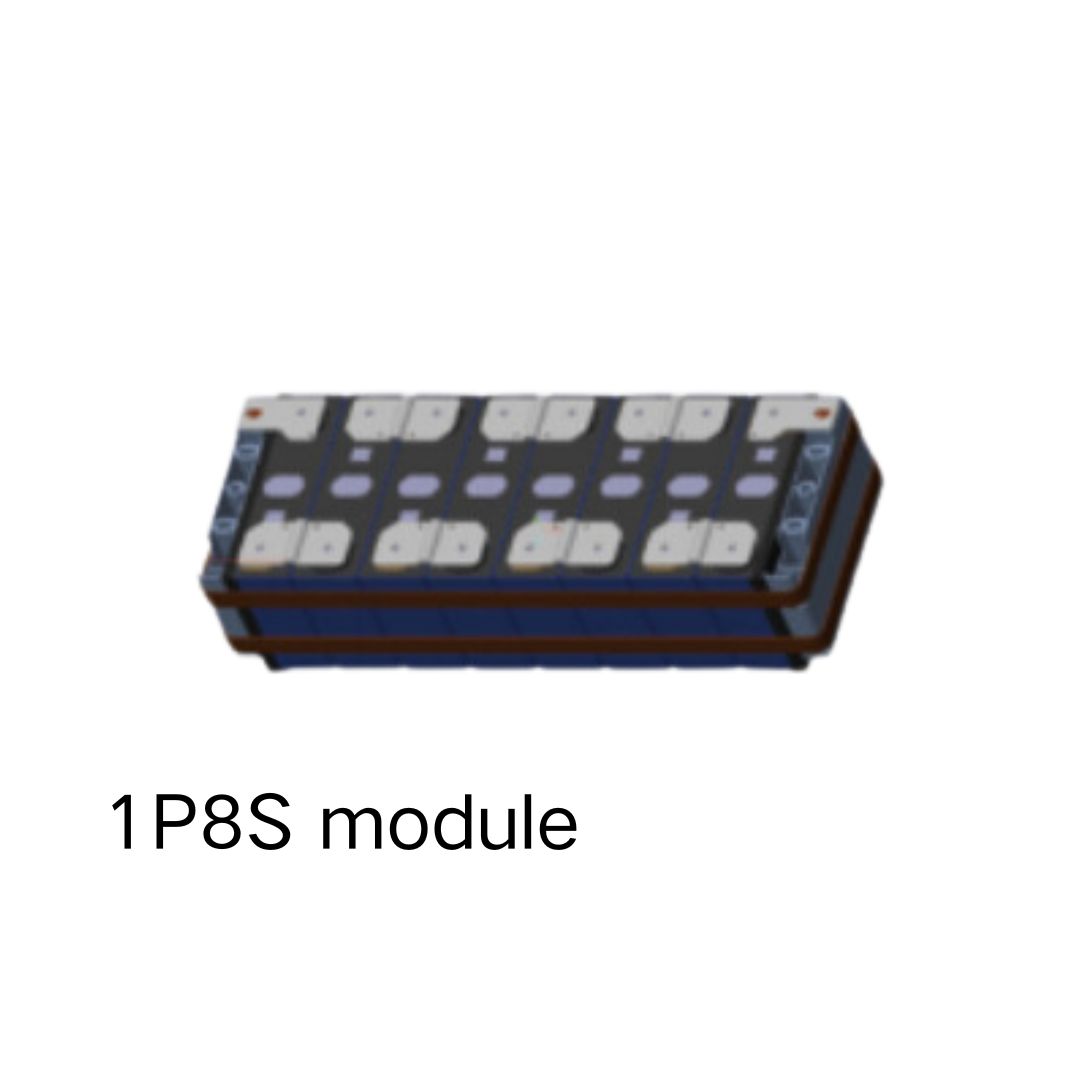

| standard module | Group mode | 1P8S module | 1P12S module |
| Rated voltage (V) | 25.6 | 38.4 | |
| Rated capacity (Ah) | 105 | 105 | |
| Module power (WH) | 2688 | 4032 | |
| Module weight (Kg) | 19.5±0.5 | 28±0.8 | |
| Module size (mm) | 482*175*122 | 700*175*122 | |
| Voltage range (V) | 20-29.2 | 30-43.8 | |
| Operating temperature range | Charging temperature: 0-55 ℃. Discharging lemperature:-20-60 ℃ |
||
| Note: the standard 1P8s / 1P12S module can be easily combined into low-speed car, golf cart, energystorage cabinet and other batterysystems, which are widely used: at the same time, the standardizationofspare parts can also meet the arbitrary combination of different number of strings, meet the specificuse scenarios of customers; the maximum PACK can be lPl6S. | |||
