One of the most notable strengths of the CBA54173200 Cell lies in its modular design, which allows for convenient combination into comprehensive battery systems. Ideal for forklifts, special vehicles, and other power-intensive equipment, this modularity ensures seamless integration into various platforms, streamlining maintenance and enhancing operational efficiency.
Understanding the importance of adaptability, the CBA54173200 Cell boasts standardized spare parts to a myriad of string number combinations. This standardization not only simplifies inventory management but also ensures that your system can be tailored to suit specific usage scenarios, minimizing downtime and maximizing uptime.
Recognizing that every application is unique, the CBA54173200 Cell is designed to meet customer-specific requirements. Whether you require a compact solution for narrow aisle forklifts or a more robust system for heavy-duty special vehicles, this module can be suit your exact needs. Moreover, its capability to be packed into 2P8S configurations for larger sizes further underscores its versatility and scalability.
Widely used across industries, the CBA54173200 Cell has established itself as a reliable and trusted component in battery systems. Its proven track record speaks volumes about its durability, performance consistency, and ability to withstand even the toughest operating conditions.
| Item | parameter | ||

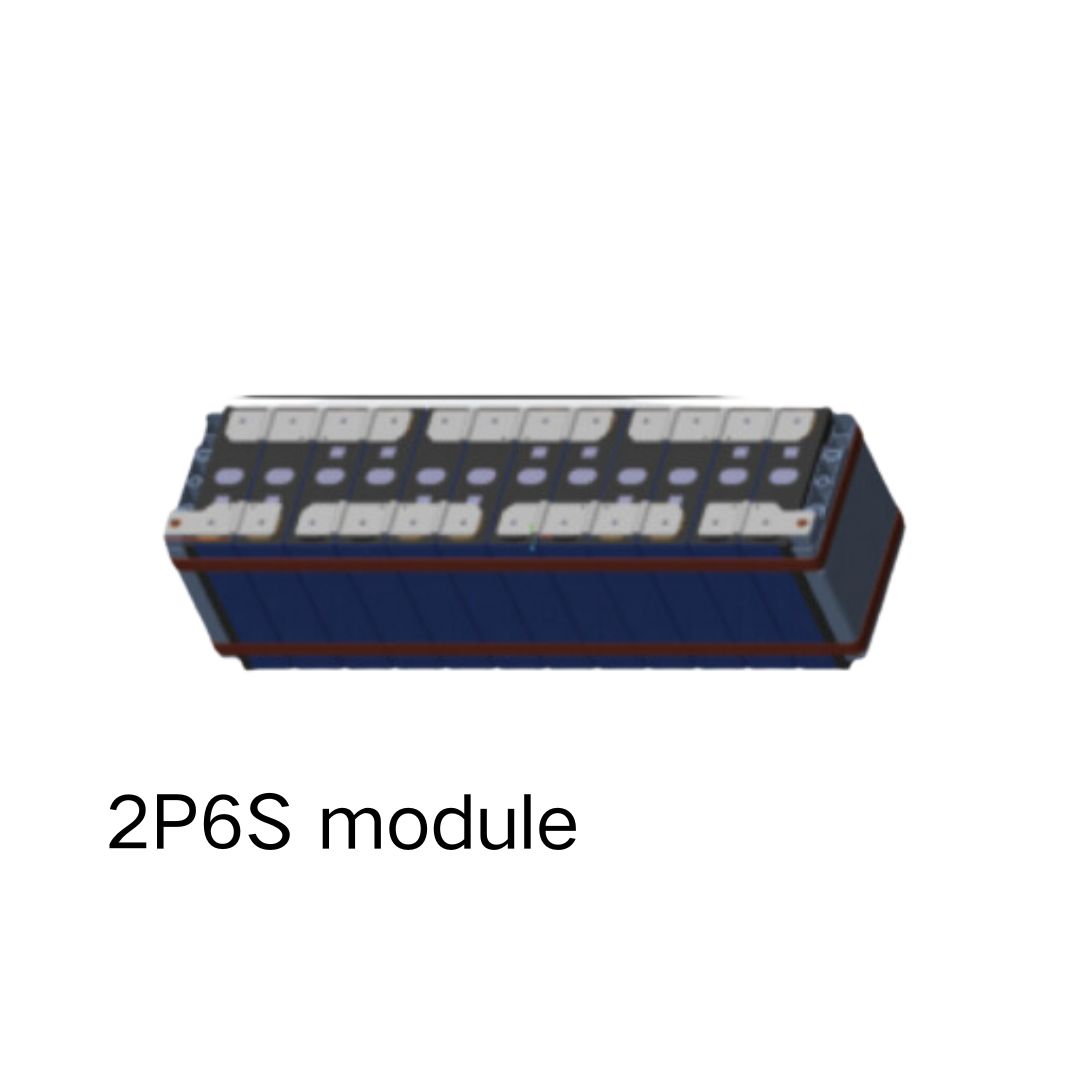

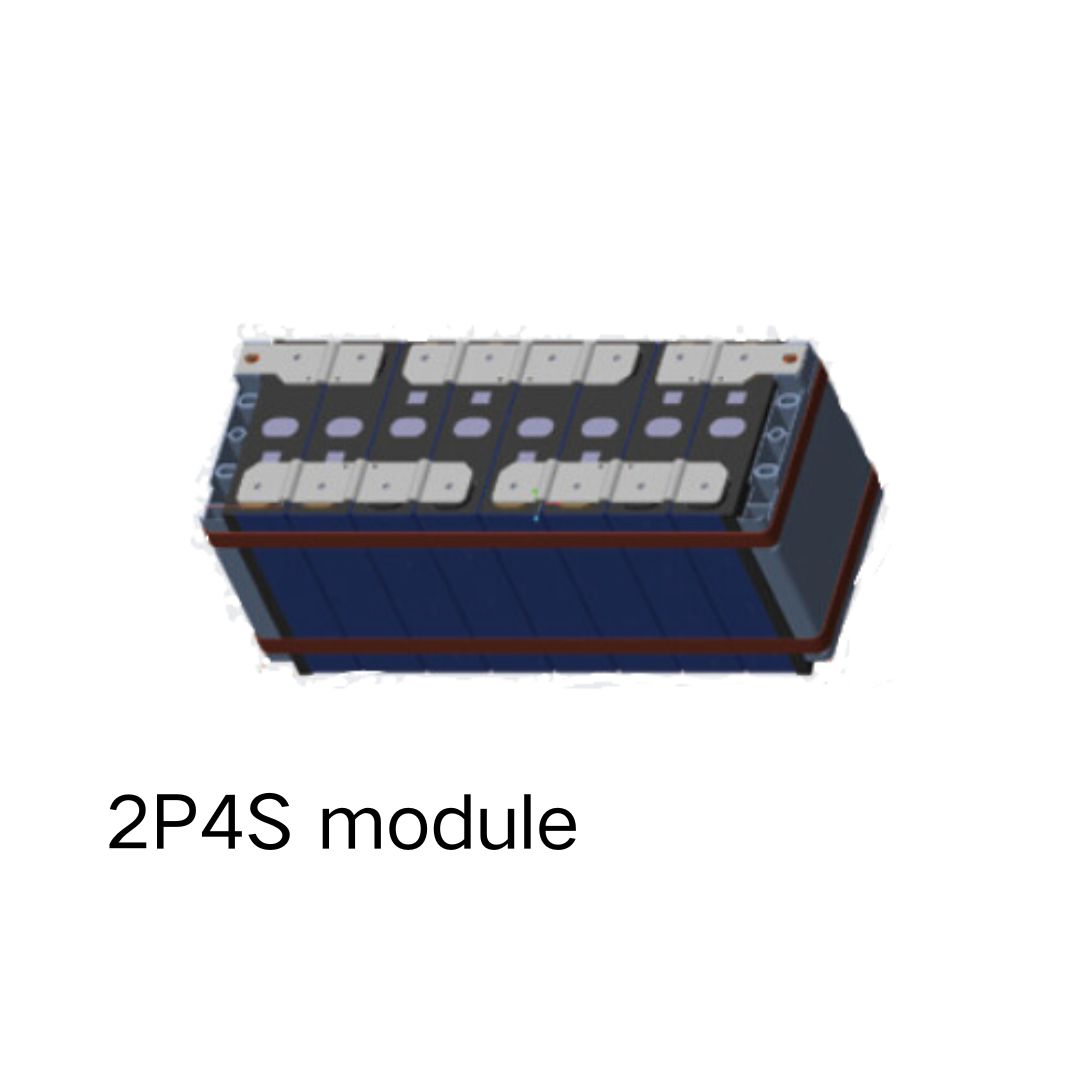

| standard module | Group mode | 2P4S module | 2P6Smodule |
| Rated voltage (V) | 12.8 | 19.2 | |
| Rated capacity (Ah) | 412 | 412 | |
| Module power (WH) | 5273.6 | 7910.4 | |
| Module weight (Kg) | 34.5士0.5 | 50+0.8 | |
| Module size (mm) | 482*175*212 | 700*175*212 | |
| Voltage range (V) | 10-14.6 | 15-21.9 | |
| Operating temperature range | Charging temperature:0-55°C Discharging temperature:-20-60°C |
||
| Note: the standard 2P4s / 2P6s module can be easily combined into forklift, special vehicle and otherbattery systems, which is widely used; at the same time, the standardization of spare parts can alsomeet the arbitrary combination of different number of strings, meet the specific use scenarios ofcustomers: the maximum PACK can be2P8S. | |||
