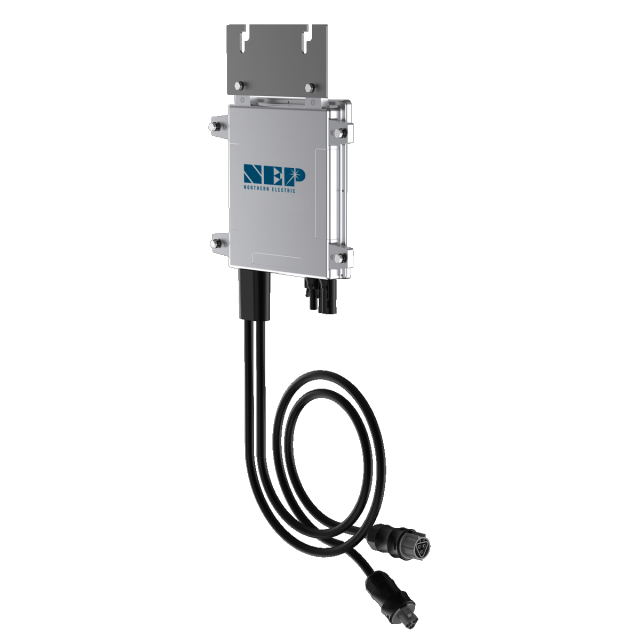

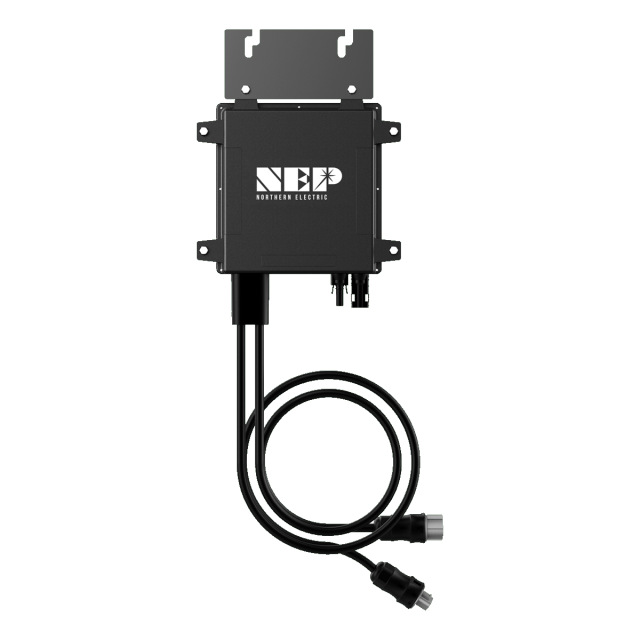

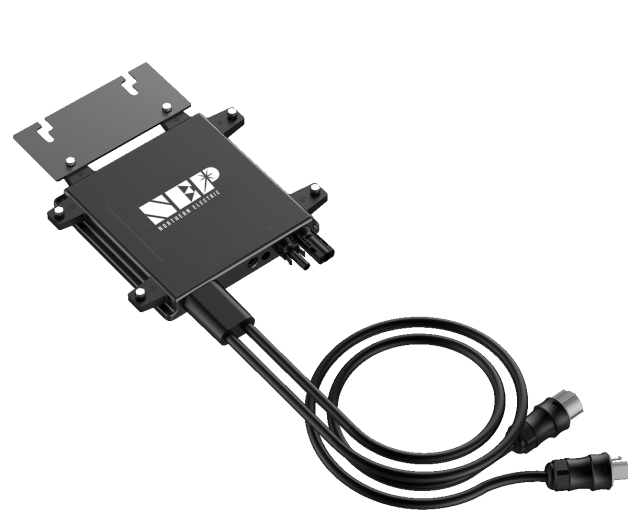

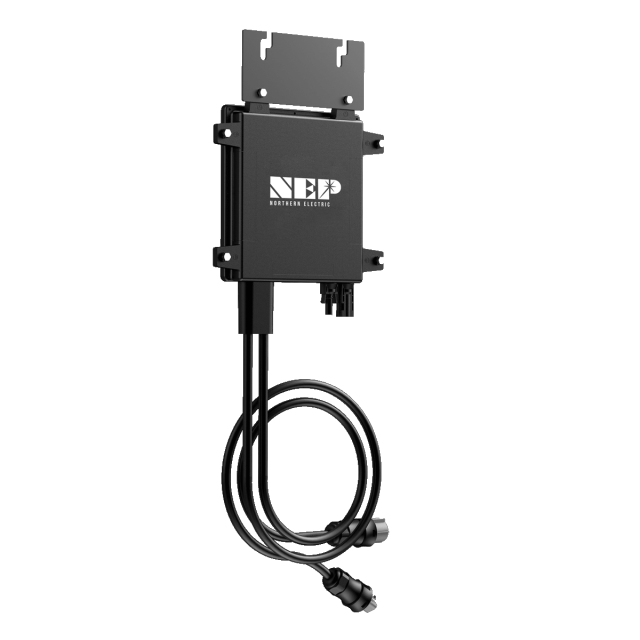

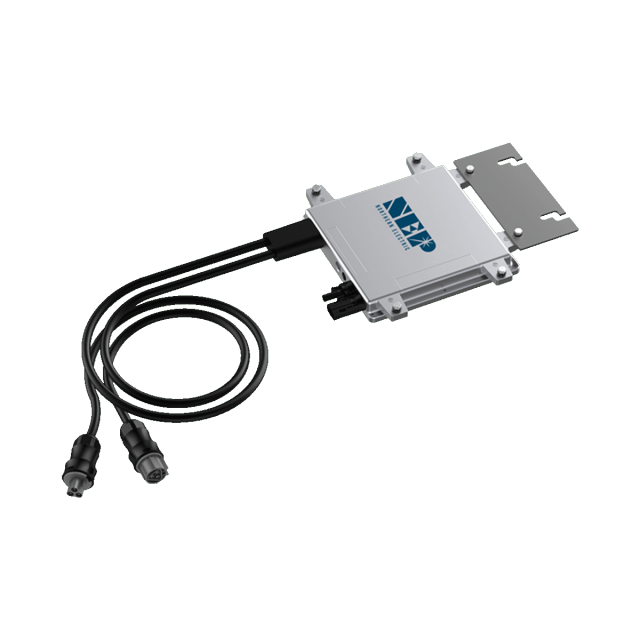

Qualified equipmentthat meets the Hawaiian Electric TROV-2 and full frequency and travel voltage The BDM 300 offers cable options including conventional trunkcable and daisy chain. It is the thinnest microinverter in the world at just 0.98” thick.
This model has a high continuous output power of up to 300w AC, recommended for photovoltaic modules of 450W maximum and fully complies with the NEC 2014/2017 section 690. 12 requirements for fast shutdown. No additional equipment required.
Simple to install, the Microinverter is placed in the same structure as the solar panels and the cable connections are made through its own connectors.
High efficiency and excellent profit with maximum conversion efficiency of up to 95.5%. With BDM 300 you take full advantage of the power of solar energy with MPPT technology.?
| Model | BDM 300 |
|---|---|
| Input DC | |
| Recommended Max PV Power (Wp) | 450 |
| Max DC Open Circuit Voltage (Vdc) | 60 |
| Max DC Input Current (Adc) | 14 |
| MPPT Tracking Accuracy | >99.5% |
| MPPT Tracking Range (Vdc) | 22-55 |
| Isc PV (absolute maximum) (Adc) | 18 |
| Maximum Inverter Backfeed Current to the Array (Adc) | 0 |
| Output AC | |
| Peak AC Output Power (Wp) | 300 |
| Rated AC Output Power (Wp) | 250 |
| Nominal Power Grid Voltage (Vac) | 240 / 208 / 230 |
| Allowable Power Grid Voltage (Vac) | 211V-264* / 183V-229* / configurable* |
| Allowable Power Grid Frequency (Hz) | 59.3 a 60.5* / configurable* |
| THD | <3% (at rated power) |
| Power Factor (cos phi, fixed) | >0.99 (at rated power) |
| Rated Output Current (Aac) | 1.04 / 1.2 / 1.09 |
| Current (inrush)(Peak and Duration) | 12A, 15us |
| Nominal Frequency (Hz) | 60 / 50 |
| Maximum Output Fault Current (Aac) | 2.2A peak |
| Maximum Output Overcurrent Protection (Aac) | 6.3 |
| Maximum Number of Units Per Branch (20A) (All NEC adjustment factors have been considered) | 15 / 13 / 14 |
| Syistem efficiency | |
| Weighted Averaged Efficiency (CEC) | 95.50% |
| Night Time Tare Loss (Wp) | 0.08 / 0.06 / 0.07 |
| Protection functions | |
| Over/Under Voltage Protection | Yes |
| Over/Under Frequency Protection | Yes |
| Anti-Islanding Protection | Yes |
| Over Current Protection | Yes |
| Reverse DC Polarity Protection | Yes |
| Overload Protection | Yes |
| Protection Degree | NEMA-6 / IP-66 / IP-67 |
| Ambient Temperature | -40°F to +149°F (-40°C to +65°C) |
| Operating Temperature | -40°F to +185°F (-40°C to +85°C) |
| Display | LED LIGHT |
| Communications | Power Line |
| Dimension (W-H-D) | 7.09” x 7.32” x 0.98” |
| Weight | 3.3 lbs |
| Environment Category | Indoor and outdoor |
| Wet Location | Suitable |
| Pollution Degree | PD 3 |
| Overvoltage Category | II(PV), III (AC MAINS) |
| Product Safety Compliance | UL 1741 CSA C22.2 No. 107.1IEC/EN 62109-1 IEC/EN 62109-2 |
| Grid Code Compliance* (Refer to the label for the detailed grid code comliance) | IEEE 1547 VDE-AR-N 4105* VDE V 0126-1-1/A1 G83/2, CEI 021 AS 4777.2 & AS 4777.3,EN50438 |
