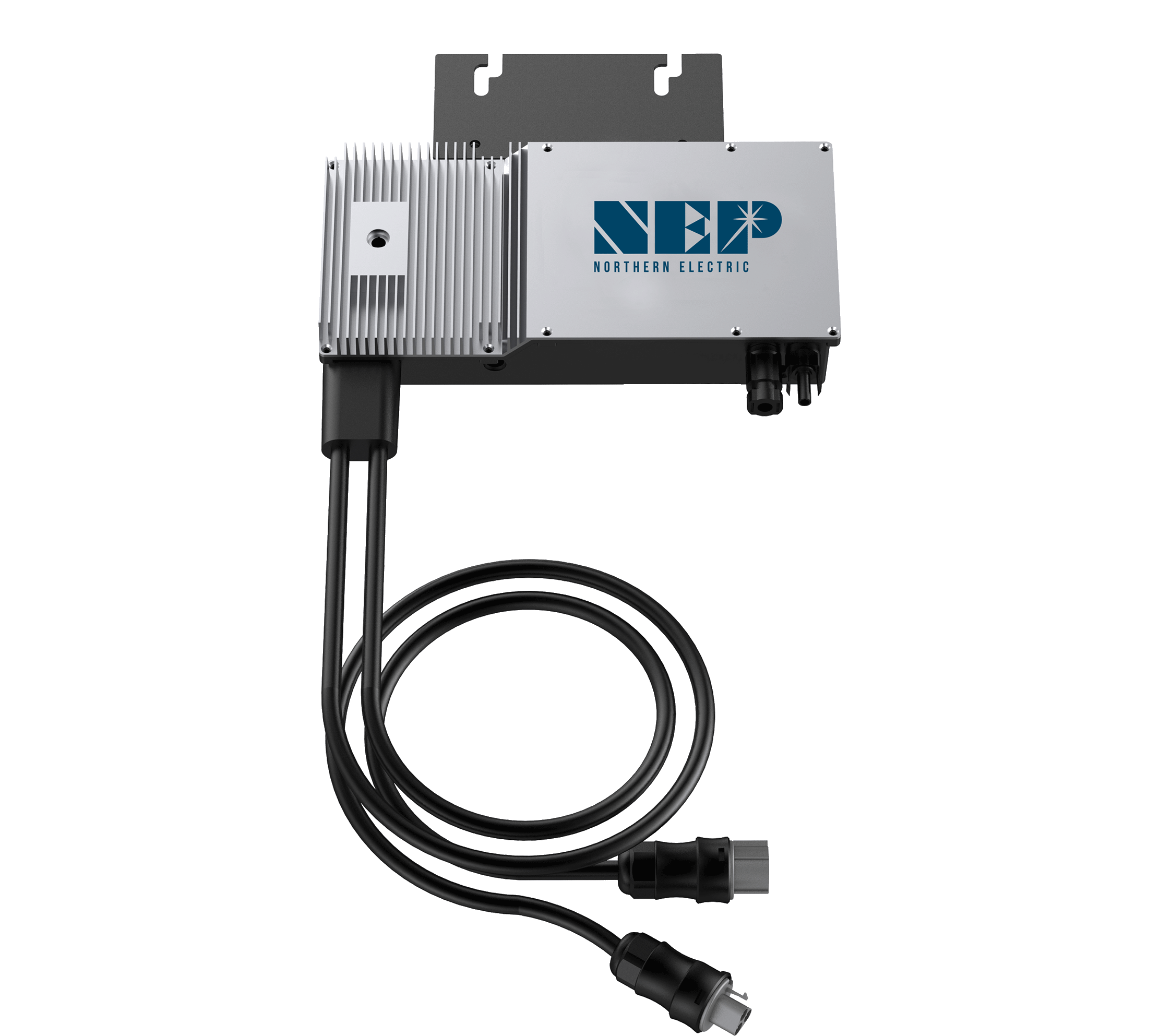

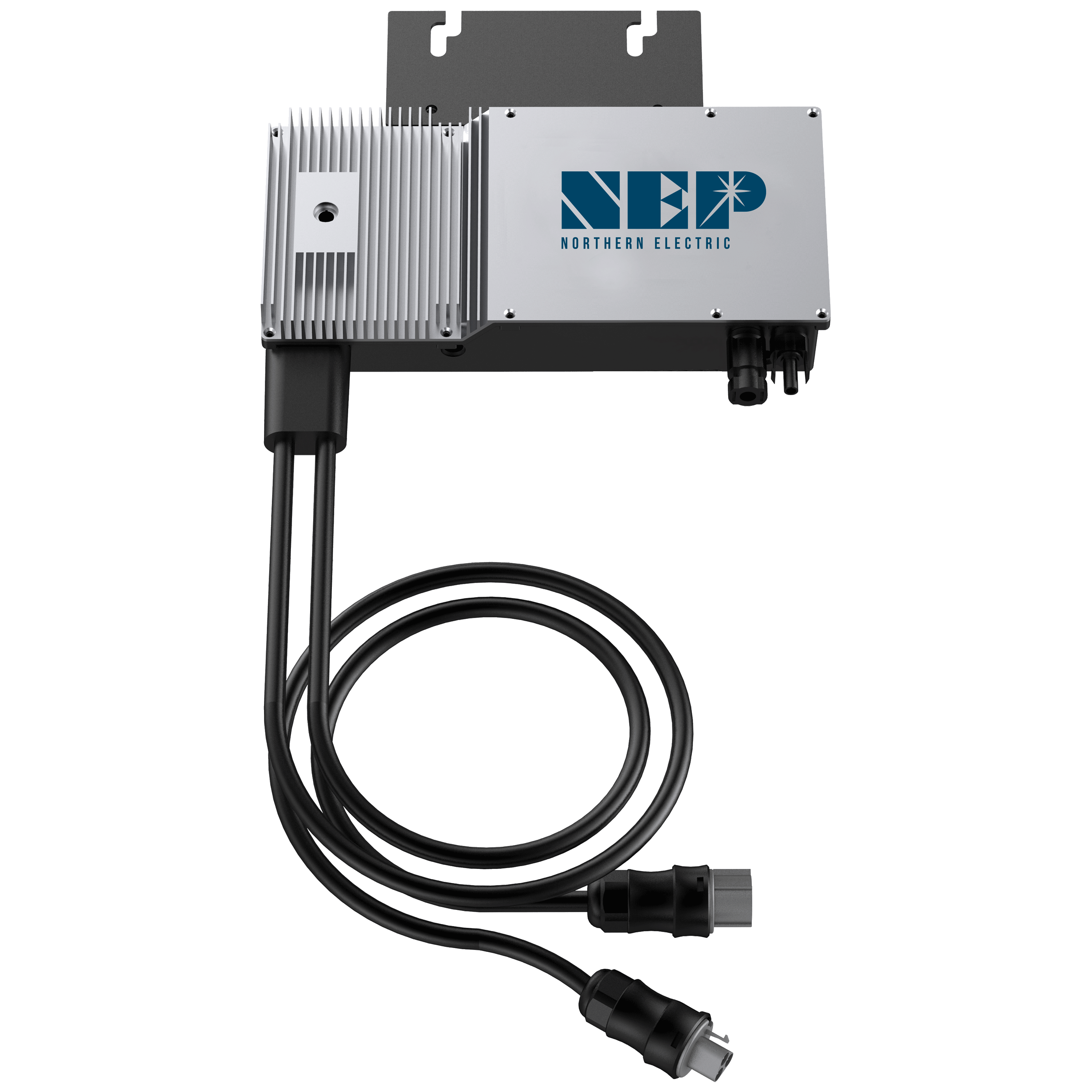

The BDM-500is a macro-inverter designed to generate more energy at a low cost and with an efficiency of 95%. It has an integrated monitor and power line communication with BDG-256 gateway . It can be connected to the BDM-300, BDM-250, and BDM-300×2. This macro-inverter is globally certified for Rule 21, UL1741, TUV, NEMA-6/IP-66/IP-67 enclosure rating.
Innovation is the most effective way to create impact, which is why at NEP, with 10 years of experience, we want to continue to revolutionize and contribute to the care of the environment.
| Model | BDM 500 |
|---|---|
| Input DC | |
| Recommended Max PV Power (Wp) | 750 |
| Recommended Max DC Open Circuit Voltage (Vdc) | 60 |
| Max DC Input Current (Adc) | 25 |
| MPPT Tracking Accuracy | >99.5% |
| MPPT Tracking Range (Vdc) | 22-55 |
| Isc PV (absolute maximum) (Adc) | 25 |
| Maximum Inverter Backfeed Current to the Array (Adc) | 0 |
| Output AC | |
| Maximum Power (Pmax ac) | 550 |
| Rated AC Output Power (Wp ac) | 500 |
| Nominal Power Grid Voltage (Vac) | 240 / 208 / 230 |
| Allowable Power Grid Voltage (Vac) | 211V-264* / 183V-229* / 180-270* |
| Allowable Power Grid Frequency (Hz) | 59.3 a 60.5* |
| THD | <3% (at rated power) |
| Power Factor (cos phi, fixed) | >0.99 (at rated power) |
| Rated Output Current (Aac) | 2 / 2.40 / 2.17 |
| Current (inrush)(Peak and Duration) | 24A, 15us |
| Nominal Frequency (Hz) | 60 / 50 |
| Maximum Output Fault Current (Aac) | 4.4A peak |
| Maximum Output Overcurrent Protection (Aac) | 10 |
| Maximum Number of Units Per Branch (20A) (All NEC adjustment factors have been considered) | 8 / 6 / 7 |
| Syistem efficiency | |
| Weighted Averaged Efficiency (CEC) | 95.50% |
| Night Time Tare Loss (Wp) | 0.11 |
| Protection functions | |
| Over/Under Voltage Protection | Yes |
| Over/Under Frequency Protection | Yes |
| Anti-Islanding Protection | Yes |
| Over Current Protection | Yes |
| Reverse DC Polarity Protection | Yes |
| Overload Protection | Yes |
| Protection Degree | NEMA-6 / IP-66 / IP-67 |
| Ambient Temperature | -40°F to +149°F (-40°C to +65°C) |
| Operating Temperature | -40°F to +185°F (-40°C to +85°C) |
| Display | LED LIGHT |
| Communications | Power Line |
| Dimension (W-H-D) | 10.91” * 5.20” * 1.97” |
| Weight | 6.4 Ibs. (2.90 kg) |
| Environment Category | Indoor and outdoor |
| Wet Location | Suitable |
| Pollution Degree | PD 3 |
| Overvoltage Category | II(PV), III (AC MAINS) |
| Product Safety Compliance | UL 1741 IEC/EN 62109-1 |
| Grid Code Compliance* (Refer to the label for the detailed grid code comliance) | IEEE 1547 / VDE-AR-N 4105* VDE V 0126-1-1/A1 G83/2, CEI 021 AS 4777.2 & AS 4777.3,EN50438 |
