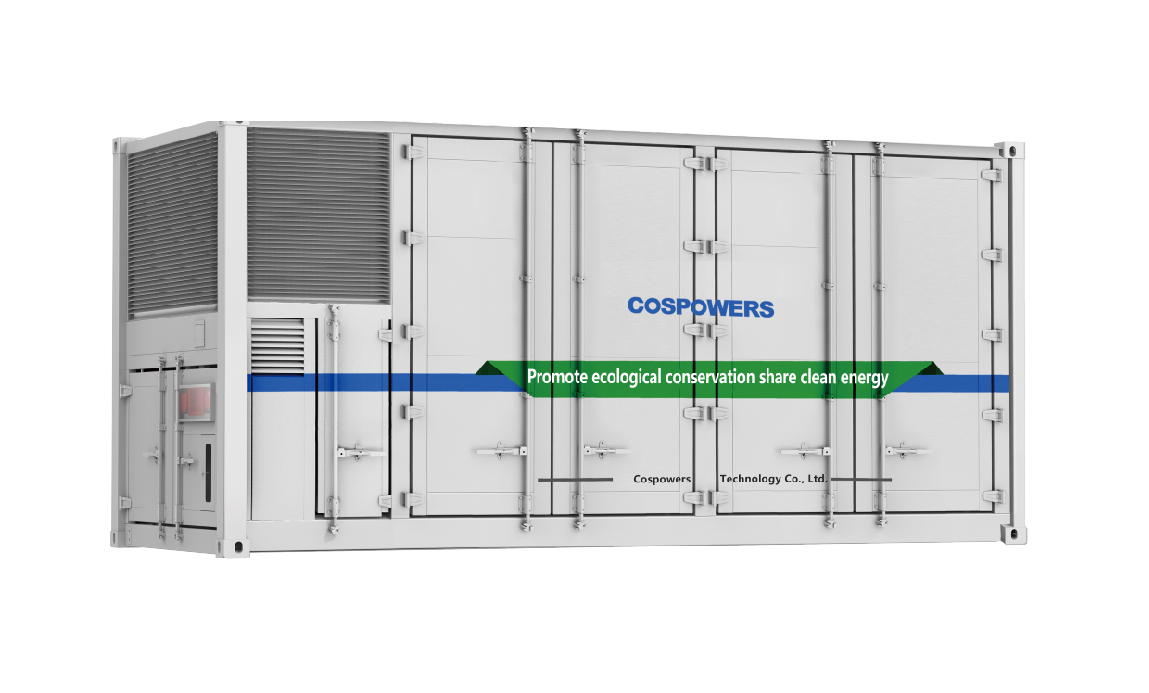

| Parameters/Model | Celestial Energy-3340-0.5C | |
| DC side parameters | Cell Capacity | 314Ah(LFP) |
| Module Structure | 1P52S | |
| Module quantity in single cluster | 8pcs | |
| Nos.of Battery Clusters | 8pcs | |
| Battery system power | 3340kWh | |
| Voltage Range | 1164.8~1476.8V | |
| AC side parameters | Rated grid voltage | 8*200kW |
| Wiring Mode | AC690V | |
| Rated grid frequency | 3W+PE | |
| Rated ACpower | 50/60Hz | |
| solation mode | No isolation transformer | |
| System level parameters | Operating temperature | -30~55℃ |
| Ambient Humidity | 0~95%(no condensation) | |
| Working Altitude | 2000m | |
| Communication method | Ethernet,RS485,Optional 4G/5G Mobile Communication | |
| Protection level | IP54 | |
| Cooling Method | Liquid cooling | |
| Noise | ≤75dB | |
| Fire protection system | Heptafluoropropane/Perfluorohexanone compartment level/Aerosol ten water fire protection+ combustible gas detection+explosion-proof ventilation system | |
| Size(W*D*H) | 6058*2438*2896mm | |
| Weight | 30t | |
Compliant with Standards | Cluster | IEC62619、UL1973、UL9540A、UN38.3 |
| PCS | UL1741、 EN50549 、VDE4110 、VDE4120 、VDE4130 、GB/T34120、GB/T36547 | |
