Cheapest Industrial 5 Kw 10Kw 15 Kw 40Kw 50Kw Rv Solar Panel Ground Mounting Hybrid Energy System Module for Home Roof Price

Sunnal Solar Energy Co., Ltd.

Jiangsu China

Summary

No.1601047628047

$0.50

Specifications

System Type:

Off-Grid Solar System

Solar Power (W):

1kW

3KW

5KW

6kw

8kw

10KW

20KW

25KW

30kw

INQUIRY

Description Download

Key attributes

Solar Panel Type

Monocrystalline Silicon

Controller Type

MPPT

Free installation service

Yes

Place of Origin

Jiangsu, China

Load Power (W)

3KW, 50KW, 30kw, 8kw, 6kw, 20KW, 5KW, 10KW

Pre-sales project design

Brand Name

SUNNAL

Model Number

SNA-hybrid-3

Application

Home,Commercial,Industrial,Outdoor

Battery Type

Lead-Acid, Lithium Ion

Mounting Type

Ground Mounting,Roof Mounting,Carport Mounting,BIPV Mounting

Output Voltage (V)

EU: 230/380V US: 120/240V

Output Frequency

50/60HZ

Work Time (h)

24hours/day

Product name

5Kw 10Kw 15Kw 40Kw 50Kw hybrid off grid solar energy powered system

Solar panel

Monocrystalline 400-700W

System Type

Off-grid Solar Power Generation

Function

Generate Electricity

Inverter

Single Phase/Split Phase/3Phase

Protection

Overloads

Controller

PWM MPPT Controller (Optional)

Battery

Gel/Lead Acid/Lithium/Lifepo4

Mounting Structure

Roof Customzied

Battery Capacity

1KWH~100KWH/Customized

Packaging and delivery

Selling Units

Single item

Single package size

250X140X80 cm

Single gross weight

68.000 KG

Product descriptions from the supplier

Warning/Disclaimer

This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.View more

Specification

For more configurations, please Click Chat Now.Contact our sales
Model	SNA-3KW	SNA-5KW-HY	SNA-10KW-HY
Half Cut Mono 550W Solar Panel	6 Pieces	10 Pieces	20 Pieces
DC Disconnect Switch	1 Piece	2 Piece	3 Pieces
Hybrid Inverter	Deye,Growatt,or others Brand	Deye,Growatt,or others Brand	Deye,Growatt,or others Brand
Wall Mounted LiFePo4 Battery	5Kwh	5Kwh	10Kwh
DC Cable 4mm2	100 meter	200 meter	400 meter
AC Disconnect Switch	1 Piece	1 Piece	1 Piece
MC4 Connector	10 Pairs	10 Pairs	10 Pairs
Mounting System	Customized Product Based On Installation Roof/Ground

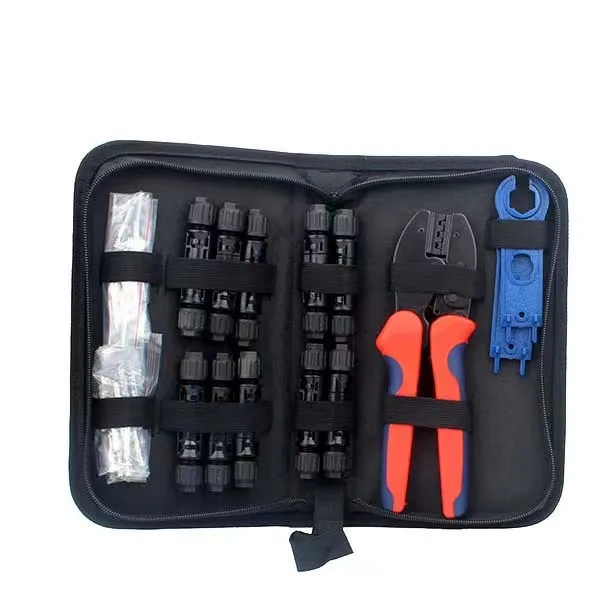

PV Installation Tools	1 Set

Model	SNA-15KW-HY	SNA-20KW-HY	SNA-30KW-HY
Half Cut Mono 550W Solar Panel	30 Pieces	42 Pieces	63 Pieces
DC Disconnect Switch	4 Piece	6 Piece	9 Pieces
Hybrid Inverter	Deye,Growatt,or others Brand	Deye,Growatt,or others Brand	Deye,Growatt,or others Brand
Wall Mounted LiFePo4 Battery	15Kwh	20Kwh	30Kwh
DC Cable 4mm2	600 meter	800 meter	1000 meter
Mounting System	Customized Product Based On Installation Roof/Ground
PV Installation Tools	1 Set

Product Description

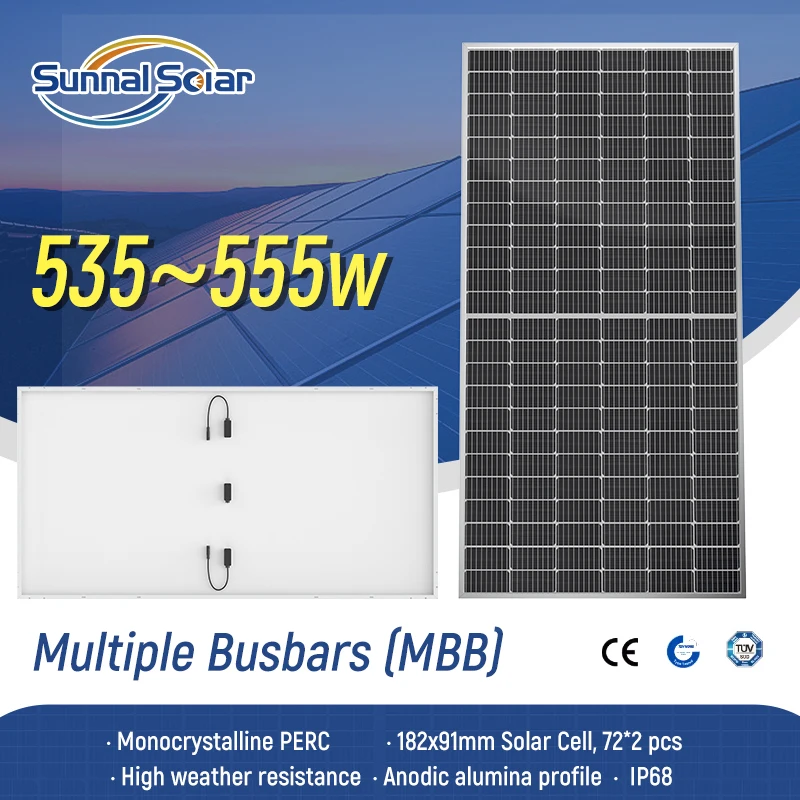

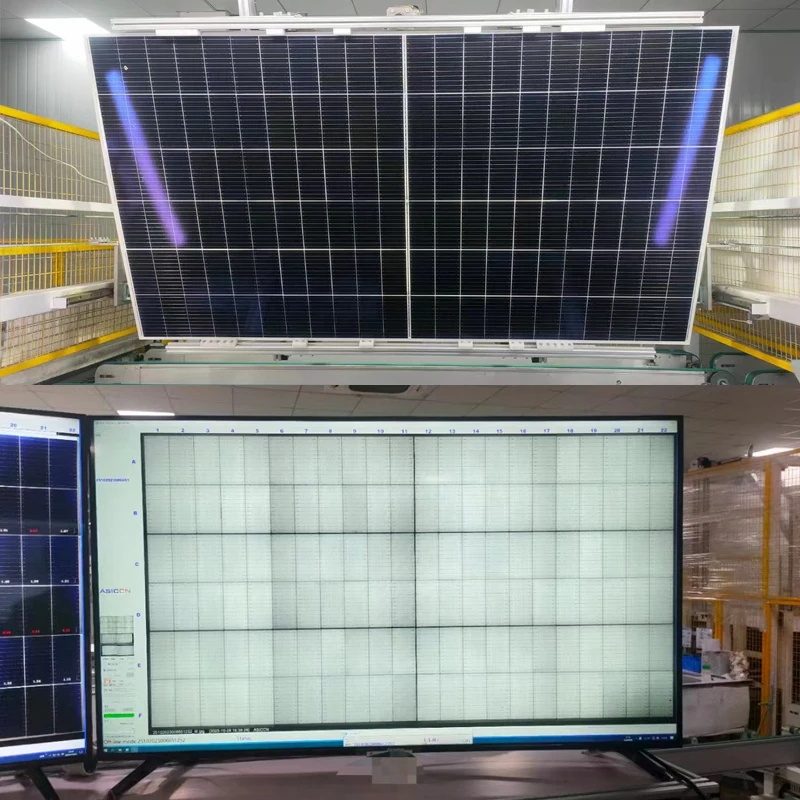

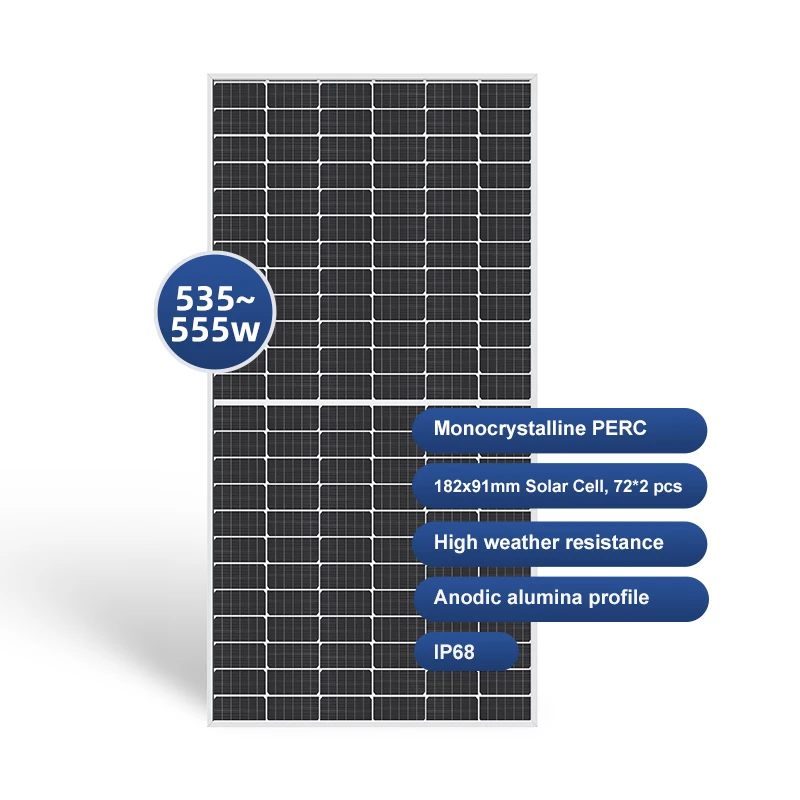

Half Cut Mono 550W Solar Panel

Peak Power Watts: 550W
Maximum Power Voltage: 42.06V Maximum Power Current: 12.84A Open Circuit Voltage: 49.75V Short Circuit Current: 13.63A
Dimensions:2279x1134x35mm Weight:26.9 kg

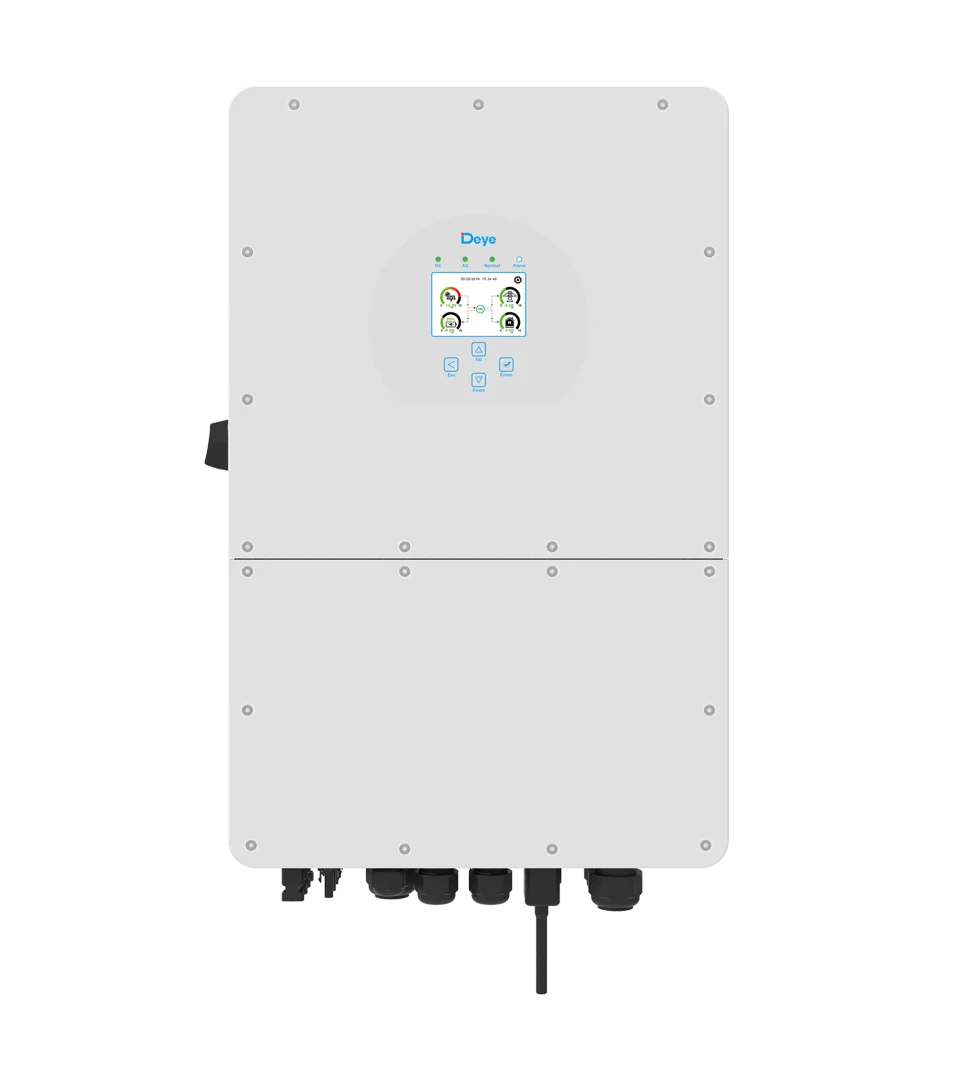

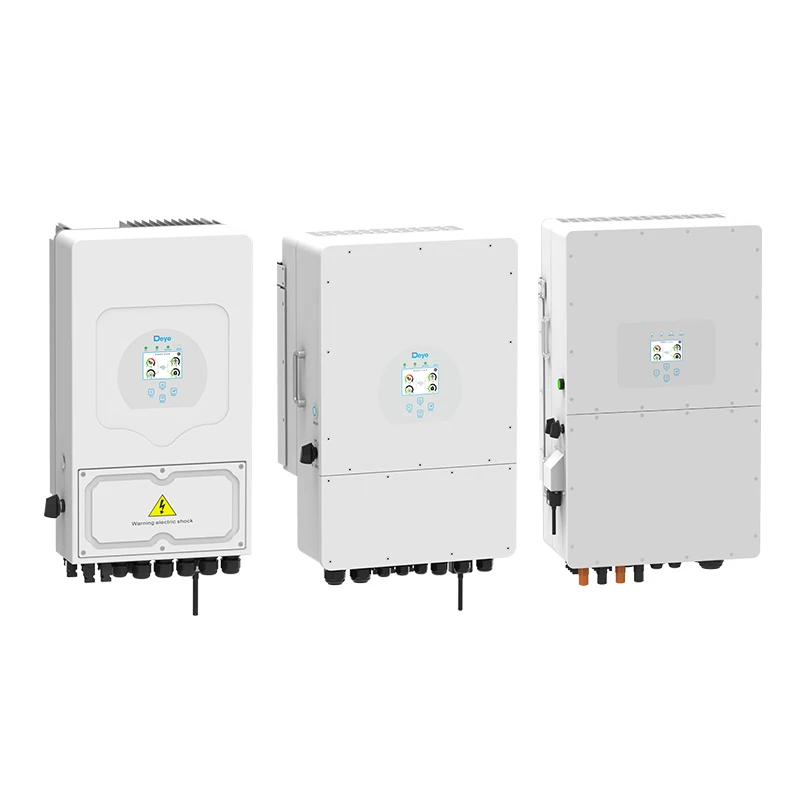

Hybrid Solar Inverter

48V low voltage battery, transformer isolation design. 6 time periods for battery charging and discharging.
Max.charging/discharging current of 240A Max.10pcs parallel
DC couple and AC couple to retrofit existing solar system

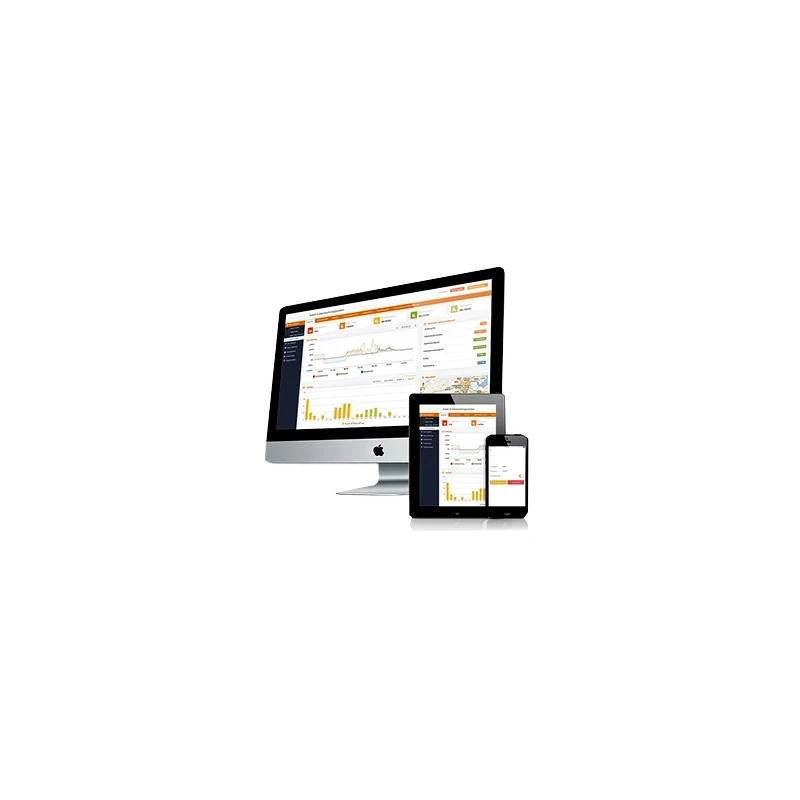

Monitoring System

Open station supports one-click installation and registration Problem support one-click dispatch and navigation
Safe operation, traceable logs, etc
Support full lifecycle data storage to ensure data security and reliability

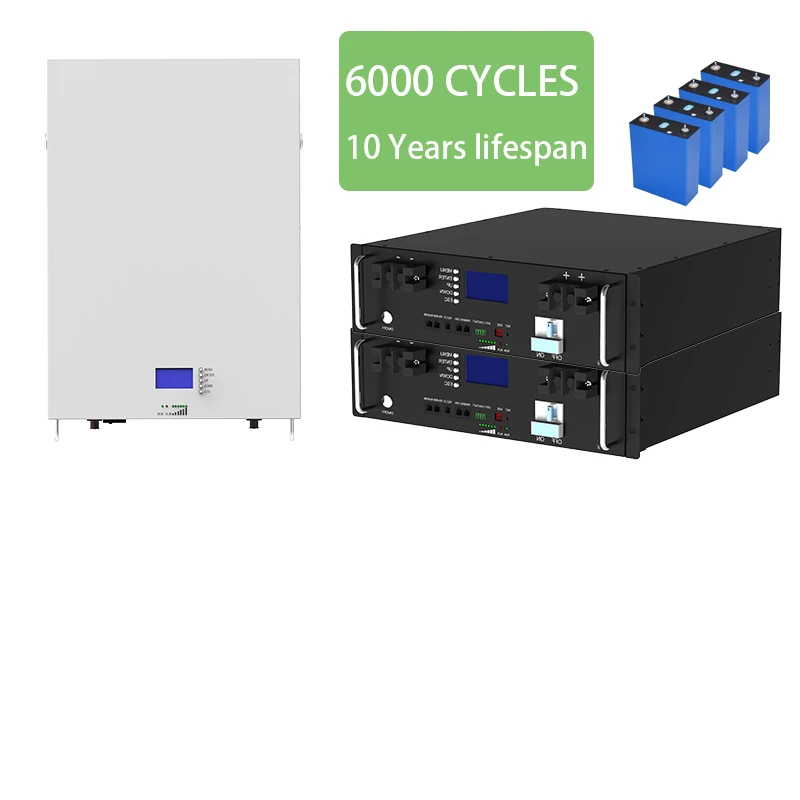

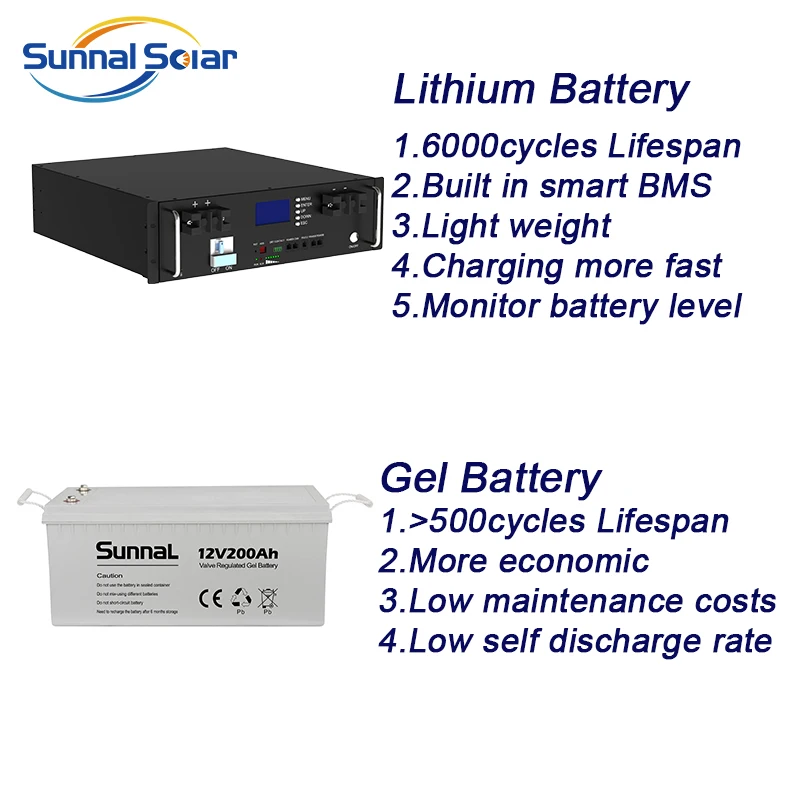

LiFePo4 Lithium Storage Battery

15-20 years design life. Up to 6000 + cycle Ilfe
Wall mount or ground stack brick, simply connecting to inverter Battery module is scalable for any larger storage system.
Battery modular built in high quality BMS. Protect battery cells all the way.
Lithium iron phosphate battery cell, stay safe with battery storage at home.

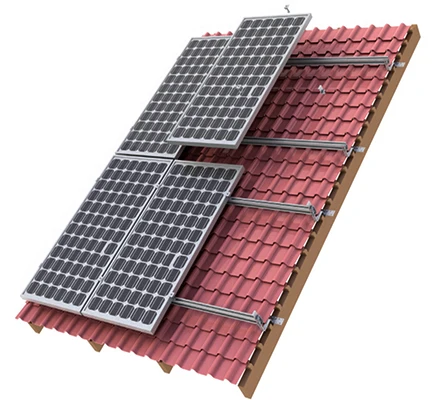

PV Mounting System

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.Galvanized Bracket optional
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional

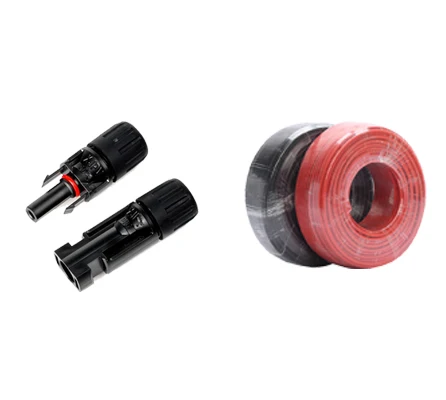

DC Cable & MC4 Connector

Cross Section: 4mm2, 6mm2 OptionalRated Voltage:600VDC/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
