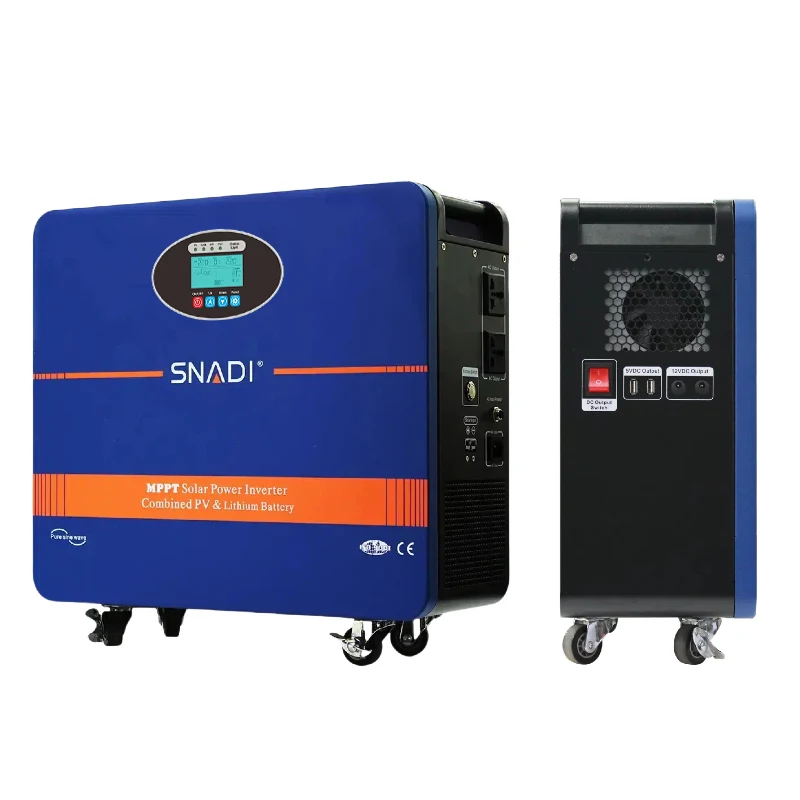

Solar Power Generator | 0.6Kwh | 1.2Kwh | 2.2Kwh | 3.5Kwh | 5Kwh | |||||
Inverter | Battery Voltage | 12.8V | 25.6V | |||||||
In-built Battery Specification | 50AH/12.8V | 50AH/25.6V | 100AH/25.6V | 75AH/51.2V | 100AH/51.2V | |||||
Rated Power | 600W | 1200W | 2200W | 3500W | 5000W | |||||
Output Voltage | 110/220VAC | |||||||||
Output Frequency | 50/60Hz | |||||||||
Output Waveform | Pure Sine Wave | |||||||||
Input Voltage Range | 72-138/145-275VAC | 85-138/170-275VAC | ||||||||
Input Frequency | 45-65Hz | |||||||||
Maximum Photovoltaic Voltage | ≤100V | ≤100V | ≤150V | |||||||
PV Input Range Voltage | 18-100V | 35-100V | 60-150V | |||||||
Rated Charge Current | MPPT 30A | 60A(MAX.) | ||||||||
Maximum Power | 420Wp | 840Wp | 1650Wp | 3400Wp | ||||||
Voltage 0f Floating charge | 14. 2V | 28.4V | 56.8V | |||||||
MPPT Efficiency | ≥97% | ≥99% | ||||||||
DC Output | Voltage 0f High-voltage Protection | 16V | 32V | 64V | ||||||
Voltage 0f High Voltage Recovery | 14. 5V | 29v | 58V | |||||||
Voltage Of Low Voltage Recovery | 13V | 26V | 52V | |||||||
Voltage Of Low Voltage Protection | 11.2V | 22. 4V | 44.8V | |||||||
5VDC USB Output Port | 2 Units/MAX 2A | |||||||||
12VDC 0utput Port | 2DC Ports/MAX 2A | |||||||||
