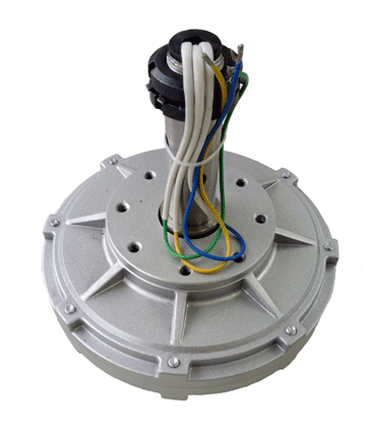

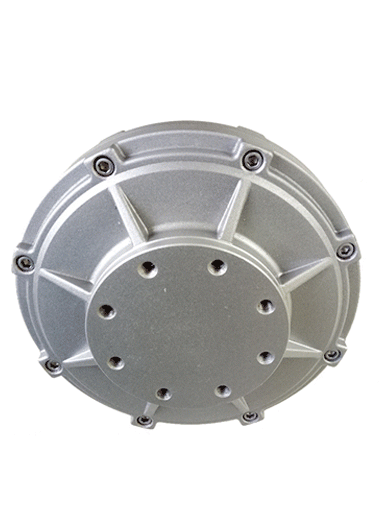

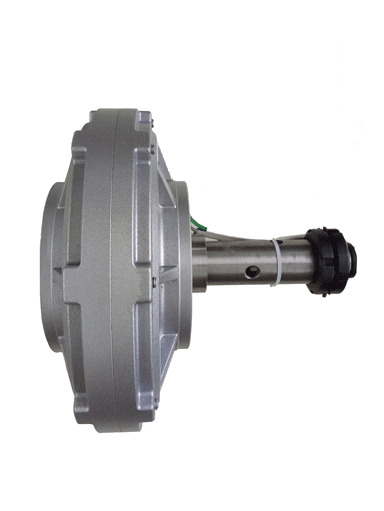

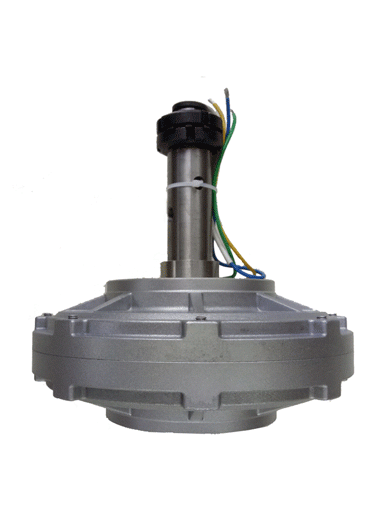

Small Power AC Generator, different rpm an power available:
30w/40w/50w/60w/80w
130rpm/200rpm/250rpm/300rpm
or customization ok,please contact us for details
| Model | AMG0.04KW-220 |
| Rated?power(w) | 40 |
| Rated?speed(rpm) | 130 |
| Rated?voltage)(vdc) | 24acv |
| Rated?Current(A) | 1.7 |
| Efficiency | >80% |
| Resistance?(Line-Line) | - |
| Winding?type | Y |
| Insulation?Resistance | 100Mohm?Min(1000V?DC) |
| Leakage?level | <5?ma |
| Start?torque(N*M) | <0.1 |
| Phase | Three?phase |
| Structure | outer?rotor |
| Stator | coreless |
| Rotor | Permanent?magnet |
| Pole | 16?poles |
| Gen.?Diameter(mm) | 230 |
| Gen.?Length(mm) | 192 |
| Gen.?Weight(mm) | 9 |
| Shaft.?Diameter(kg) | 30 |
| Housing?Material | Aluminum?(?Alloy?) |
| Shaft?Material | Steel |
