Hybrid Inverter Technology Parameter Sheet | ||||||
Model | SP-HI-EU-3.6KW | SP-HI-EU-5KW | SP-HI-EU-8KW | |||
Battery Input Date | ||||||
Battery Type | Lead-acid or Li-lon | |||||
Max. Charging Current(A) | 90A | 120A | 190A | |||
Max. Discharging Current(A) | 90A | 120A | 190A | |||
Charging Curve | 3 Stages / Equalization | |||||
External Temperature Sensor | Yes | |||||
Charging Strategy for Li-lon Battery | Self-adaption to BMS | |||||
PV String Input Data | ||||||
Max. DC Input Power(W) | 4680W | 6500W | 10400W | |||
PV Input Voltage(V) | 370V (100V~500V) | |||||
MPPT Range(V) | 125~425V | |||||
Start-up Voltage(V) | 150V | |||||
PV Input Current(A) | 13A+13A | 22A+22A | ||||
No. of MPPT Trackers | 2 | |||||
No. of Strings Per MPPT Tracker | 1+1 | 2+2 | ||||
AC Output Data | ||||||
Rated AC Output and UPS Power(W) | 3600 | 5000 | 8000 | |||
Max. AC Output Power(W) | 3960 | 5500 | 8800 | |||
Peak Power(off grid) | 2 times of rated power, 10S | |||||
AC Output Rated Current(A) | 15.7A | 21.7A | 33.4A / 35A | |||
Max. AC Current(A) | 18A | 25A | 36.7A / 38.5A | |||
Max. Continuous AC Passthrough(A) | 35A | 50A | ||||
Efficiency | ||||||
Max. Efficiency | 97.60% | |||||
Euro Efficiency | 96.50% | |||||
MPPT Efficiency | 99.90% | |||||
Protection | ||||||
PV Arc Fault Detection | Integrated | |||||
PV Input Lightning Protection | Integrated | |||||
Anti-islanding Protection | Integrated | |||||
PV String Input Reverse Polarity Protection | Integrated | |||||
Insulation Resistor Detection | Integrated | |||||
Residual Current Monitoring Unit | Integrated | |||||
Output Over Current Protection | Integrated | |||||
Output Shorted Protection | Integrated | |||||
Surge Protection | DC Type II / AC Type II | |||||
Certifications and Standards | ||||||
Grid Regulation | VDE 0126 , CE | |||||
Safety Regulation | IEC62109-1, IEC62109-2 | |||||
EMC | EN61000-6-1, EN61000-6-3 | |||||
General Data | ||||||
Operating Temperature Range(℃) | -25~60℃, >45℃ Dera\uDBC0\uDD9Fng | |||||
Cooling | Smart cooling | |||||
Communication with BMS | RS485; CAN | |||||
Weight(kg) | 20.5 | 32 | ||||
Protection Degree | IP65 | |||||
Installation Style | Wall-mounted | |||||
Warranty | 5 Years | |||||

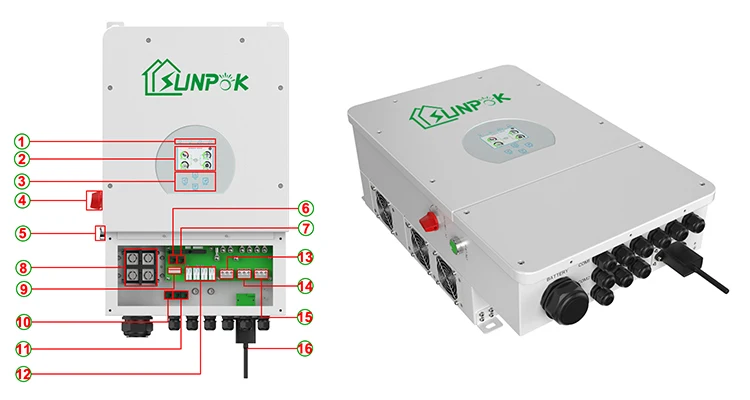

1 | Inverter Indicators | 9 | Function Port | |
2 | LCD Display | 10 | Meter_CON Port | |
3 | Function Buttons | 11 | Parallel port | |
4 | DC Switch | 12 | PV input with two MPPT | |
5 | Power on/off button | 13 | Grid | |
6 | RS 485 Port | 14 | Generator input | |
7 | CAN Port | 15 | Load | |
8 | Battery input connectors | 16 | WiFi Interface |
