DAH Solar on Grid Photovoltaic System 300KW 500KW 1000KW Solar Farm System

DAH Solar Co., Ltd.

An Hui China

Summary

No.1601021770818

$0.50

Specifications

System Type:

On-Grid Solar System

Solar Power (W):

300kw

500kw

1000kw

INQUIRY

Description Download

Key attributes

Industry-specific attributes

Solar Panel Type

Monocrystalline Silicon

Controller Type

MPPT

Other attributes

Free installation service

Yes

Place of Origin

Anhui, China

Load Power (W)

300kw, 500kw, 1000kw

Pre-sales project design

Brand Name

DAH-SOLAR

Model Number

DH-ON-5MW

Application

Home/ Commercial/ Industrial

Battery Type

Lead-Acid, Lithium Ion

Mounting Type

Ground Mounting

Output Voltage (V)

EU: 220-240/380-400V US: 110/120/208/240/277/480V

Output Frequency

50Hz60Hz

Work Time (h)

24 Hours

Installation Service

photovoltaic system 300KW 500KW 1000KW solar farm system

Experience

Have been installing in EU Latin America Asia

Solar panel

Mono/ DAH Solar Patented Full Screen Solar Panel

Warranty

30 Years

Solar Panel Mounting Material

Aluminum/Steel

Installation Site

Ground; Metal Steel; Asphalt pitch; Flat Roof

Load Power (W)

100KW

Protection

Overloads Overcharge Reverse Polarity

PV Cable

4mm2/6mm2/10mm2

Inverter

Growatt/ DEYE/ SOLIS/GOODWE/HUAWEI

Packaging and delivery

Selling units

Single item

Single package size

0.04X0.02X0.01 cm

Single gross weight

1.000 kg

Commercial Use 60-200KW
Module	DH60KW-ON	DH80KW-ON	DH100KW-ON	DH150KW-ON	DH200KW-ON
540W Mono Solar Panel (Pcs)	112	150	186	280	384
Grid Tied Inverter	60KW	80KW	100KW	150KW	200KW
DC Cable 4mm2	1200 Meters ( Designable according to project requirements)
MC4 Connector	50 Pairs ( Designable according to project requirements)
Mounting System	Customized for Rooftop or Ground
Installation Tools	1 Set
Optional Accessories	Lightning protection/grounding device AC/DC Combiner box AC cable Smart Meter

Top Components

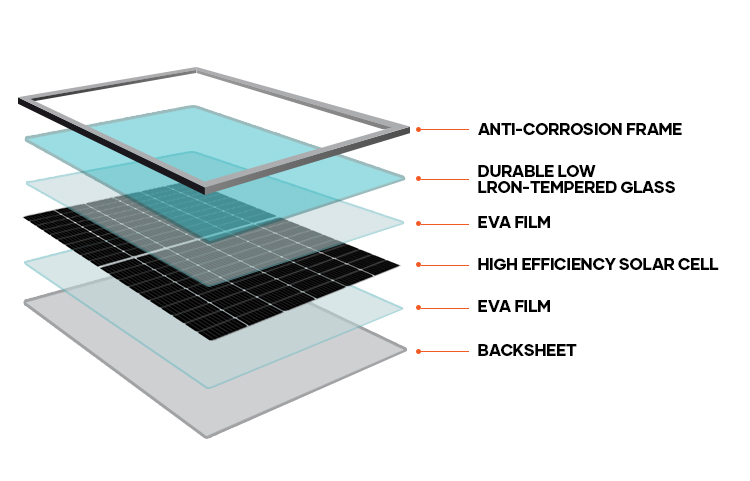

Solar Panel

PID Free PV Module

0-5W Positive Power Output Guarantee

30Years Power Output Guarantee

100% Double Full EL Inspection

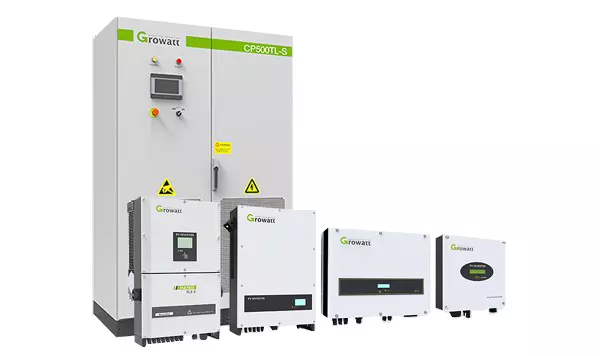

On Grid Inverter

10 years standard warranty

Support Working in Parallel
Max.Efficiency 99.6%
Integrated DC switch for added safety protection

With WIFI Monitoring Device

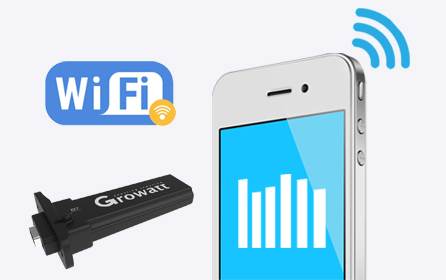

Wifi Module

Intelligent APP for PC, IOS and Android, monitoring system runs power generation, keeping the latest date in real time.

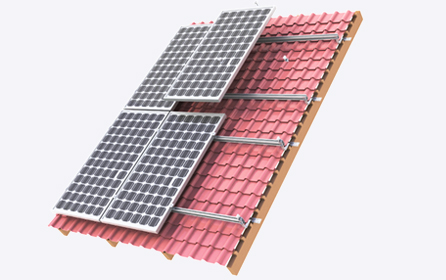

Mounting Structure

Customized for :
Rooftop(Flat/Pitched), Ground , Car Parking Lot
Adjustable tile angle from 0 to 65 degree
Compatible with all solar modules.

Accessories

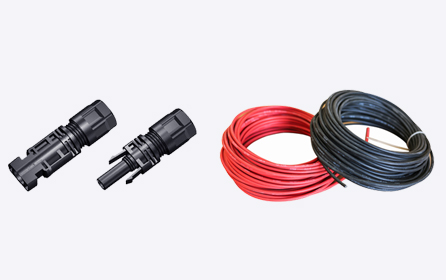

PV Cable 4mm2 6mm2

MC 4 compatible Connector

AC/DC Combiner Box

AC/DC Breaker

Production & QC

DAH Solar covers an area of 38,000 square meters and has 350 employees. DAH solar is a national high-tech enterprise specializing in R & D and manufacturing of solar panels and solar panel systems. We have the complete production line and strict quality inspection for solar panels.

Safe Packaging

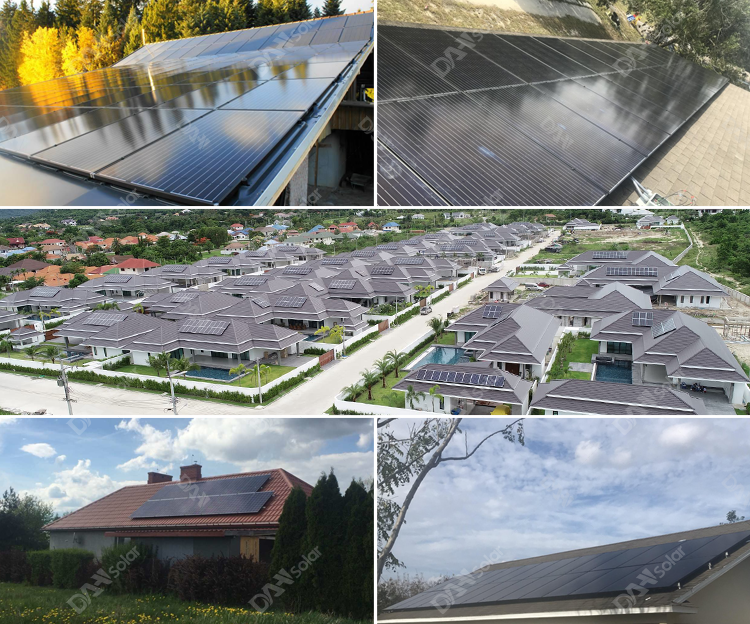

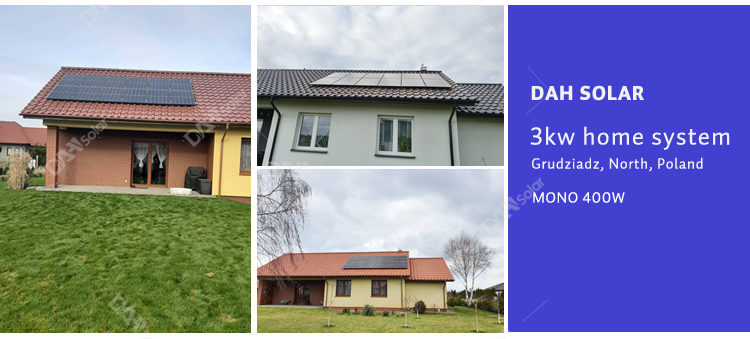

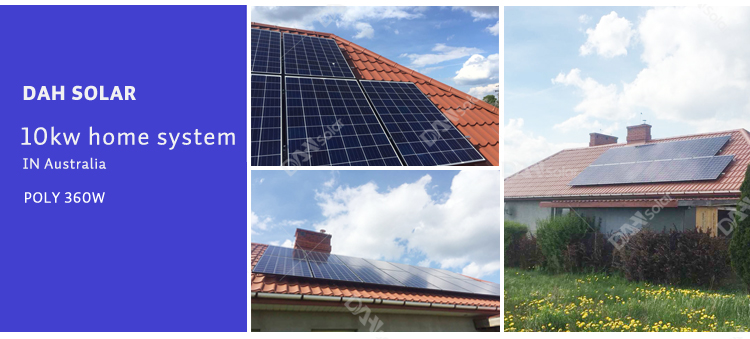

Projects Show

Solar panels are sold to more than 100 countries around the world, such as the United States, Mexico, Brazil, Argentina, the United Kingdom, France, Germany, Italy, Ukraine, Poland, Spain, Thailand, Vietnam, Japan, Oman, Kuwait, Syria, South Africa, Zambia, Nigeria and other countries.
