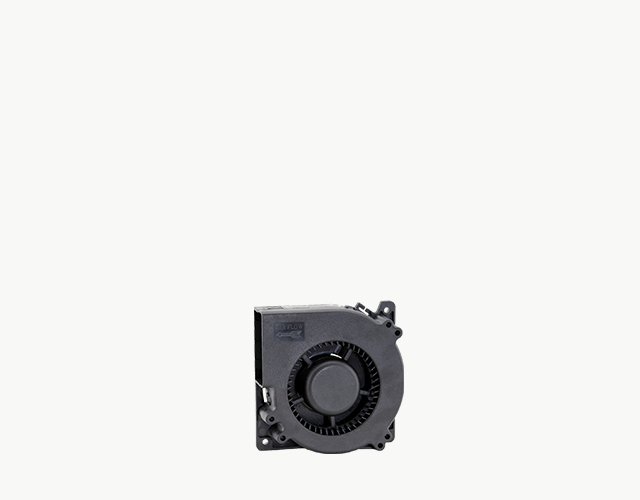

DC1232 Blower Fan 120x120x32mm High-Efficiency Cooling for Energy Storage Systems

Shenzhen YCCFAN Technology Co.,Ltd. 2011

China

Summary

DC1232 Blower Fan 120x120x32mm is a high-efficiency cooling solution designed for energy storage systems. Constructed with UL 94V-0 rated glass fiber reinforced plastic impeller and housing, it ensures durability and fire resistance. With ball bearing options supporting temperatures from -10℃ to +70℃, this fan delivers reliable thermal management for critical battery and renewable energy applications.More

Specifications

Size:

120x120x32mm

Construction:

Glass Fiber reinforced plastic: Impeller and housing PBT are UL 94V-0 rating

Operating Temperature:

Ball bearing -10℃to +70℃

Sleeve bearing -10℃ to +60℃

INQUIRY

Description Download

Model	Bearing Type	Rated voltage	Current	Speed	Air Flow	Static Pressure	Noise Level	Weight
Model	Bearing Type	VDC	A	RPM	CFM	mmH?O	dBA	g
YBH1232X12	S or B	12	0.81	3000	27.68	34.36	52.10	240
YBM1232X12	S or B	12	0.47	2500	23.07	23.86	48.21	240
YBL1232X12	S or B	12	0.25	200o	18.45	15.27	45.73	240
YBH1232X24	S or B	24	0.42	300o	27.68	34.36	52.10	240
YBM1232X24	S or B	24	0.24	2500	23.07	23.86	48.21	240
YBL1232X24	S or B	24	0.12	2000	18.45	15.27	45.73	240

Shenzhen YCCFAN Technology Co.,Ltd.

Shenzhen YCCFAN Technology Co.,Ltd.

2011

China

DC Fan, DC Blower Fan, AC Fan, EC Fan, Micro Fan, Cooling Fan
