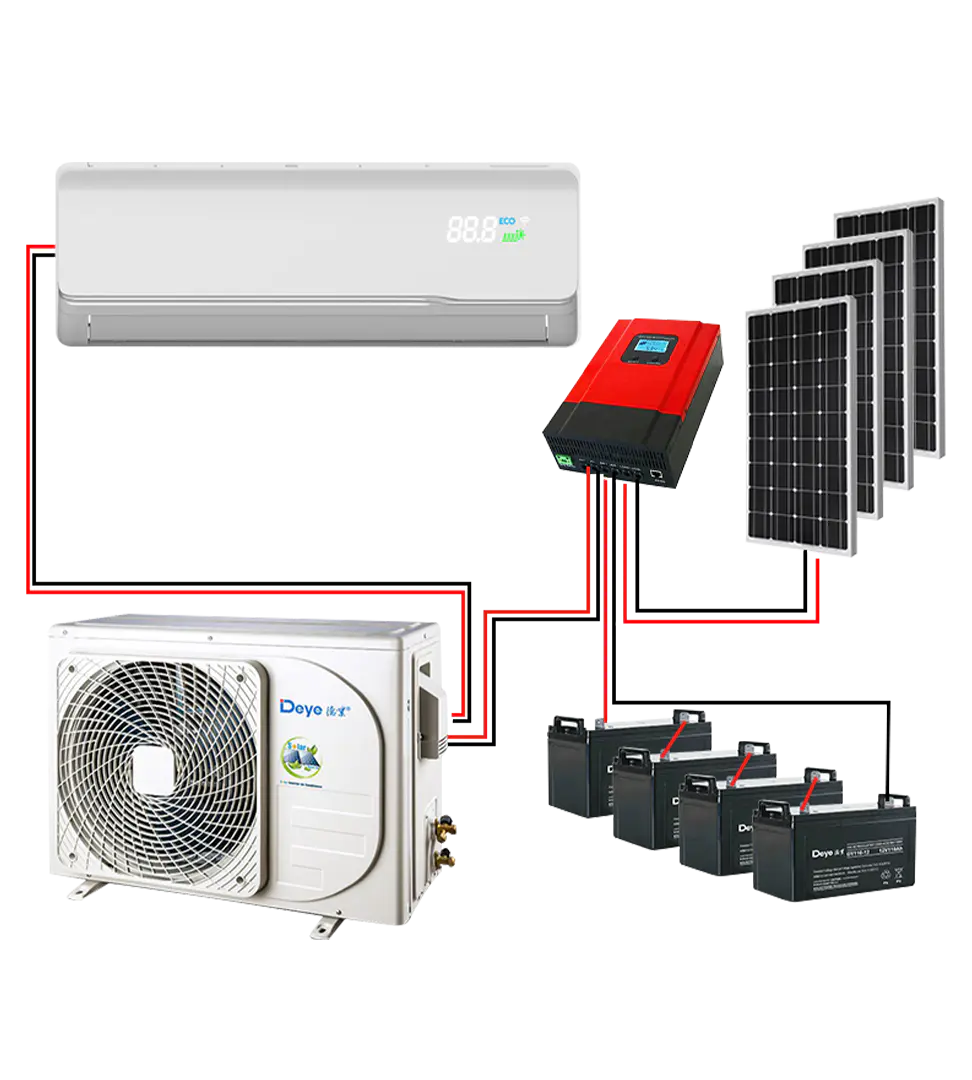

| T1/T3 DC48V Solar Air Conditioner | ||||||
| Model | DGA1-DC48V-09K | DGA1-DC48V-12K | DGA1-DC48V-18K | DGA1-DC48V-24K | ||
| Climate Type | Tropical | T1/T3 | T1/T3 | T1/T3 | T1/T3 | |
| Application area | m2 | 8-12 | 12-20 | 20-30 | 30-40 | |
| Power supply | Battery | DC | DC48V(46~58V) | DC48V(46~58V) | DC48V(46~58V) | DC48V(46~58V) |
| Rated Cooling | Capacity(T1) | W | 2600(1000-3400) | 3510(1000-3700) | 5070(1200-5250) | 6450(2500-7000) |
| BTU | 9000(3400-11600) | 12000(3400-12600) | 17300(4100-18000) | 22000(8500-23900) | ||
| Power input(T1) | W | 680(180-1060) | 980(200-1200) | 1450(220-1780) | 1840(450-2230) | |
| Capacity(T3) | W | 2490 | 2910 | 4200 | 5370 | |
| BTU | 8500 | 9900 | 14300 | 18300 | ||
| Power input(T3) | W | 960 | 1090 | 1660 | 2200 | |
| Rated Heating | Capacity | W | 2900(800-3050) | 3900(1000-4100) | 5250(1200-5500) | 7000(2000-7350) |
| BTU | 9900(2700-10400) | 13300(3400-14000) | 18000(4100-18700) | 24000(10200-25000) | ||
| Power input | W | 830(160-950) | 1130(180-1280) | 1400(220-1830) | 2050(390-2350) | |
| T1 EER (W/W)/ (BTU/W) | / | 3.90/13.20 | 3.60/12.25 | 3.50/11.8 | 3.50/11.85 | |
| T3 EER (W/W)/ (BTU/W) | / | 2.60/8.90 | 2.65/9.05 | 2.55/8.60 | 2.45/8.30 | |
| COP (W/W)/ (BTU/W) | / | 3.50/11.90 | 3.45/11.75 | 3.75/12.80 | 3.40/11.70 | |
| Dehumidification capacity | L/h | 1.0 | 1.3 | 1.7 | 2.5 | |
| Compressor | Model | / | ASK89D53UEZ | ASN98D22UFZ | WHP05600 | 5RD198 |
| Type | / | Rotary Inverter | Rotary Inverter | 2xRotary Inverter | 2xRotary Inverter | |
| Brand | / | GMCC | GMCC | HIGHLY | Panasonic | |
| Indoor fan motor | Model | / | BLDC 15W | BLDC 15W | BLDC 45W | BLDC 45W |
| Speed(Turbo/Hi/Mi/Lo) | r/min | 1200/1100/1000/850 | 1300/1200/1100/950 | 1050/950/850/750 | 1350/1250/1150/1000 | |
| Indoor air flow(Turbo/Hi/Mi/Lo) | m3/h | 485/435/380/305 | 540/485/435/350 | 980/880/740/620 | 1290/1180/1070/900 | |
| Indoor noise level (Turbo) | dB(A) | ≤40 | ≤42.5 | ≤46 | ≤50 | |
| Indoor unit | Dimension(W×H×D) | mm | 840×205×295 | 840×205×295 | 1080×330×237 | 1080×330×237 |
| Packing (W×H×D) | mm | 920×290×360 | 920×290×360 | 1140×300×382 | 1140×300×382 | |
| Net weight/Gross weight | Kg | 9.0/12.5 | 9.0/12.5 | 15.0/18.5 | 15.0/18.5 | |
| Outdoor fan motor | Model | / | BLDC 40W | BLDC 40W | BLDC 55W | BLDC 75W |
| Speed | r/min | 880 | 880 | 880 | 850 | |
| Outdoor coil | a.Number of rows | / | 1 | 2 | 2 | 2 |
| e.Tube outside dia.and type | mm | Φ7,innergroove tube | Φ7,innergroove tube | Φ9.52,innergroove tube | Φ9.52,innergroove tube | |
| Outdoor air flow | m3/h | 2000 | 2100 | 2200 | 3300 | |
| Outdoor noise level | dB(A) | ≤51 | ≤52 | ≤55 | ≤58 | |
| Outdoor unit | Dimension(W×H×D) | mm | 802×564×323 | 802×564×323 | 802×564×323 | 900×700×337 |
| Packing (W×H×D) | mm | 910×622×405 | 910×622×405 | 910×622×405 | 1006×755×418 | |
| Net/Gross weight | Kg | 28.0/32.0 | 32.0/36.0 | 36.0/40.0 | 51/56 | |
| Refrigerant type | / | R410a | R410a | R410a | R410a | |
Max Design pressure (Discharge/Suction) | MPa | 4.3/1.5 | 4.3/1.5 | 4.3/1.5 | 4.3/1.1 | |
| Refrigerant piping | Gas side/Liquid side (inch) | inch | 3/8 1/4 | 3/8 1/4 | 1/2 1/4 | 1/2 1/4 |
| Max. refrigerant pipe length | m | 15 | 15 | 20 | 25 | |
| Max. difference in level | m | 8 | 8 | 10 | 10 | |
| Drain pipe size | mm | 16 | 16 | 16 | 16 | |
| Refrigerant pipinglength | m | 3 | 3 | 4 | 4 | |
| Connection wiring | m | 4 | 4 | 5 | 5 | |
| Electrical Expansion Valve | Yes | Yes | Yes | Yes | ||
| Loading QTY 40" Hq/ 20"GP | Sets | 200/85 | 200/85 | 160/75 | 115/50 | |
