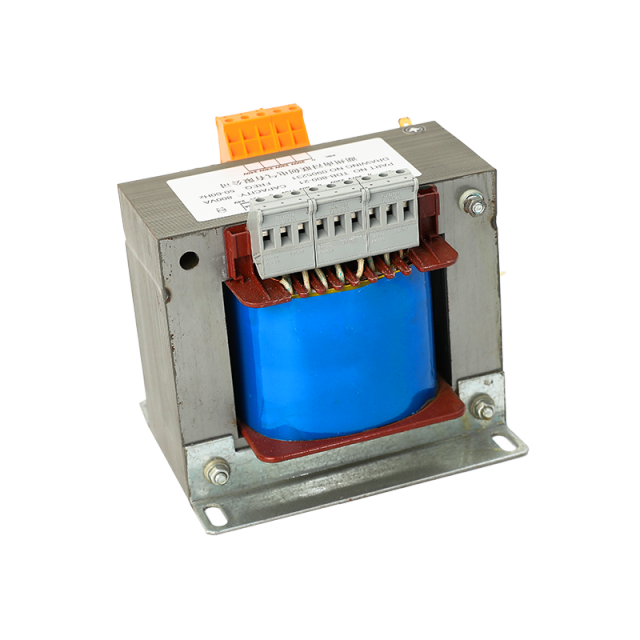

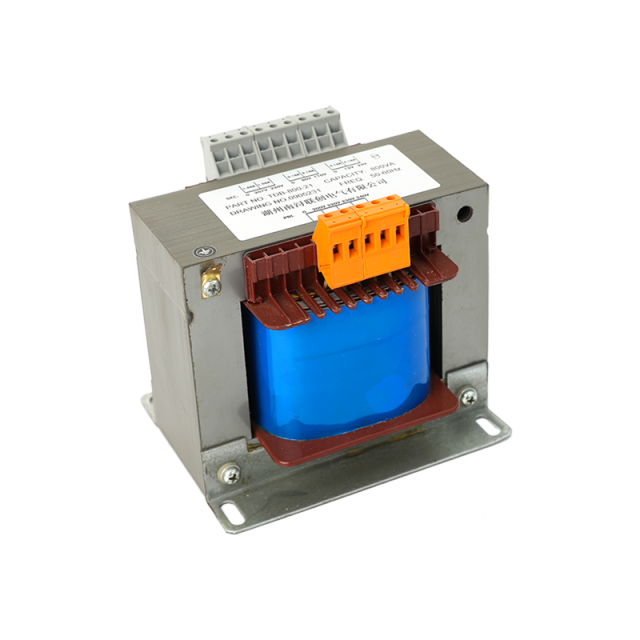

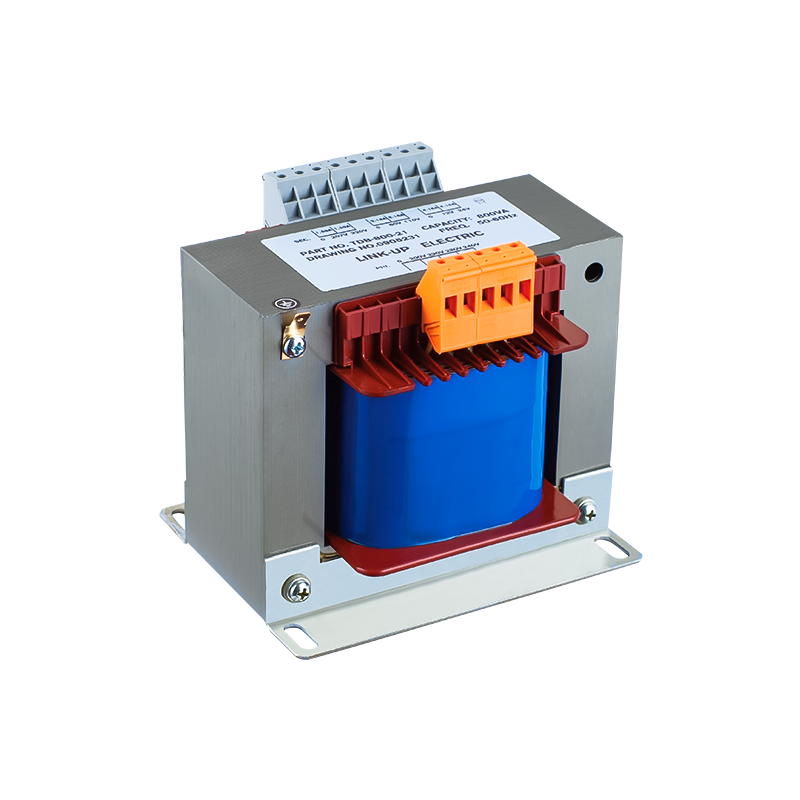

DG series of single-phase isolation transformer parameter table
PART NO. | DRAWING NO. | CAP(VA) | UPRI(V) | USEC(V)/ISEC(A) | Dimensions | Installation | |
L×W | Φ | ||||||
DG-1-0.22/0.0008 | 1809109 | 1KVA | 220V | 0.8V | 150x115x145 | 135x65 | 7x14 |
DG-3-0.22/0.002 | 1603312 | 3KVA | 220V | 2V | 168x155x175 | / | / |
DG-3-0.38/0.22 | 1404080 | 3KVA | 380V | 220V | 350x240x280 | 325x190 | 9 |
DG-3.5-0.38/0.22 | 1404073 | 3.5KVA | 380V | 220V | 350x240x280 | 325x190 | 9 |
DG-4-0.38/0.22 | 1309135 | 4KVA | 380V | 220V | 350x240x280 | 325x190 | 9 |
DG-4-0.1/2*0.025 | 1808259 | 4KVA | 100V | 25V/80A，25V/80A | 192x150x340 | 150x130 | 7x19 |
DG-5-0.22/0.286 | 1409018 | 5KVA | 220V | 220V | 250x170x230 | 225x160 | 7x19 |
DG-5-0.38/0.22 | 1311126 | 5KVA | 380V | 220V | 390x280x260 | 365x230 | 9 |
DG-5-02 | 1407089 | 5KVA | 380V-400-415V-440V | 220V | 390x280x260 | 365x230 | 9 |
DG-6-0.38/0.22 | 1406099 | 6KVA | 380V | 220V | 390x280x260 | 365x230 | 9 |
DG-7-0.38/0.22 | 1405089 | 7KVA | 380V | 220V | 390x280x260 | 365x230 | 9 |
DG-7.5-0.38/0.22 | 1312281 | 7.5KVA | 380V | 220V | 390x280x260 | 365x230 | 9 |
DG-7.5-0.38/0.22 | 1312281 | 7.5KVA | 380V | 220V | 390x280x260 | 365x230 | 12 |
DG-8-0.38/0.22 | 1311138 | 8KVA | 380V | 220V | 400x370x460 | 360x280 | 12 |
DG-10-0.38/0.22 | 1403070 | 10KVA | 380V | 220V | 400x370x460 | 360x280 | 12 |
DG-10-01 | 1501078 | 10KVA | 380V-400-415V-440V | 220V | 400x370x460 | 360x280 | 12 |
DG-15-0.38/0.22 | 1411228 | 15KVA | 380V | 220V | 400x370x460 | 360x280 | 12 |
DG-125-0.38/0.006 | 1804137 | 125KVA | 380V | 6V | 410x270x275 | 340x260 | 12 |
DG-200-0.38/0.0065 | 1703022 | 200KVA | 380V | 6.5V | 380x270x275 | 340x260 | 12 |
DG-250-0.38/0.007 | 1804136 | 250KVA | 380V | 7V | 410x270x275 | 340x260 | 12 |
DG-300.0.38/0.008 | 1609081 | 300KVA | 380V | 8V | 390x270x355 | 340x260 | 12 |
DG-400-0.38/0.01 | 1710261 | 400KVA | 380V | 10V | 510x420x390 | 300x280 | 12 |
The above parameters are only part of the dishes, which can be designed and manufactured independently according to customers'needs.
