The Energy storage cabinet is applied in fields such as industrial and commercial energy storage, distributed energy systems and microgrid systems. The cabinet integrates lithium-ion battery systems, PCS, EMS, monitoring systems, temperature control systems and fire protection systems, which can be customized according to customer requirements.
More
|
Type |

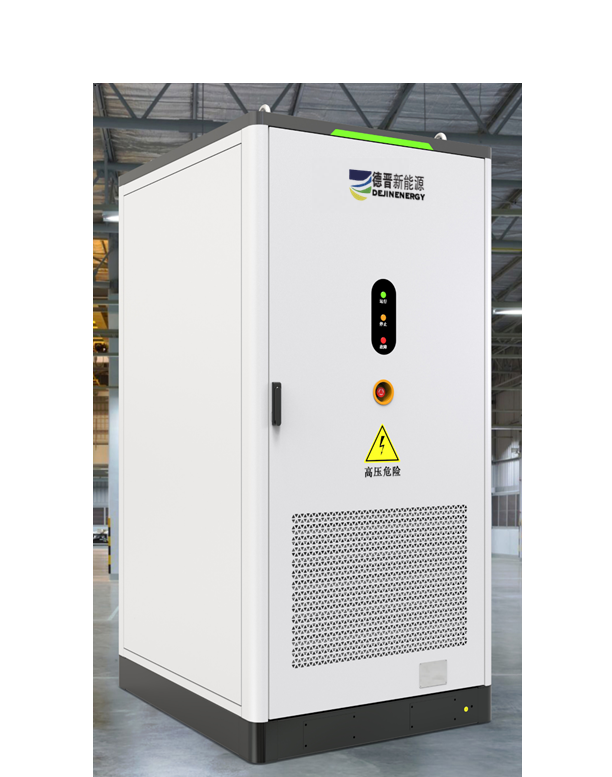

DJ-CESS-125kW/261kWh |
|
Battery Side Parameter |
|
|
Cell Type |
LFP |
|
Cell Parameter |
314Ah 3.2V |
|
Battery PACK Configuration |
52.2kWh/1P52S |
|
Battery System Configuration |
261kWh/1P260S |
|
(Battery Voltage Range |
650-949V |
|
Numbers of PACK Temperature Detection |
30 |
|
PCS Parameter |
|
|
Rated Output Power |
125kW |
|
Maximum Output Power |
137kW |
|
AC Output Mode |
TN |
|
AC Current Aberration Rate |
<3%（线性负载时@Linear load ) |
|
DC Component |
<0.5%（额定功率时@Rated Power） |
|
Rated Grid Voltage |
3L/N/PE, AC400/230V |
|
Grid Voltage Range |
-15%~10% |
|
Power Factor |
-1~+1 |
|
Rated Grid Frequency |
50Hz/60Hz |
|
Grid Frequency Range |
±5Hz |
|
System Parameter |
|
|
Cabinet size: H ×W×D) |
2330*1023*1370mm |
|
Weight |
2500±60Kg |
|
Charge and Discharge Power |
≤0.5P |
|
Protection Grade) |
IP55 |
|
Auxiliary Power Supply) |
supply & External supply |
|
(Operating environment temperature) |
–20°C ~+50°C (>45°C derating) |
|
Operating environment humidity |
0~95% RH |
|
Maximum working altitude |
≤2000m |
|
Noise |
≤75dB |
|
Anti-corrosion grade |
C3(Standard） |
|
Battery temperature control mode |
Intelligent Liquid Cooling |
|
Fire safety configuration |
Composite Detector, acousto-optic alarm, aerosol PACK + space level, top pressure relief plate |
|
communication |
LAN/CAN/RS485 |
|
Communication protocol |
IEC61850，Modbus，104 |
|
standard |
GB/T36276, GB/T34131, GB/T 34120, UN38.3 |
