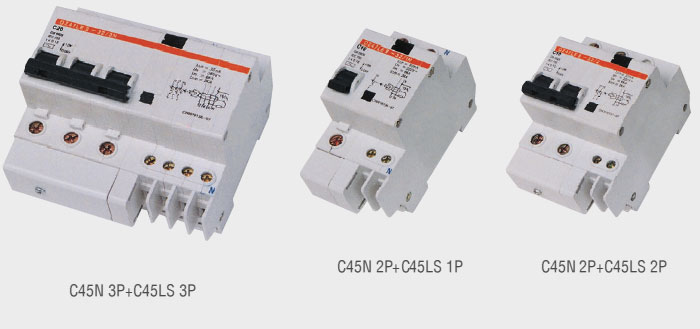

| DZ47(C45LS) Earth Leakage Circuit Breaker | ||||||||||||||||||||
.jpg) | ||||||||||||||||||||
| Application | ||||||||||||||||||||
| DZ47LS earth leakage circuit breaker is used for the protection, against electrical leakage in the circuit of 50/60Hz, rated voltage single-phase 240V, 3phase 415V, rated current up to 60A, When somebody gets an electric shock or the residual current of the circuit exceeds the fixed value, the ELCB can cut off the power within the time of 0.1s automatically protecting the personal safety and preventing the equipement from the fault resulted from the residual current. With this function, the ELCB can protect the circuit against overload and short circuit of can be used for the unfrequent switch over of the circuit under normal conditions. It conforms to IEC60898 & IEC60755. | ||||||||||||||||||||
-1.jpg) | ||||||||||||||||||||
| Wiring diagram | ||||||||||||||||||||
|
