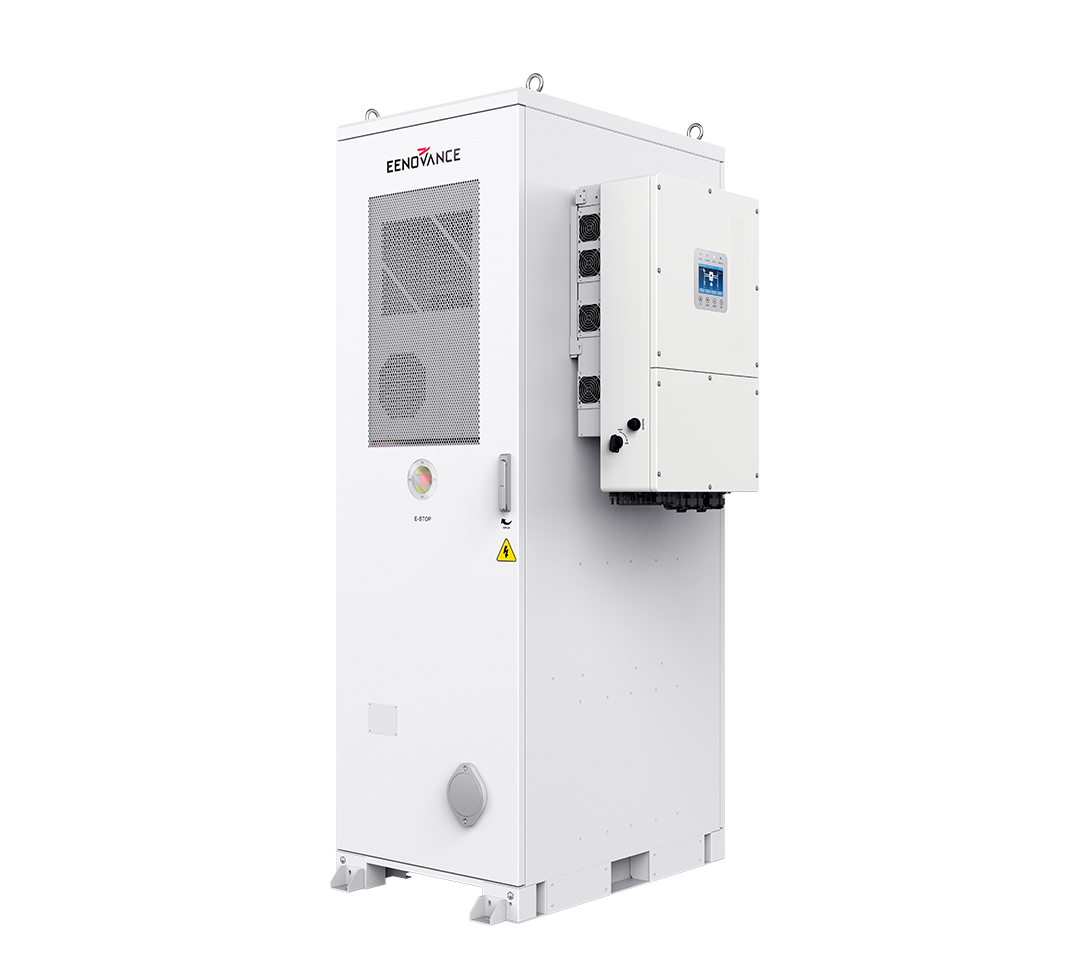

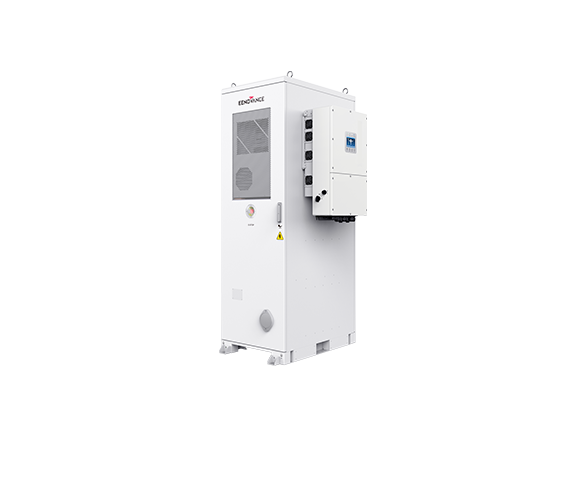

E-MATE 50-61-A Commercial Air-cooled Energy Storage System 480V-700.8V 61.44kWh 50kW Safe & Smart for Peak Shaving Emergency Backup

Key Features

•

  Safe and Reliable

  Multi-level early warning and fire suppression design.

•

  High Integration

  AC/DC integration simplifies installation and reduces costs.

•

  Profit Maximization

  Adapts to on-grid, off-grid, and hybrid modes, with 4 MPPTs PV DC bus connections for improved efficiency and profitability.

•

  Seamless Switching

  Supports smooth transitions between on-grid and off-grid, ensuring a highly reliable power supply.

•

  Smart O&M

  Efficient management for remote monitoring, troubleshooting, and data analysis.

Basic Parameter

• • Cell technology:

    LFP-3.2 V / 100 Ah
  • Battery system rated capacity:

    61.44 kWh
  • Battery system voltage range:

    480 V - 700.8 V
  • Battery system charge / discharge rate:

    0.8P
  • Cycle life:

    6000 cycles (25±2°C, 0.5P / 0.5P, 70% SOH)
  • Rated output power:

    50 kW
  • Rated grid voltage:

    3L / N / PE220 / 380, 230 / 400Vac
  • Maximum output current:

    76 A
  • PV side voltage range:

    150 V - 850 V (full power above 500 V)
  • MPPT quantity:

    4
• • Firefighting:

    Aerosol: module-level (optional) + stack-level, water firefighting, combustible gas detection and exhaust
  • Compliance:

    UN38.3 / UN3480 / IEC62619 / IEC61000 / IEC62477-1 / CQC

Where You Need Them

•



  Peak Shaving
•



  Emergency Power Backup
•



  Dynamic Capacity Expansion
•



  PV+ESS+EV Charging
•



  Power Quality Control
•



  Micro-grid

Intelligent Control & Monitoring
