Features & Advantages
|

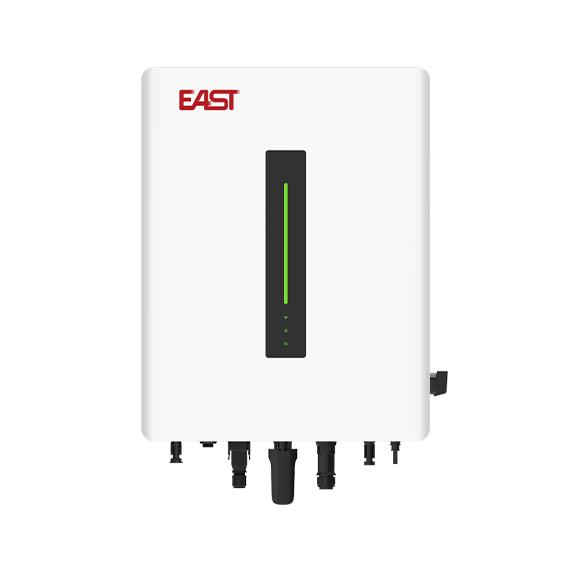

MODEL |
EAHI10KTH |
EAHI15KTH |
EAHI20KTH |
|
|
PV input |
||||
|
Max. input power |
20kW |
30kW |
30kW |
|
|
Max. input voltage |
1000Vdc |
|||
|
Rated input voltage |
650Vdc |
|||
|
Start-up voltage |
180Vdc |
|||
|
Min. operating voltage |
160Vdc |
|||
|
MPPT voltage range |
160~1000Vdc |
|||
|
Full power MPPT voltage range |
625-800V |
|||
|
Max. input current per MPPT |
16A/16A |
16A/32A |
||
|
Max. short-circuit current per MPPT |
24A/24A |
24A/48A |
||
|
Number of MPPTs |
2 |
|||
|
Number of input strings per MPPT |
1/1 |
1/2 |
||
|
Battery input |
||||
|
Battery type |
Lithium battery |
|||
|
Voltage range |
150~600Vdc |
|||
|
Max. charge/discharge current |
50A/50A |
|||
|
AC input and output (Grid) |
||||
|
Max. apparent power of grid |
15kVA |
22.5kVA |
30kVA |
|
|
Max. input current |
22.8A |
34.2A |
45.6A |
|
|
Input voltage range |
320~480Vac |
|||
|
Input frequency range |
50±5Hz / 60±5Hz |
|||
|
Rated output power |
10kW |
15kW |
20kW |
|
|
Max. output apparent power |
11kVA |
16.5kVA |
22kVA |
|
|
Rated output voltage |
3/N/PE, 380Vac/400Vac |
|||
|
Rated output frequency |
50Hz/60Hz |
|||
|
Rated output current |
15.2A/14.4A |
22.8A/21.7A |
30.4A/28.9A |
|
|
Max. output current |
16.7A/15.8A |
25.1A/23.8A |
33.5A/31.8A |
|
|
Power factor |
>0.99 (0.8 leading ~ 0.8 lagging) |
|||
|
THDI |
≤3% (@ rated power) |
|||
|
Generator input |
||||
|
Max. input power |
10kW |
15kW |
20kW |
|
|
Max. input current |
15.2A |
22.8A |
30.4A |
|
|
AC output (Backup load) |
||||
|
Rated output power |
10kW |
15kW |
20kW |
|
|
Max. apparent power |
10kVA |
15kVA |
20kVA |
|
|
Rated output voltage |
3/N/PE, 380Vac/400Vac |
|||
|
Rated output frequency |
50Hz/60Hz |
|||
|
Rated output current |
15.2A/14.4A |
22.8A/21.7A |
30.4A/28.9A |
|
|
Max. output current |
15.2A |
22.8A |
30.4A |
|
|
THDV |
≤3% (linear load) |
|||
|
Switching time |
≤10ms |
|||
|
Efficiency |
||||
|
Maximum efficiency |
98.2% |
|||
|
MPPT efficiency |
99.9% |
|||
|
Protections |
||||
|
Protections |
Over/under voltage, over/under frequency, overload, output short-circuit, over-temperature, residual current monitoring unit, output overcurrent, insulation resistance detection, anti-islanding, surge protection |
|||
|
Surge protection |
DC Type II/AC Type II |
|||
|
Others |
||||
|
Dimensions(W*H*D) |
500*660*270mm |
|||
|
Packaged dimensions(W*H*D) |
610*860*370mm |
|||
|
Net weight |
41kg |
|||
|
Gross weight |
47kg |
|||
|
Parallel operation |
Supports 6 units in parallel connection |
|||
|
Topology |
Non-isolated |
|||
|
IP rating |
IP66 |
|||
|
Operating temperature |
-25℃ ~ +60℃ |
|||
|
Cooling mode |
Natural cooling |
Smart cooling |
||
|
Altitude |
3000m |
|||
|
Noise level (1m) |
≤25dB |
≤45dB |
≤50dB | |
|
Installation method |
Wall-mounted |
|||
|
Standards |
||||
|
Grid connection |
VDE 0126, EN50549, DIN VDE V 0124-100:2020, VDE-AR-N 4105:2018 |
|||
|
Safety regulation |
IEC/EN 62109-1/-2 |
|||
