Key Features & Advantages

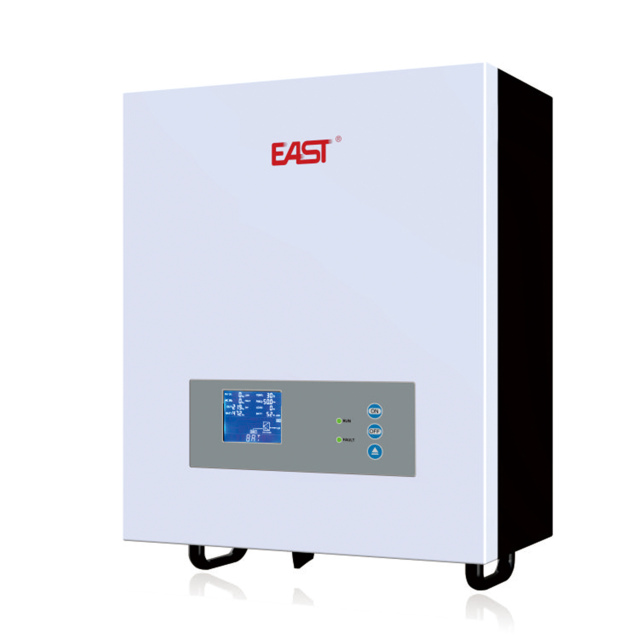

High Reliability: Equipped with a high-speed DSP (Digital Signal Processor) control system, the eastups inverter integrates advanced SPWM (Sine Pulse Width Modulation) technology and high-speed power MOS, delivering exceptional performance stability and precision control.
Operating Mode Flexibility: Choose between energy storage priority or power supply priority modes, allowing you to tailor the system's operation to your specific energy needs and preferences.
Flexible Battery Management: The inverter boasts an intelligent battery management system that automatically switches between three-stage charging modes, significantly reducing recharge time. With a wide range of selectable charging currents tailored to your battery configuration and adjustable DOD (Depth of Discharge) settings, it caters to a diverse range of applications.
Stabilization: Incorporating effective online synchronous stabilizing technology, the AC input ensures a stable and reliable power supply, even during grid fluctuations or outages.
Broad MPPT Input Voltage Range: The board's MPPT (Maximum Power Point Tracking) function supports a wide input voltage range, optimizing energy capture from your solar panels under varying conditions.
|
MODEL |
GF500 |
GF1000 |
GF2000 |
GF2500 |
GF3000 |
GF200 |
|
Rated power |
500 W |
1000 W |
2000 W |
2500 W |
3000 W |
200W |
|
Operating modes |
Energy storage priority / Power supply priority |
|||||
|
PV INPUT |
||||||
|
Max. input power |
700 W |
1400 W |
2800 W |
3500 W |
3500 W |
3500 W |
|
Max. input voltage |
60 Vdc |
100 Vdc |
150 Vdc |
150 Vdc |
150 Vdc |
150 Vdc |
|
Rated input voltage |
48 Vdc |
80 Vdc |
120 Vdc |
120 Vdc |
120 Vdc |
120 Vdc |
|
Start-up voltage |
15 Vdc |
30 Vdc |
60 Vdc |
60 Vdc |
60 Vdc |
60 Vdc |
|
Max. input current |
43 A |
43 A |
43 A |
53 A |
53 A |
53 A |
|
MPPT voltage range (Full load) |
16 ~ 48 Vdc |
33 ~ 80 Vdc |
65 ~ 120 Vdc |
|||
|
Number of MPPTs |
1 |
|||||
|
AC INPUT |
||||||
|
Input voltage |
Bypass input range: 0 ~ 132 Vac / 0 ~ 264 Vac Rated input voltage: 100 / 110 / 115 / 120 Vac or 200 / 220 / 230 / 240 Vac (2500 W is only for 110 Vac; 3000 W is only for 220 Vac) |
|||||
|
Input frequency |
50 / 60 Hz ± 5% / 10% / 15% (settable) |
|||||
|
OUTPUT |
||||||
|
Output voltage |
100 / 110 / 115 / 120 Vac ± 2% or 200 / 220 / 230 / 240 Vac ± 2% (settable) (2500 W is only for 110 Vac; 3000 W is only for 220 Vac) |
|||||
|
Output frequency |
50 / 60 Hz ± 1% (auto-sensing) |
|||||
|
Power factor |
1 |
|||||
|
Waveform |
Sinusoidal |
|||||
|
THD |
THDv ≤ 3% (linear load) |
|||||
|
BATTERIES |
||||||
|
Battery type |
Lead-acid battery (default), AGM / LIT / GEL / Flood battery (optional) |
|||||
|
Rated voltage |
12 Vdc |
24 Vdc |
48 Vdc |
|||
|
Charging current |
5 ~ 50 A (settable) PV charging: 50 A (max.) AC charging: 20 A (max.)
|
5 ~ 65 A (settable) PV charging: 65 A max.) AC charging: 30 A (max.)
|
3 ~ 65 A (settable) PV charging: 65 A (max.) AC charging: 5 A (max.) |
|||
|
TRANSFER TIME |
||||||
|
PV ↔ AC |
3 ~ 6 ms (typical), ≤ 10 ms (max.) |
|||||
|
EFFICIENCY |
||||||
|
Max. efficiency (resistive load) |
≥ 78% |
≥ 82% |
≥ 85% |
≥ 85% |
≥ 85% |
≥ 75% |
|
MPPT efficiency |
≥ 98% (max.) |
|||||
|
OTHERS |
||||||
|
Protections |
Over/under voltage, over/under-frequency, output overload, short-circuit, overdischarge, overcharge, overtemperature, battery low voltage, battery reverse polarity, PV reverse polarity, lightning protections |
|||||
|
Communications |
RS232 / USB / RS485 (standard), SNMP / Wi-Fi / GPRS (optional) |
|||||
|
Display |
LCD & LED |
|||||
|
Standards |
IEC 62040-1, IEC 62040-2, EN 62040-1, EN 62040-2, EN 61000-3-2, EN 61000-3-3, EN 61000-6-2, EN 61000-6-4, EN 62109-1, EN 62109-2 |
|||||
|
IP rating |
IP 21 |
|||||
|
Operating temperature |
0℃ ~ 40℃ |
-35℃ ~ 40℃ |
||||
|
Relative humidity |
≤ 93% |
|||||
|
Altitude |
≤ 1000 m; Above 1000 m, derating 1% for each additional 100 m; Max. 4000 m |
|||||
|
Noise level at 1 m |
< 50 dB |
|||||
|
Dimensions (W × D × H) (mm) |
365.5 × 442 × 210 |
|||||
|
Packaged dimensions (W × D × H) (mm) |
455 × 520 × 283 |
|||||
|
Net weight (kg) |
16.6 |
19.5 |
30.4 |
32.8 |
38.5 |
13.4 |
|
Gross weight (kg) |
18.1 |
21.0 |
31.9 |
34.3 |
40.0 |
14.9 |
