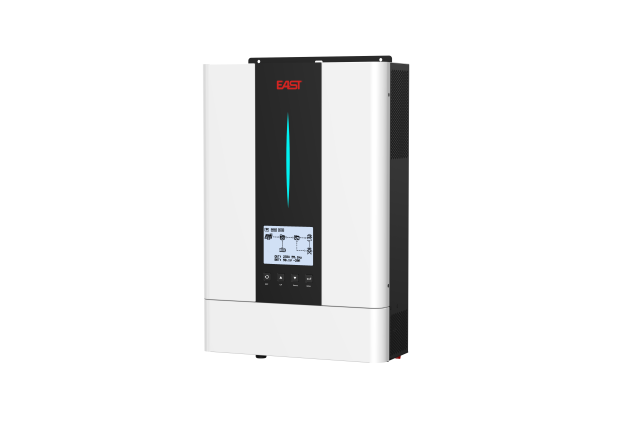

The eastups Solar Inverter 3-5kW Off-Grid EAGF is designed to cater to the diverse off-grid applications. With its blend of elegant aesthetics, and robust functionality,, this pv inverter sets a new benchmark in the renewable energy sector.
More
The EAGF boasts an elegant appearance complemented by a wall-mounted design, making it a sleek addition to any installation environment. Its simplified installation process ensures quick and hassle-free setup, reducing overall installation costs and time.
Producing a pure sine wave output with a power factor of 1.0, the EAGF guarantees stable and clean power supply to your appliances. This ensures compatibility with the most sensitive electronics, extending their lifespan and ensuring optimal performance.
Equipped with an intelligent battery charger, the EAGF optimizes battery performance through high-efficiency charging and discharging technology. This not only maximizes energy storage efficiency but also prolongs the life of your battery system.
Supporting a high PV input range of 120V-450Vdc, the EAGF offers unmatched flexibility in terms of compatible solar panel configurations. This ensures compatibility with a wide array of solar systems, allowing for seamless integration into existing or new off-grid setups.
The EAGF offers the convenience of configurable AC grid/battery input priority, providing users with the flexibility to choose their preferred power source based on availability or preference. This feature ensures reliable power supply, even during periods of low solar generation or battery depletion.
Uniquely, the EAGF also supports battery-free operation, where loads can be directly powered by both solar and the AC grid. This feature adds an extra layer of reliability and versatility, making it an ideal choice for applications where battery backup is not feasible or desired.
Equipped with a graphical LCD display and keypad, the EAGF presents a user-friendly operation interface. This intuitive design simplifies monitoring and control, allowing users to effortlessly manage their energy system with minimal training.
|
MODEL |
EAGF-3kW-H |
EAGF-5kW-H |
|
Rated power |
3000VA/3000W |
5000VA/5000W |
|
AC INPUT |
||
|
Rated input voltage |
230VAC |
|
|
Input voltage range |
170-280VAC PC |
|
|
Rated input frequency |
50/60Hz self-adapting |
|
|
Input frequency range |
40-65Hz |
|
|
Rated input current |
20A |
32A |
|
Max. input current |
30A |
40A |
|
AC OUTPUT |
||
|
Rated AC output voltage |
230VAC ±5% |
|
|
Output settable voltage |
220V/230V/240V |
|
|
Output settable frequency |
50Hz/60Hz |
|
|
Rated AC output current |
13.05A |
21.70A |
|
Overload capacity |
10s @ 110%~150% rated load; 5s @ ≥150% rated load; 100ms @ ≥200% rated load |
|
|
THDU |
＜5%, linear load; ＜10%, non-linear load |
|
|
Inverter efficiency(peak value) |
93% |
|
|
Surge power |
6000VA, 5 cycles |
10000VA, 5 cycles |
|
Switching time |
20ms home application |
|
| BATTERY | ||
|
Battery type |
Lead-acid battery/lithium battery |
|
|
Rated voltage |
24VDC |
48VDC |
|
Charging voltage |
27VDC (default) |
54VDC (default) |
|
Overcharge protection voltage |
30.2VDC |
60.5VDC |
|
Rated discharge current |
142A |
113.7A |
|
PV/AC CHARGING |
||
|
PV charging |
MPPT |
|
|
Max. PV plate power |
4000W |
6000W |
|
Max. PV plate open circuit voltage |
450VDC |
|
|
MPPT operation range voltage |
120-430VDC |
|
|
Max. PV input current |
18A |
27A |
|
Max. PV charging current |
100A |
|
|
Max. AC charging current |
100A |
|
|
Max. battery charging current |
100A |
|
|
OTHERS |
||
|
Protections |
Input over/under voltage protection, input over/under frequency protection, output overload, output short-circuit, radiator overtemperature protection, fan fault detection etc. |
|
|
Communication interfaces |
USB/RS232/RS485, dry contact, WiFi (optional) |
|
|
Parallel number |
6 units |
|
|
Operating environment |
-10℃~50℃ |
|
|
IP rating |
IP21 |
|
|
Dimension(D*W*H)(mm) |
122×322×471 |
122×322×471 |
|
Weight(Kg) |
10 |
12 |
