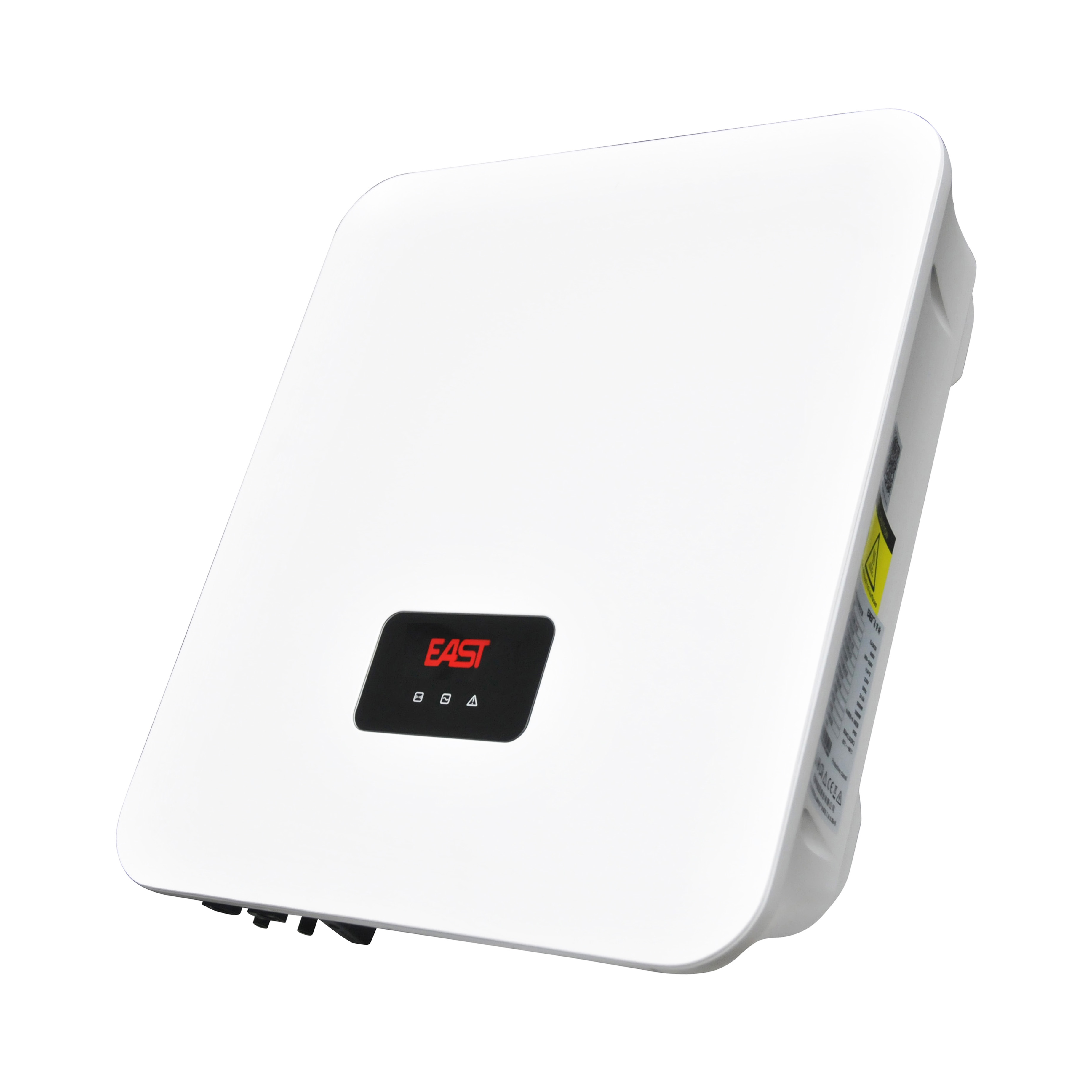

Product Features:
Compact and Robust Design
- Aluminum Alloy Die Casting Enclosure: Crafted from high-grade aluminum alloy, the enclosure is permanently anti-rust, ensuring long-lasting durability and resilience against harsh environmental conditions.
- IP65 Waterproof & Dustproof Rating: With an IP65 rating, the inverter is fully protected against water ingress and dust accumulation, maintaining optimal performance throughout its 25-year service life.
- Integrated Streamlined Case Design: Featuring an elegant appearance, the inverter blends seamlessly into any installation, enhancing both aesthetics and functionality.
- Lightweight Construction: Weighing just 11 kg for the 5 kW variant, this inverter is easy to handle and install, utilizing a dual-in-line wiring method that simplifies even single-person installations.
- Industrial-Grade Components: Equipped with top-notch industrial-grade components, the eastups Solar Inverter boasts a 25-year design life, providing you with peace of mind and long value.
High Conversion Efficiency & Overload Capacity
- Up to 98.4% Conversion Efficiency: Boasting an impressive 98.4% conversion efficiency, this inverter maximizes the energy harvested from your solar panels, translating into increased savings and profits.
- Internal Double Boards Design: The innovative double boards design eliminates wiring terminal connections, significantly reducing failure rates and ensuring long-term continuous power generation.
- Weak Grid Adaptive Mechanism: Equipped with a self-adaptive the inverter seamlessly operates even in conservative grid environments, ensuring reliable performance in harsh conditions.
- Wide MPPT Range: Supporting a wide MPPT range of 90 ~ 550 V with a 600 V withstand voltage, this inverter can handle input voltage fluctuations with ease, maximizing power generation benefits.
Easy Operation & Intelligent Monitoring
- Remote Wireless Transmission & Cloud Storage: Real-time transmission of power generation and operational data to the cloud allows for seamless monitoring, enhancing system performance.
- One-Click APP Configuration: Simplifying system management, the eastups Solar Inverter supports one-click configuration via a dedicated smartphone app, enabling real-time queries and convenient operation.
- Accurate Meter Communication Interface: With support for meter communication interfaces, users can access more precise power generation data, ensuring maximum profitability.
- Remote Software Upgrade & Troubleshooting: Facilitating remote software upgrades, parameter settings, and troubleshooting queries, this inverter significantly reduces operation and maintenance costs. Advanced Control Features**: Including grid remote power control, dry contact control, and sound & light alarm functions, the inverter offers comprehensive control and monitoring capabilities for added safety and convenience.
Technical Specifications:
| Model |
EA3KSI-D |
EA3.68KSI |
EA4KSI |
EA4.6KSI |
EA5KSI |
EA6KSI |
EA7KSI |
| INPUT (DC) |
| Max. input power |
3900 W |
4800 W |
5200 W |
6000 W |
6500 W |
7800 W |
7800 W |
| Max. input voltage |
600 V |
| Start-up voltage |
120V |
| MPPT voltage range |
90 – 550 V |
| Rated input voltage |
360 V |
| MPPT voltage range at full load |
120 – 480 V
|
140 – 480 V
|
150 – 480 V
|
180 – 480 V
|
190 – 480 V
|
230 – 480 V
|
270 – 480 V |
| Max. input current |
15 A × 2 |
| Max. short circuit current |
20 A × 2 |
| Number of MPPTs |
2 |
| OUTPUT (AC) |
| Max. output power |
3000 W |
3680 W |
4000 W |
4600 W |
4900 W (AUS)
5000 W (EUR)
|
6000W |
7000W |
| Max. output current |
13 A |
16 A |
17.4 A |
20 A |
21.3 A (AUS)
21.8 A (EUR)
|
26.1 A |
30.5 A |
| Rated grid voltage |
Single phase 230 Vac |
| Grid voltage range |
180 – 280 Vac |
| Rated grid frequency |
50 / 60 Hz |
| Grid frequency range |
45 – 55 Hz / 55 – 65 Hz |
| THD |
< 3% (rated output power) |
| DC component |
< 0.5% × rated output current |
| Power factor |
> 0.99 (rated output power) |
| Power factor adjustable |
0.8 leading ~ 0.8 lagging |
| EFFICIENCY |
| Max. efficiency |
97.8% |
| European efficiency |
97.3% |
| OTHERS |
| Protections |
Islanding protection, output short-circuit protection, leakage current protection, DC reverse polarity protection, DC input impedance detection, DC switch |
| Communications |
RS485, Wi-Fi / Ethernet (optional), GPRS (optional) |
| Display |
LED indicators |
| Self-consumption at night |
< 0.5 W |
| IP rating |
IP 65 |
| Cooling |
Natural cooling |
| Installation method |
Wall-mounted |
| DC wiring terminal |
MC4 |
| AC wiring terminal |
plug and play |
| Standards |
IEC/EN 62109-1, IEC/EN 62109-2, VDE 0126-1-1, VDE AR-N-4105, AS/NZS 4777.2, CEI 0-21, EN 50438, IEC 61683, IEC 61727, IEC 62116, ABNT NBR 16149, ABNT NBR 16150
|
| Operating temperature |
-25℃~ +60℃ (> 45℃ downgrading) |
| Relative humidity |
0% ~ 100% (non-condensing) |
| Altitude |
4000 m (> 2000 m downgrading) |
| Noise |
< 40 dB |
| Dimensions (W × D × H) (mm) |
370 × 126.5× 420 |
| Packaged dimensions (W × D × H) (mm) |
440 × 205 × 490
|
| Net weight (kg) |
10.9 |
| Gross weight (kg) |
12.5 |
Disclaimer:
● These data in this document are tested under specified conditions. It may result in difference between actual results and these data due to some uncertain factors. The statement about this product is for reference only. It makes no representation or warranty.
● All specifications are subject to change without notice.
