Summary

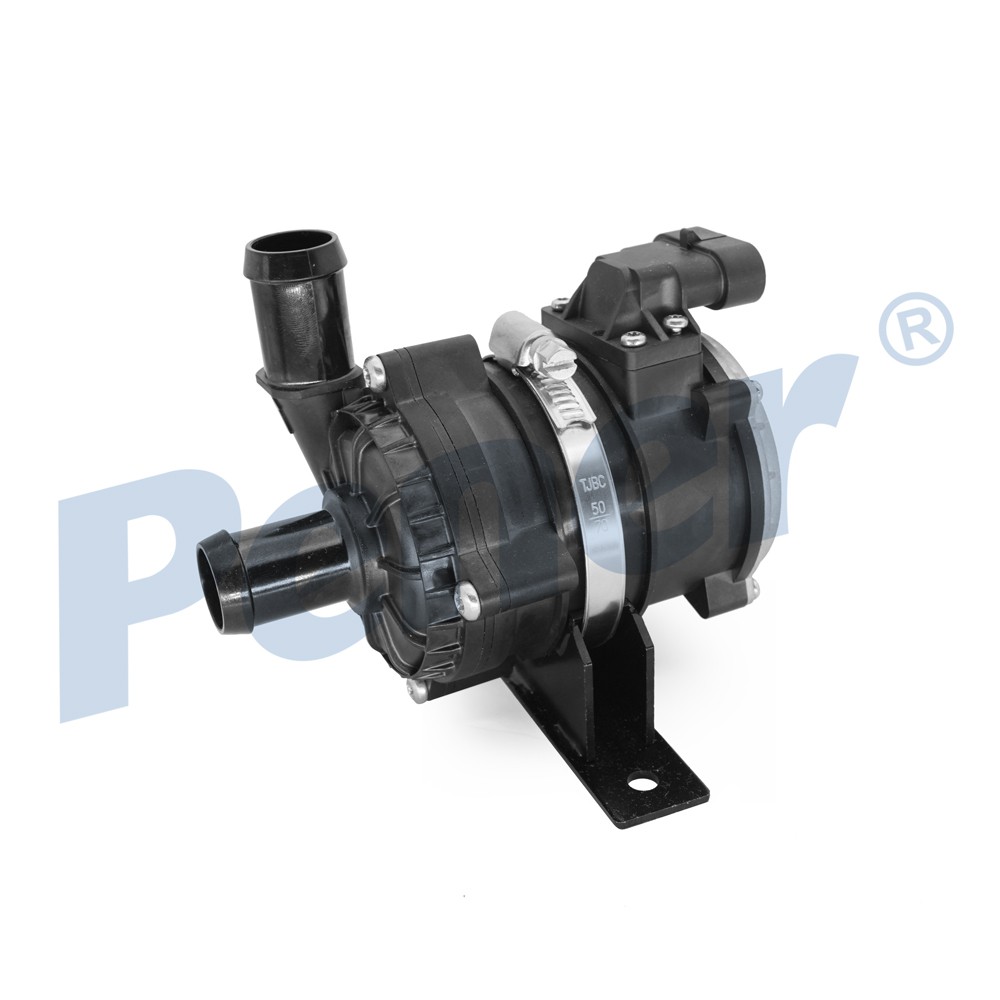

ECP80 12V High-Efficiency Brushless DC Motor ensures reliable performance with built-in overvoltage and undervoltage protection. Designed for industrial applications, it operates efficiently in extreme environments (-40°C~105°C) with low noise ≤45dB. Offering a long service life of ≥20000h, this IP67-rated motor is ideal for energy systems requiring durability and precision. Compatible with 50% glycol aqueous solution, it supports a wide operating voltage range (DC 9~16V), making it suitable for advanced battery and renewable energy applications globally.More
Specifications
Rated voltage:
DC 12V(24V)
Protection level:
IP67
Working environment:
-40°C~105°C
  • ECP80 12V High-Efficiency Brushless DC Motor with Overvoltage & Undervoltage Protection for Industrial Applications
  • ECP80 12V High-Efficiency Brushless DC Motor with Overvoltage & Undervoltage Protection for Industrial Applications
  • ECP80 12V High-Efficiency Brushless DC Motor with Overvoltage & Undervoltage Protection for Industrial Applications
  • Rated voltage :DC 12V(24V)
  • Rated current :6.7A(3.3A)
  • Operating voltage:DC 9~16V(18~32V)
  • Rated power:80W
  • Working environment:-40°C~105°C
  • Working medium:50% glycol aqueous solution
  • Protection level:IP67
  • Working noise:≤45dB(Distance 1m)
  • Working life:≥20000h
  • Weight:0.8kg
  • Protection function:Blocked rotation, reverse connection, under voltage, over voltage, over current, over temperature, idling.

Working curve ▼

1

Lift Efficiency

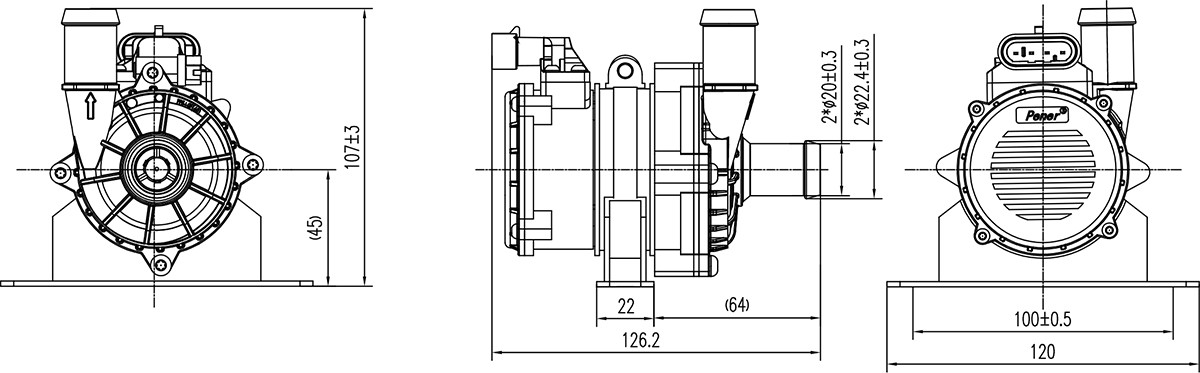

Dimensions ▼

2

automotive intelligent control chassis, thermal management electronic pumps, electric cylinder modules, commercial vehicle air brake valves, cab tilts, new energy electronic water pump, AMT clutch actuator
