Elecnova High Performance Lithium Ion Battery System Large Capacity LifePO4 Lithium Management Battery with Built-in BMS

Shanghai Elecnova Energy Storage Co., Ltd.

ShangHai China

Summary

No.1601377366109

$56386.00

Specifications

System Energy Range:

200-500 kWh

Capacity:

280AH

System Voltage Range:

500~1000 V

INQUIRY

Description Download

Key attributes

Industry-specific attributes

Battery Type

LiFePO4

Grid connection

Off grid, Hybrid grid, On grid

Other attributes

Model Number

ECO-E233LS

Brand Name

Elecnova

Place of Origin

Jiangsu, China

Dimension (L*W*H)

1050*1,350*2,400 (mm)

Weight

2,500kg

Communication Port

rs485, Ethernet

Protection Class

ip55

Cooling

Liquid Cooling

Energy Conversion Efficiency

≥90%

Charge/Discharge Rate

0.5P

Discharge Depth

95%DOD

OEM/ODM

Accepatable

Application

Industrial

Keywords

Cabinet Energy Storage

Capacity

233KWH

Cycle life

8000 Times

Usage

Industrial Commercial

BMS

Built-in BMS Protection

Packaging and delivery

Selling units

Single item

Single package size

120X140X245 cm

Single gross weight

2550.000 kg

DC Side
Cell Type			LFP280Ah
PACK			46.592kWh/1P52S
Battery System			232.96kWh/1P260S
Voltage Range			728~936Vdc
PACK Ingress Rating			IP65
AC Side
Rated Power			100kW
Max. Power			110kW
THDi			＜3%
DC Ratio			＜0.5%Ip
Nominal Voltage			400Vac/3P+N+PE
Nominal Frequency			50/60 Hz
General
System Efffficiency			≥90%
Charge/Discharge Rate			0.5P
DoD			95%
SOC Accuracy			＜3%
Cycle Life			≥8,000 times
Switching Time			＜100ms
Connectivity			Ethernet /RS485
Ingress Rating			IP55
Cooling			Active liquid cooling
Operating Temperature			'-25℃~55℃
Humidity			5-95%RH, non-condensing
Noise			≤75dB
Altitude			≤2,000m (derating above 2,000m)
Fire Safety			Aerosol
Dimensions (WDH)			1,0501,3502,400 (mm)
Weight			2,570kg

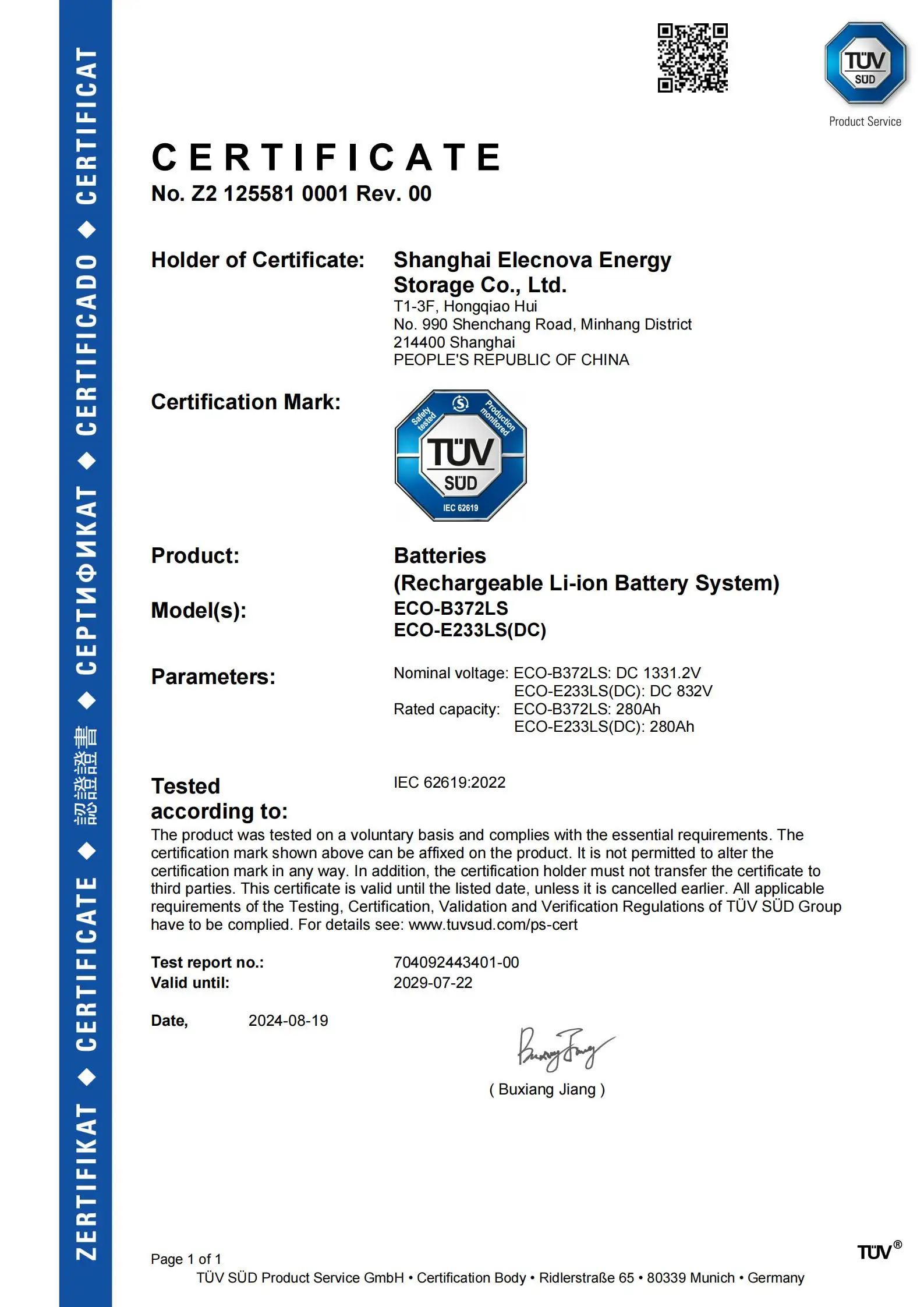

Compliance			UN38.3, IEC62477, IEC61000, IEC62619, IEC63056, UL9540A, EN50549

Shanghai Elecnova Energy Storage Co., Ltd. is a technology-based enterprise who focus on overall solutions for erstorage systems.Our company have the overall supporting capability for the system integration of PACK, PCS, BMElecnova aims to meet the diversified energy requirements of segmented markets and customers, with products athe core and quality as the cornerstone. We are committed to providing high-quality customized products and seivarious energy consumption scenarios on the power generation side, grid side, and user side.

Q&A

Q:Who are we? Are you trading company or manufacturer?
We are manufacturer.We are based in Shanghai, China, start from 1998. There are total about 600+ people in our company.

Q:Can you supply OEM &ODM service?
A:Yes, but there is a minimum order quantity required.

Q:Can you ship your battery products by sea or by air?
A:We have long-term cooperated forwarders who are professional at battery shipment.

Q:How long is the warranty?
A:Our warranty is from 3~10 years.

Q:Why should you buy from us not from other suppliers?
Elecnova is a professional manufacturer of energy storage system .Our company specializes in the production of PCS,Battery PACK,BMS,EMS and all in one cabinet.

Q:How do you provide after-sales service?
A:We have a local after-sales center in Europe that can provide repair and replacement.

Q:Can I get a sample?
A:Yes, please leave your contact information and our sales manager will contact you soon.
