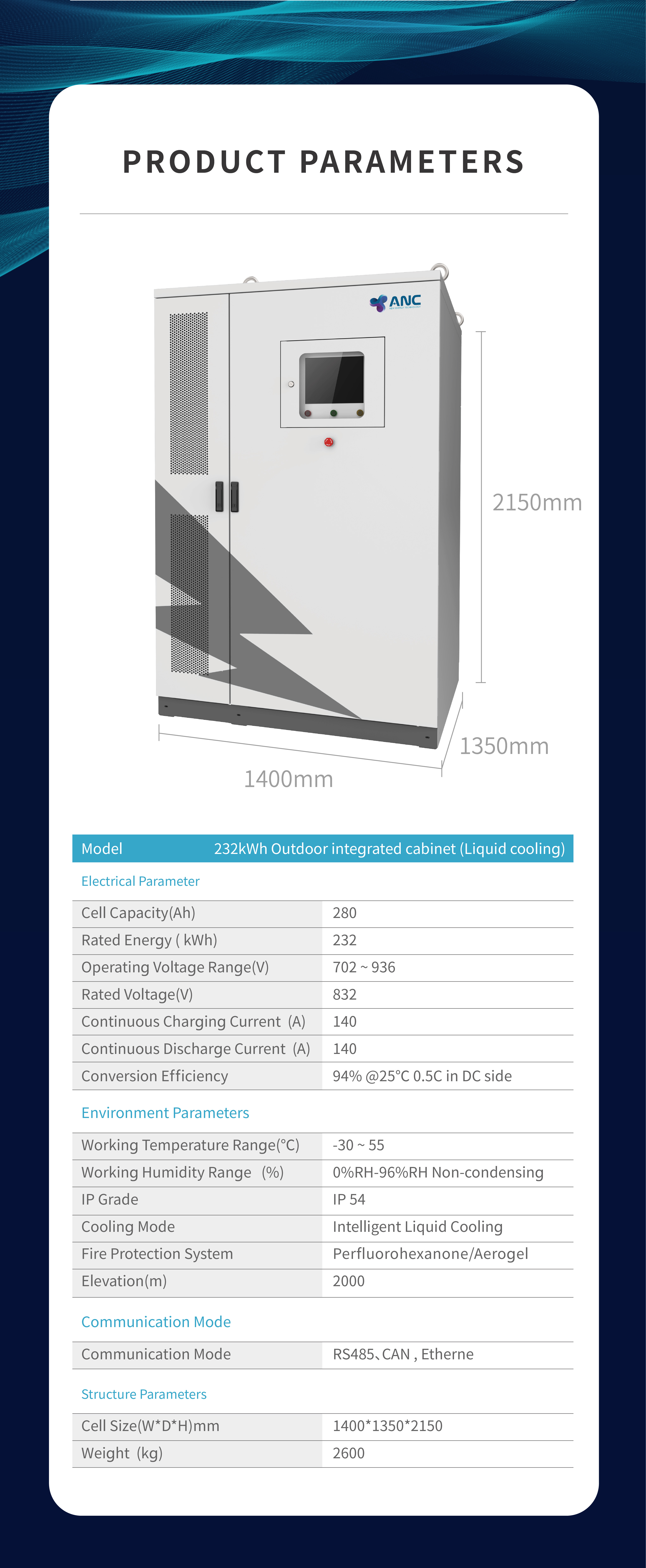

ELECTRICAL PARAMETER | ||||||
Cell Capacity(Ah) | 280 | Rated Energy( kWh) | 232 | |||
Working Voltage Range(V) | 702 ~ 936 | Nominal Voltage(V) | 832 | |||
Sustainable Charging current | 140 (A) | Sustainable Discharging current | 140（A） | |||
Transfer Efficiency | DC Side 94% @25℃ 0.5C | |||||
ENVIRONMENTAL PARAMETER | ||||||
Work Temperature Range(℃） | -30 ~ 55 | Work Humidity Range (%) | 0%RH-96%RH Non-Condensing | |||
Protection Grade | IP54 | Cooling Type | Intelligent liquid cooling | |||
Fire System | Perfluorohexanone/Aerogel | Altitude (m) | 2000 | |||
COMMUNICATIONS PORT | ||||||
Communication Protocol | RS485、CAN、Ethernet | |||||
STRUCTURAL PARAMETER | ||||||
Dimension (W*D*H)mm | 1400*1350*2150 | Weight (kg) | 2600 | |||
ADVANTAGE | ||||||

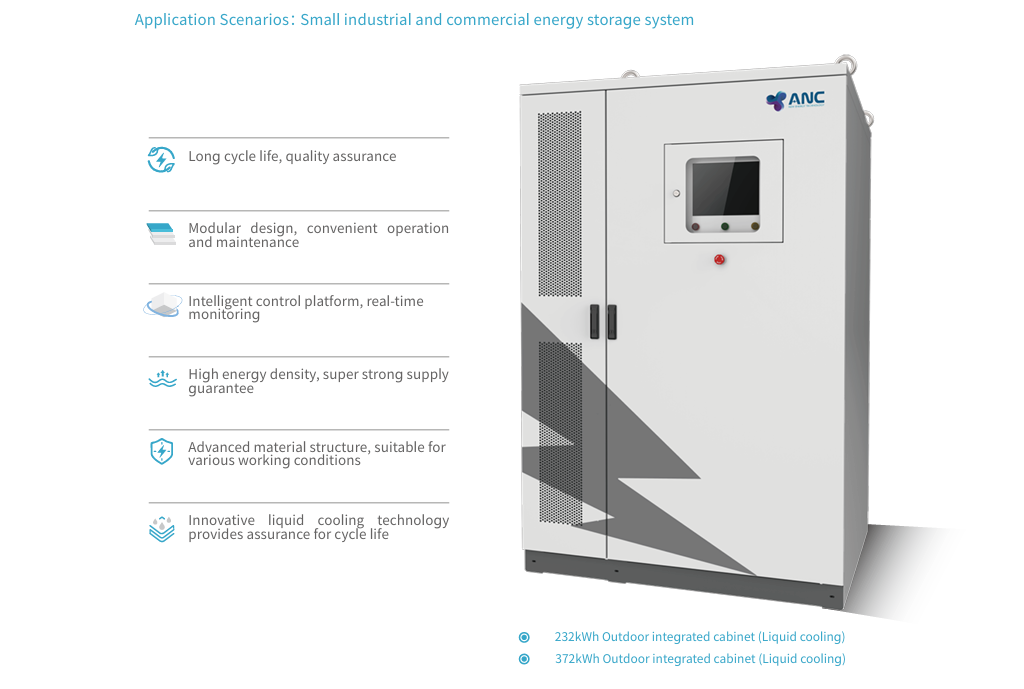

*Long cycle life with stable quality. *Modular design for convenient operation and maintenance. * Intelligent control platform, real-time monitoring. *Innovative liquid cooling to ensure battery life. *Advanced material structure, adapt to various working conditions. *High -energy density, super strong guarantee. | ||||||
