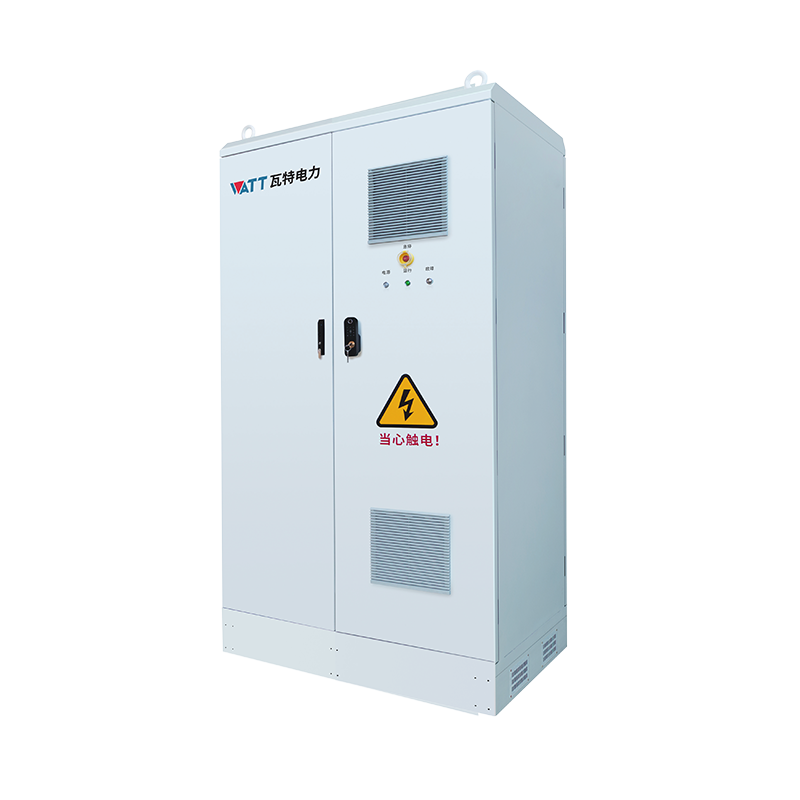

30kW/100kWh
Rated energy 100kWh
Rated power 30kW
The rated voltage is 400V
Rated current 43A
Power grid type 3L+N+PE
Total harmonic distortion rate of power network ≤3% full load
The maximum conversion efficiency is 96%
Overload capacity 110% long term
Rated frequency 50Hz
Cooling system Industrial grade air conditioning/forced air cooling
Fire protection system HFC-propane gas fire protection
Cell cycle life 6000 @ 25,0.5 CP / 0.5 CP
Noise ≤60dB
Working environment temperature -20~50℃
Protection class IP54 (Outdoor)
Wide * * 1350 * 1100 * 2200 mm high
