ESG Deep Cycle Storage Batteries AGM 12V100Ah Sealed Lead Acid UPS Deep Cycle Solar Battery
Why choose us?
Why choose us?
Why choose us?

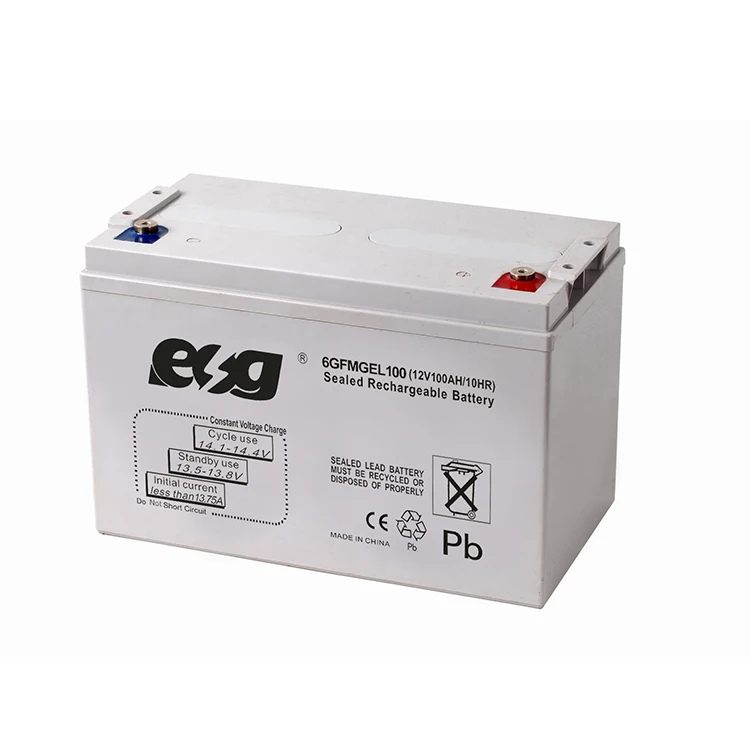

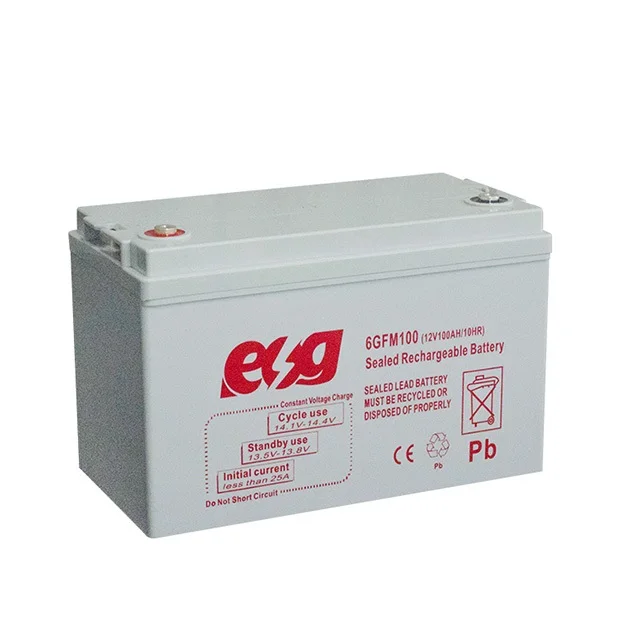

ESG Deep Cycle Storage Batteries AGM 12V100Ah Sealed Lead Acid UPS Deep cycle solar Battery
——————————————————————————————————————————————————————————————
ESG batteries are designed to meet the requirements of frequent cyclic and high temperature applications.
Our R&D team combines the market’s demand with design optimization, precise components and state-of-the-art
manufacturing process to produce the most economic batteries to ffill the requirement for many different applications,
including telecommunications, home medical equipment (HME)/ mobility, industrial and utility applications
where frequent deep cycle are required and minimum maintenance is desirable.
——————————————————————————————————————————————————————————————
12v125ah lead acid battery
Why Choose Us ?
Advantages
Please pay attetion the battery storage temperature ,Regular charging and maintenance
| Temperature | Shelf Life |
0℃(32 F) TO 25℃(77F) 21℃(70F ) TO30℃(86F) 31℃(88F)TO 40℃(104F) 41℃(108F)TO60℃( 122F)
| 12months 9months 5months 2.5month |
Lead-acid battery consists of : positive plate, negative plate, electrolyte, AGM separator, battery slot, battery cover, pole, pouring cap and other components.
We carry out technical improvements lead-acid battery based on the introduction of created new maintenance-free batteries .
They can use for UPS float standby systems, also can meet the solar energy systems of daily charge and discharge all the time, and deep cycle work requirements .
Maintenance free
As it is value-regated .sealed and glass mat is utilized .acid is trapped inside . so refilling is not needed and is leak proof.
No memory effect
Some batteries .say nickel –cadmium batteries will become conditioned to provide less power offer repetitious short usage /discharge
Low self discharge
The self –discharge rate for TOYO SLA . battery is about 2-3% per month at room .temperature compared with 20-30% for other common battery systems .
Longer service life
Utilized thick and massive calcium grate ensure that TOYO SLA battery has a longer service life over 15years .
High discharge rate .
Since the internal resistance is low .the battery can provide high rate of discharge
Application
ESG Deep Cycle Storage Batteries AGM 12V100Ah Sealed Lead Acid UPS Deep cycle solar Battery
Parameter
ESG Deep Cycle Storage Batteries AGM 12V100Ah Sealed Lead Acid UPS Deep cycle solar Battery
ESG Deep Cycle Storage Batteries AGM 12V100Ah Sealed Lead Acid UPS Deep cycle solar Battery
Construction
1. Positive electrode plates
Positve plates are made of lead –calcium alloy with special chemical froma
2. Negative Electode plates
Negative plates are made of lead – ehemical froma
3. separator
The glass – fibre separator in HENDA SLA battery are made with advanced technology –this high porosity of
the separators retains adequate electrolyte for reaction with active matterial of the plates .
4.safe valve
The valve system which operaters from 1 psi to 6psi (0.07-0.43kg/cm3) is designed to relaease excess gas and keep
the internal pressure within the optmum range of safety .it protects the negative plates from contamination from oxygen
in the air valve are 100%visually inspected during battery production
If the internal pressure is increased to an abnormal level during overcharge ,the safety valve ill be opened to release gas .
it thus eliminates the danger of repture .once it has opened m it automatically closed in preparetion for future excessive increase in pressure.
5. Terminal
Depending on the battery model in MICRO series ,the terminals may b e fasten rype , bolt –and nut type , pressue
contact type ,cable –and connector type or other special types
Terminals of MEDIUM series and MACRO series are threaded –insertion type of bolt –and nuts types
Construction of threaded-insert strud
3.case
For 6v ,8v and 12v batteries ,standard container are manufactured from ABS plastic resin (94HB),It is optinal to use flame retardant ABS plastic resin (94vo)
Each 6v battery has 3cells .8v battery have 4cells and 12vbattery has 6cells
7Epoxy
The ABS platic cover and container are sealed by a special expoxy that is acid resistant .
ESG Deep Cycle Storage Batteries AGM 12V100Ah Sealed Lead Acid UPS Deep cycle solar Battery
argeable battery
Our work shop
ESG Deep Cycle Storage Batteries AGM 12V100Ah Sealed Lead Acid UPS Deep cycle solar Battery

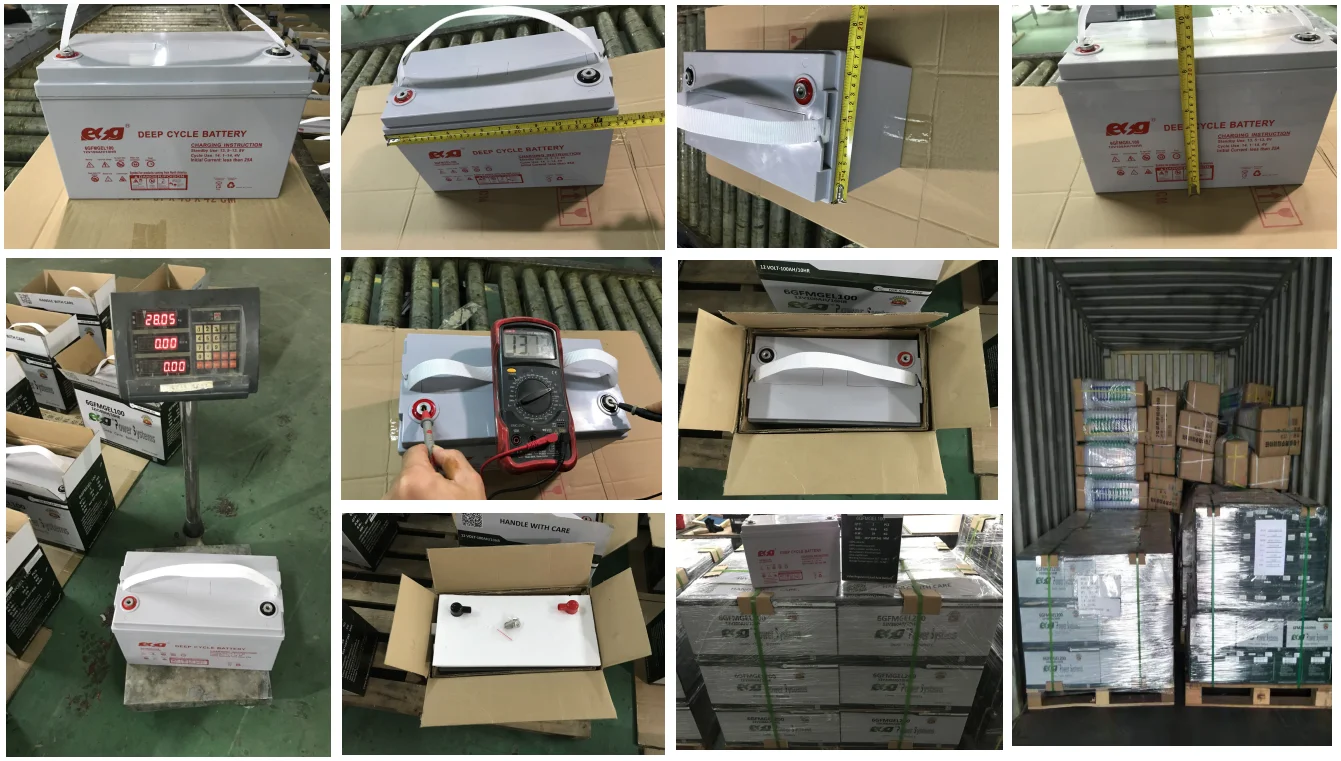

QC
ESG Deep Cycle Storage Batteries AGM 12V100Ah Sealed Lead Acid UPS Deep cycle solar Battery
Certificate

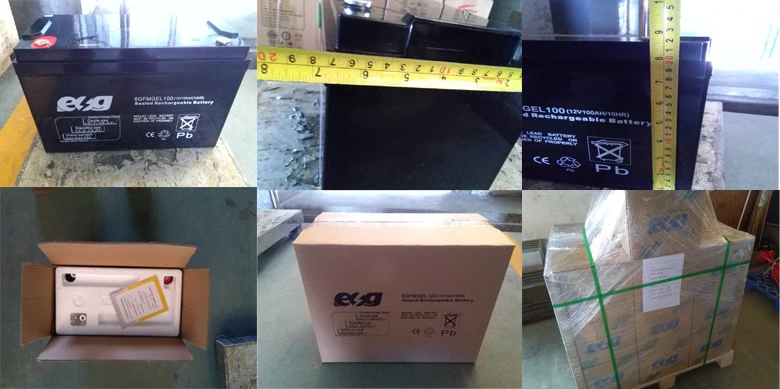

Packing
1 pc/2 pcs/4 pcs each carton with wooden pallet or as your request
ESG Deep Cycle Storage Batteries AGM 12V100Ah Sealed Lead Acid UPS Deep cycle solar Battery
12V175ah deep cycle maintenance free sealed lead acid storage agm sla ups solar system industrial vrla long life rechargeable battery front termi ESG Deep Cycle Storage Batteries AGM 12V100Ah Sealed Lead Acid UPS Deep cycle solar Battery
About ESG
ESG Company Information
Factory More Details
ESG Deep Cycle Storage Batteries AGM 12V100Ah Sealed Lead Acid UPS Deep cycle solar Battery
Main fair
12V125ah deep cycle maintenance free sealed lead acid storage agm sla ups solar system industrial vrla long life rechargeable battery front battery
FAQ
Q1: What’s your payment terms?
A1:We accept almost all payment terms,such as T/T,L/C,DA,DP,Western Union,MoneyGram
Q2: OEM Service
A2: We can print your LOGO on Battery case , if your quantities reached 100PCS , We also can print your LOGO on Battery carton.
Q3: Warranty process.
A3: We provide 1 ~ 5 years different warranty.
Q4:How long is your delivery time?
A4:Normally,the whole production cycle need 15 days from material to finished products,but we can send goods within 7 days,because we have lead plate in stock.
Q5: Why our price is competitive ?
A5: Because the lead plate , battery case etc , all the battery accessories all from our own factory.
