6V/12V 1A-5A Mini mppt mini solar charge controller
*Product Introduction: 6V/12V 1A-5A Mini mppt mini solar charge controller
This product is a new generation intelligent controller integrate with charge and discharge function, it has strong stability and long lifetime. This series with battery voltage automatic identification function, PWM charging mode and comprehensive protection function,such as overcharge, over-discharge, over-current, short-circuit, reversed.
*Function: 6V/12V 1A-5A Mini mppt mini solar charge controller
1.The model integrate household type and street lamp type design in one controller.
2.The controller can be applied to 6V/ 12V battery system.
3.The controller has light control and time control (street lamp type).
4.The controller has many protective measures,such as overcharge, discharge, over current, short circuit, reversed.
5.The controller with precise design and high protective measures.
6.With three charging mode, Strong charging, equilibrium charging, floating three-step PWM control are included.
V*Specifications: 6V/12V 1A-5A Mini mppt mini solar charge controller
Model | ESG6V or 12V 1A-5A |
Rated Voltage | 6V/12V |
Strong charging pressure | 7.4/14.8V |
Equilibrium charging | 7.25/14.5V |
Float charging pressure | 6.85/13.7V |
Under voltage | 5.4V/10.8V |
Under recover voltage | 6.5/13V |
Non –load current | ≤6mA |
Charging circuit voltage drop | ≤0.2V |
Discharge circuit voltage drop | ≤0.1V |
Maximum charging current | 1A/3A/5A |
Maximum load current | 1A/3A/5A |
Controller protection | overcharge, over-discharge, over-current, short-circuit, reversed |
Charging Mode | PWM Charging Mode |
Using elevation | ≤5500m(more than 2000m should be used in lower power |
Working temperature | -20℃~55℃ |
Gross Weight (KG) | 0.05KG |
Net Weight (KG) | 0.035KG |
Product size(Length*Width*Height) | 79.5mm*52mm*21.5mm |
Protection level | IP22 |

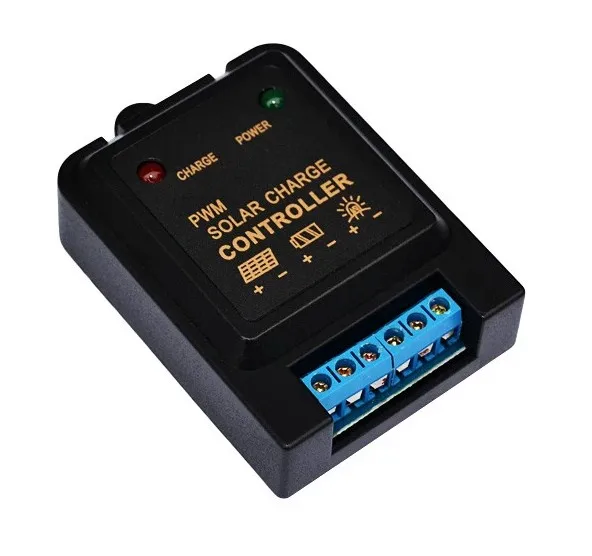

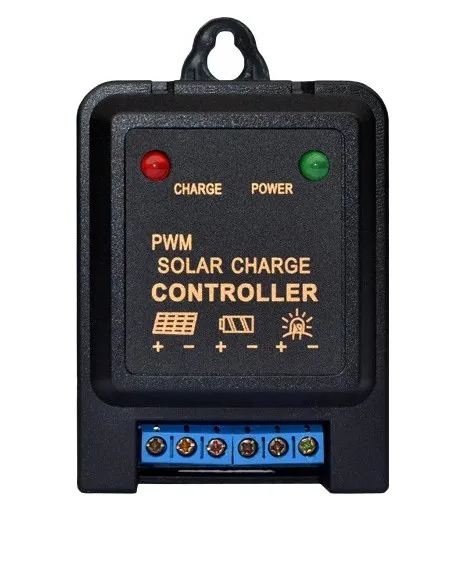

Product display 6V/12V 1A-5A Mini mppt mini solar charge controller
Packing 6V/12V 1A-5A Mini mppt mini solar charge controller

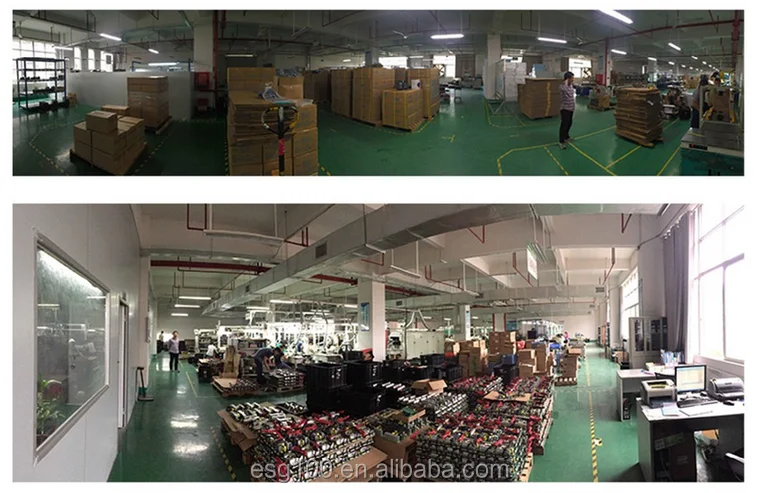

Production Line

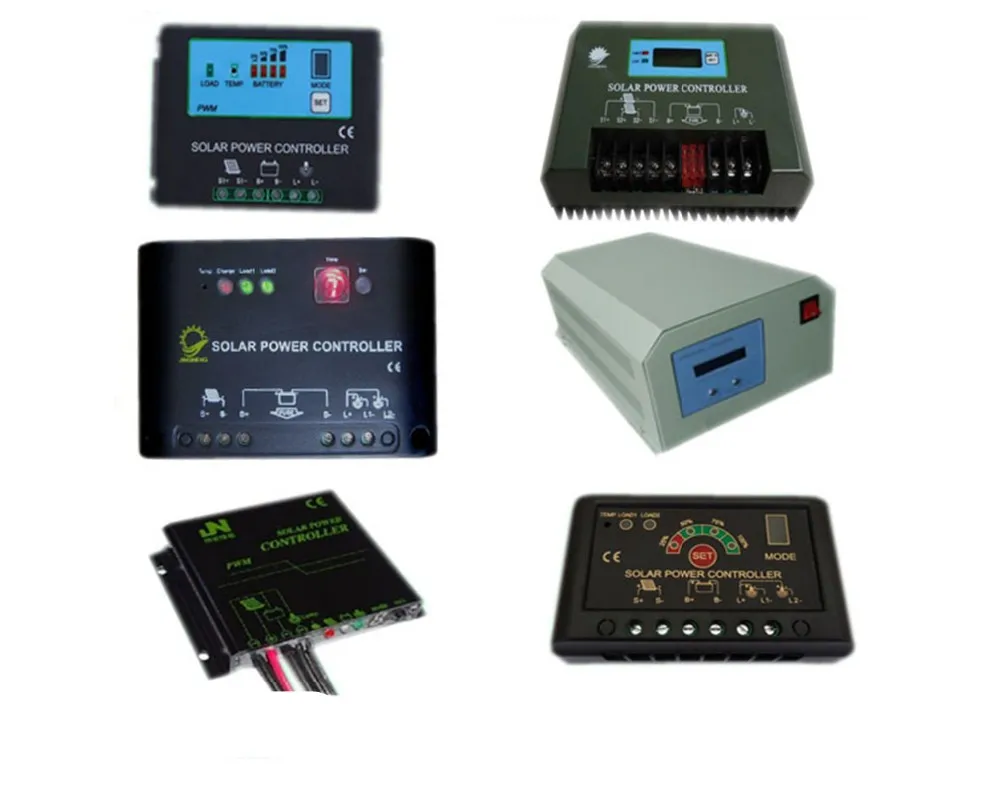

More products
