ESG ON-grid and off-grid system 10KW 15KW 20KW 30kw complete household use solar power system
ESG ON-grid and off-grid system 10KW 15KW 20KW 30kw complete household use solar power system

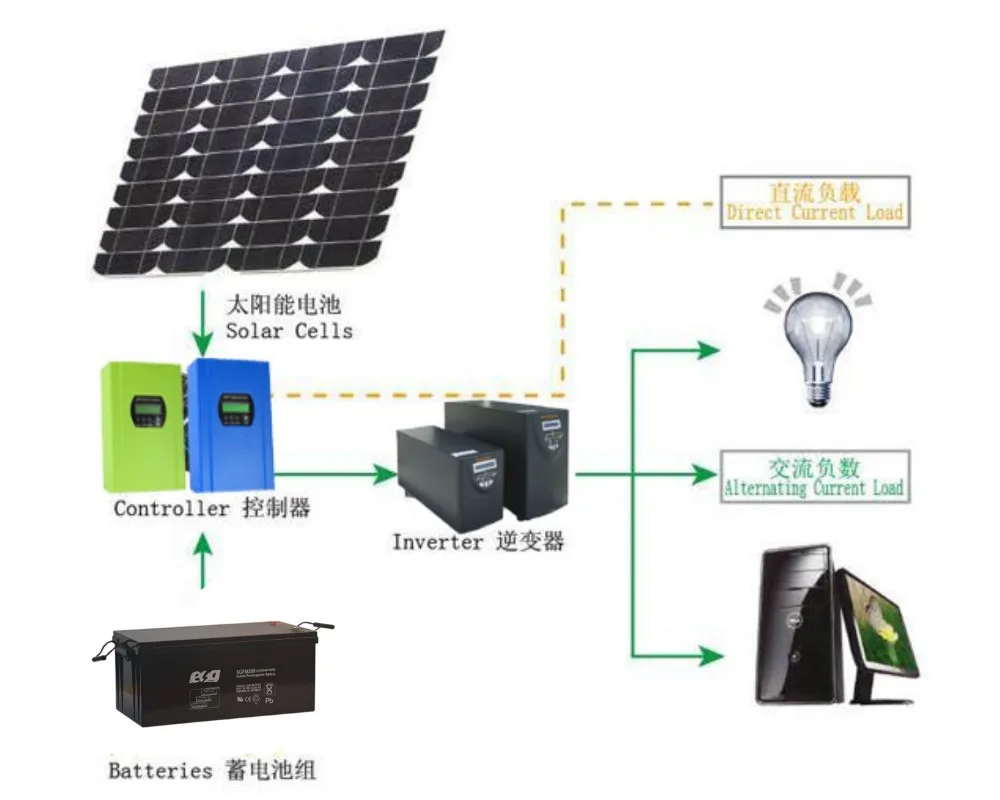

ESG Series - Off Grid Solar Systems 300W - 5000W
Detailed seperated specifications of 10000W solar system

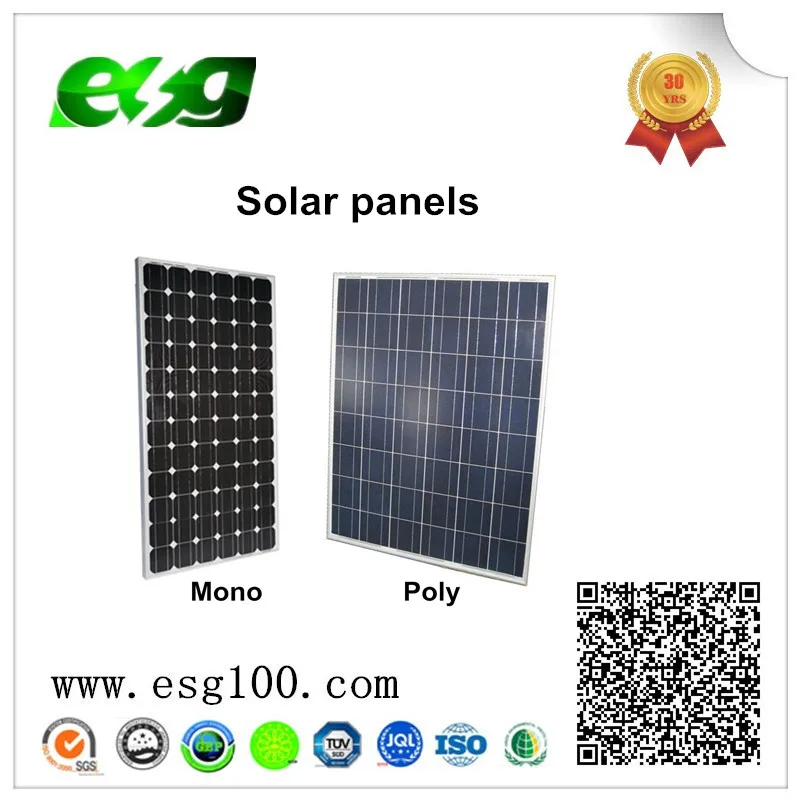

Solar Panels:
Electrical characteristics:
| LRP150M |
Max-power:Pm(W) | 350W |
Max-power voltage: Vm(V) | 36.0V |
Max-power current: Im(A) | 8.33A |
Open-circuit voltage:Voc(V) | 22.3V |
Short-circuit current: Isc(A) | 9.17A |
Max-system voltage(VDC) | 1000V |
Operating temperature(℃) | -40℃~+85℃ |
Power tolerance | 0~ +6W |
*STC condition:1000 W/m2,1.5AM and 25℃ cell temperature.
Mechanical characteristics:
Type of solar cell | Monocrystalline/Polycrystalline |
Lay up of solar cell | 36(4*9)PCS |
Dimension of solar module | 1480*665*30mm |
Gross weight of solar module | 11.1Kg |
Front Cover | Low-iron Tempered glass/ 3.2mm |
Frame | Anodization aluminum |
Junction Box (protection degree) | IP65 |
Hailstone Impact | 25mm at 23m/s |
Qty/CTN | 2PCS |
Solar controllers:
Technical parameters
Rated voltage | 12v auto |
Strong charging pressure | 14.8V |
Equilibrium charging | 14.5V |
Float charging pressure | 13.7V |
Under voltage protection | 10.8V |
Under recover voltage | 13V |
Maximum charging current | 20A |
Maximum load current | 20A |
Over load protection | 3 s recover 1.2 times, 10 s recover 1.5 times , more than two times need manual recover |
Maximum wire diameter | 4mm² |
Working temperature | -40-60℃ |
Weight (gross) | 0.3KG |
Product size | 136*92*31mm |
Protection level | IP56 |
Solar Inverters:
Specification:
Model | PN1501 | |
Rated capacity(W) | 500W | |
Input | Commercial Power range (VAC) |
100/110/120/127/220/230(+25%,-35%) |
Frequency (Hz) | 60/50±10% | |
Output | AVR voltage range(VAC) |
100/110/120/127/220/230±10%(Auto-sensing) |
Transfer time | Typical:5ms(Including detection time) | |
Battery |
DC Voltage |
12VDC |
Output | Waveform | Pure sine wave |
Frequency(Hz) | Commercial power supply: shared frequency with the commercial inversion state:60/50±0.5 | |
Protection |
Overload | IPS automatically shut down if overload exceeds 120% of normal value for 10 seconds, IPS automatically resumes work if overload comes to rated load. |
Battery Type | Type
| Sealed, maintenance-free lead acid |
Recharge current | 15A(Maximum) | |
Battery protection | Automatic self-test, discharge protection, over-charge protection, smart management system. | |
Size | Size(mm) D×W×H |
320×150×210 |
External Size(mm) D×W×H |
494×420×345(2 piece) | |
Net weight(kg) | 9 | |
Gross weight(kg) | 10 | |

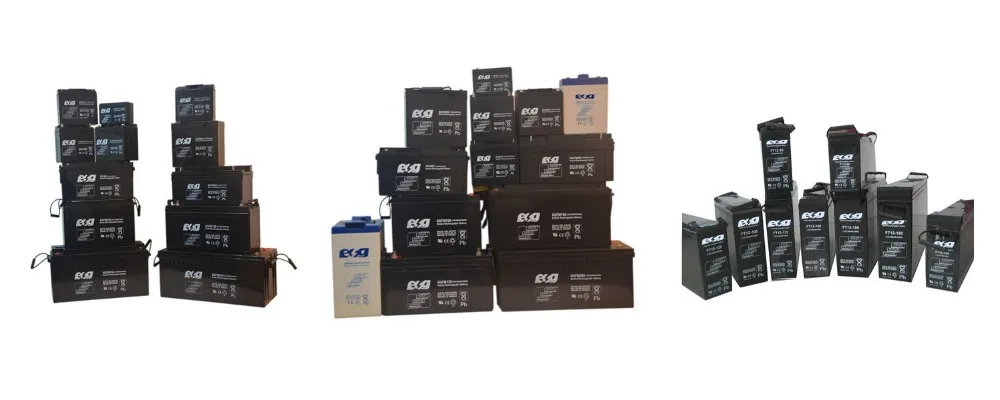

Solar batteries: Lead acid battery VS Lithium battery
Above technical data only for reference, if any modified, please see the real object as standard.
About ESG
Guangzhou ESG New Energy Technology Co.,Ltd., (Foshan ESG, Hongkong ESG), is a professional production enterprises who is research, development and sales. We major in R & D, production of batteries, solar panels, controllers, inverters and other new energy systems products. With the perfect industrial chain, the key technology, lead plates, battery case all are produce by ourselves.Details decide the quality and we fully adheres to the principle of "to be more excellence, quality is first, to fulfill commitments, the customer is supreme", to provide a "100% satisfied with the high quality products, competitive price, delivery date, and professional service." We have more than 1000 customers so far, have exported to more than 200 countries, with a good reputation over 30years.
Company show:
Certificates:
Our previous projects:
Our Certificates:
Process & QC
QC system :
1. Original material inspection : 99.9999% pure lead .
2. ABS Battery case testing : Anti - impact / Prevent Burst.
3. Meaure each battery acid electrolyte weight - Ensure the consistency of every battery
4. Charing & discharge testing : deep cycle working
5. Each battery inspection Before Shipping : Guarantee 100% pass rate.
Our client's feedbacks:
Our advantage
1.Competive price,completely production line,efficiently and strictly production.
2.30years good reputation history, ESG brand was seperated from Sino-Japanese joint venture government.
3.Top Quality,100% pass testing.
4.Different payment terms available:T/T,LC,DA,DP,OA,etc,.
5.Quick and safe delivery service.
6.1~5 years (base on which models you bought) quality warranty,professional after sales team will help you discuss the problems whenever.
Any interesting or doubts for our products please contact our sales team directly via Alibaba,welcome to visit our factory to check the samples and production line,our professional team will discuss your questions whenever.
