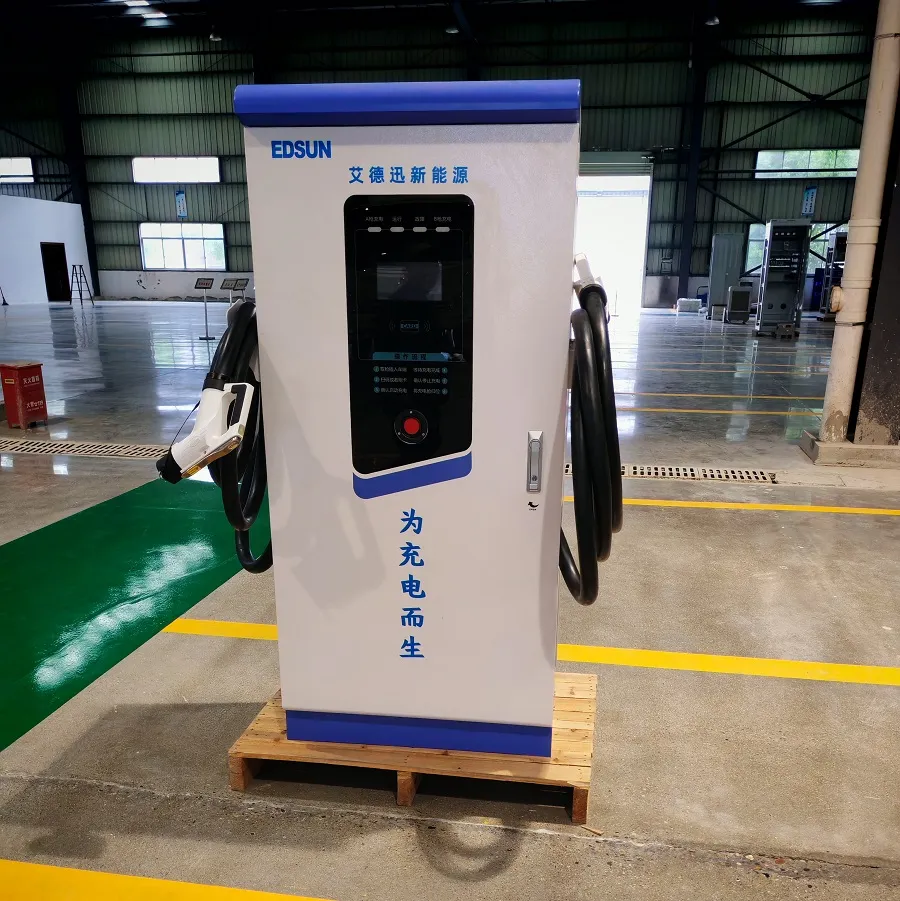

Parameter? | Model? | EDS-DC120k | |
Input? | Power Supply? | 3P+N+PE | |
Input Voltage | 400V/AC±15% | ||
Input Frequency | 50/60 Hz | ||
Input PF? | ≥0.98 | ||
Input Current Total Harmonics? | ≤5% | ||
Output | Output Rated Power? | 120kW | |
Output Rated Voltage? | 1000V/DC | ||
Output Rated Current? | 120A | ||
Output Voltage Arrange? | 150-1000V/DC | ||
Constant Output Power Voltage Arrange? | 300-1000V/DC | ||
Maximum Current of Each Charging head | 200A | ||
Current Arrange of Each Charging head | 5-200A | ||
Maximum Efficiency? | ≥95% | ||
Precision of Steady Current | ≤±1% | ||
Precision of Steady Voltage? | ≤±0.5% | ||
User Interface | Status Light | LED(Green , Yellow, Red) | |
LCD | 7 "Touch LCD Screen | ||
Charging Mode | POS,Scann ,Passcode | ||
Lenght of Charging Cable | 5m | ||
PCS Charging head | Two | ||
Communication | LAN | Yes | |
4G-LAN | Yes | ||
OCPP | OCPP1.6 | ||
Protection? | Short Circuit Protection | Yes | |
Over Load Protection | Yes | ||
Over Temperature Protection | Yes | ||
Leakage Protection | Yes | ||
Over and Under Input Voltage Protection | Yes | ||
Over and Under Output Voltage Protection | Yes | ||
Output Over Current | |||
Standard | IEC 61851-1:2017, IEC 61851-23:2014, EN 61851-24:2014,EN 61851-21-1:2018 | ||
Certificate | CE | ||
Environmental? | Operating Temperature | -20oC~+55oC | |
Storage Temperature | -40oC~+85oC | ||
Relative Humidity | ≤95% Dew Free | ||
Altitude | ≤2000m | ||
Environmental Conditions | Indoor or Outdoor | ||
Others | Cooling Mode | Air Cooling (Independent Air Duct) | |
Sound Volume | ≤65dB | ||
IP | IP54 | ||
Electric Energy Measurement | 1.0 Accuracy Grade | ||
Installation | Pole-mount | ||
Production Dimension | 585*750*1650mm (H*W*D) | ||
Net Weight | 300kg | ||
Package | Wooden box Package? | ||
