Summary

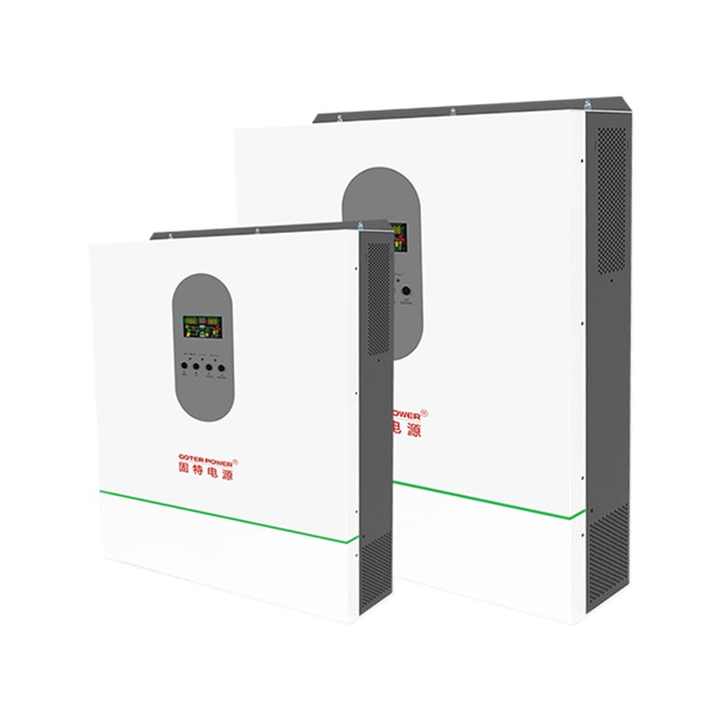

The Factory Direct 11KW Hybrid PV Solar Inverter is a high-efficiency, single-phase solar solution designed for residential and small-scale commercial applications. Delivering 240VAC output with a 98% efficiency rate, this lithium-compatible inverter supports MPPT solar charging for optimal energy harvesting. Ideal for off-grid and hybrid solar systems, it ensures reliable power conversion with a pure sine wave output and a wide MPPT tracking range of 60-500Vdc. Featuring a compact design (312 * 146 * 495 mm) and robust 48Vdc battery integration, it is perfect for sustainable home energy systems and renewable energy projects worldwide.More
Specifications
Application:
Off-Grid Solar System
Output Power:
11kw
  • Factory Direct 11KW Hybrid PV Solar Inverter Single Phase 240VAC Output MPPT Home Solar System Lithium Compatible Goter Power
  • Factory Direct 11KW Hybrid PV Solar Inverter Single Phase 240VAC Output MPPT Home Solar System Lithium Compatible Goter Power
  • Factory Direct 11KW Hybrid PV Solar Inverter Single Phase 240VAC Output MPPT Home Solar System Lithium Compatible Goter Power
  • Factory Direct 11KW Hybrid PV Solar Inverter Single Phase 240VAC Output MPPT Home Solar System Lithium Compatible Goter Power

Key attributes

Output Type
Single Phase
Inverter Efficiency
98%
Place of Origin
Guangdong, China
Model Number
SPI-11KW
Brand Name
Goter Power
Input Voltage
220VAC-240Vac
Output Voltage
220VAC-240VAC±5%
Output Current
23.9A
Output Frequency
50Hz/ 60Hz
Size
312 * 146 * 495 (W*D*H/mm)
Type
DC/AC Inverters
Weight
10.52KG
Feed into the grid voltage range
195-253VA
Waveform
Pure Sine Wave
Battery Votage
48Vdc
Constant Charging Voltage(Adjustable)
56.4Vdc
Floate Charging Voltage(Adjustable)
54Vdc
PV Charging Mode
MPPT
MAX.PV Input Power
2*5500W
MPPT Tracking Range
60~500Vdc
Best voltage
300~400V
MAX.PV Input Voltage
500Vdc

Packaging and delivery

Selling Units
Single item
Single package size
19.5X38.5X56.5 cm
Single gross weight
11.840 KG
