Nylon tubing (polyamide), referred to as PA tubing. It is a kind of synthetic fiber, with good physical and chemical and mechanical properties: abrasion resistance, can be used in the condition of sand, iron scraps; smooth surface, reduce resistance, can prevent rust and scale deposition; soft, easy it is curved, easy to install and easy to process. At the same time, it is steel. When a certain shape is needed, it can be made into a variety of shapes like a metal tube, and it does not require complicated equipment and tooling; it can withstand the corrosion of many chemical substances; it has stable dimensions and small permeability; Can be used as an insulator; the service life is very long, even for decades; good temperature resistance, can work in the environment of -40-115 ° C.
| Material | Polyamide 6 |
| Color | Grey (RAL 7037), black (RAL 9005) |
| Temperature Range | Min-40℃,Max125℃，Short-term150℃ |
| Flame-retardant | V2(UL94) |
| Properties | Soft and tough, medium wall thickness, glossy surface, anti-twist, high impact resistance, high mechanical strength, more uniform force than ordinary pitch hose, hose bending ability is stronger. Oil resistance, alkali resistance, weak acid resistance, friction resistance, black resistance to ultraviolet radiation, no halogen, phosphorus, cadmium, through the RoHS test |
| Applications | Mechanical building, heavy equipment, electric factory, underground, electric vehicle building etc. |
| Fit with | WQGD, WQGDM Tubing connector |
Pushing the tubing into the connector and its assembly is done. Push again until it can not complete its fixing so that it can reach some protection degree.
Normal wave
Ultra flat wave
Non-slit tubing
Slit tubing
1. High mechanical strength, good toughness, high tensile and compressive strength.
2. The fatigue resistance is outstanding, and the parts can still maintain the original mechanical strength after repeated bending.
3. High softening point and heat resistance.
4. The surface is smooth, the friction coefficient is small, and it is wear-resistant.
5. Corrosion resistance.
6. Self-extinguishing, non-toxic, odorless.
7. Excellent electrical properties, good electrical insulation.

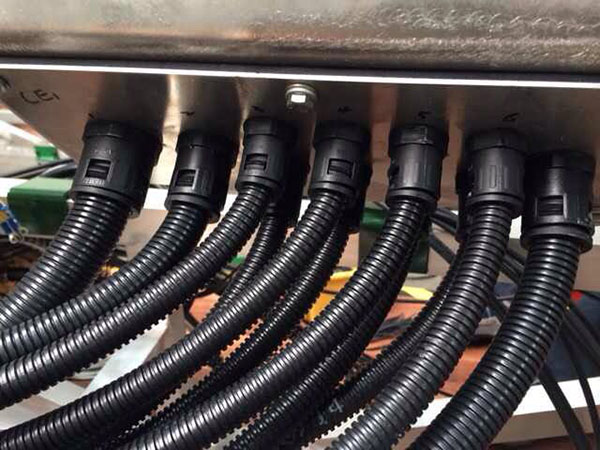

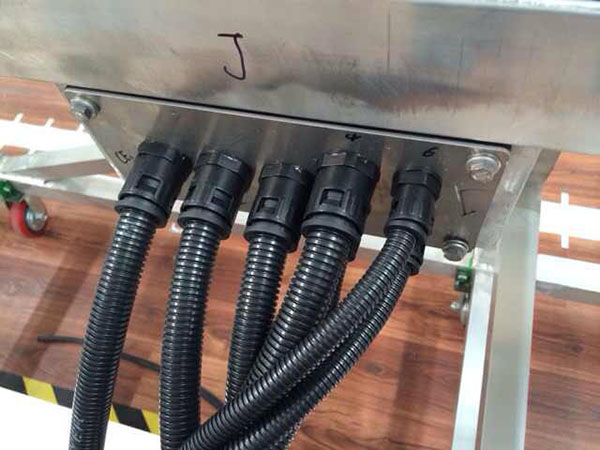

Below photos we are sharing for application used in one of our customer in machinery. The cables need to be protected under IP68 or IP69K against the water and dust when coming out of the control box, which can extend the life of cable usage.
