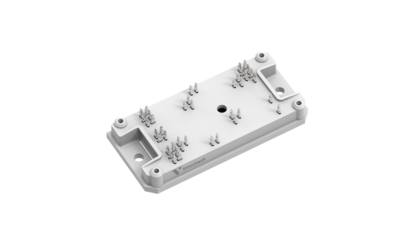

flow 1 Power Module 12mm/17mm Low Stray Inductance for Energy Storage and Battery Systems

Vincotech

China

Summary

flow 1 is a compact, baseplate-less power module available in 12 mm and 17 mm heights, designed for high efficiency and fast switching in energy storage and battery systems. Its low stray inductance minimizes voltage overshoot, while the lightweight, cost-effective design supports both clip-in and screw assembly. Featuring variable pin positioning for optimized electrical performance and PCM compatibility, flow 1 is ideal for applications requiring high thermal and electrical reliability in renewable energy and industrial power electronics.More

INQUIRY

Description Download

Housing dimensions

Height: 12 mm / 17 mm
Length: 82 mm
Width: 38 mm

2-clips

Fast, easy assembly
Widely used standard housing
Several versions / mounting options:
- 12 or 17 mm housing height
- Clip-in
- Screw assembly for solder and Press-fit pins
Variable pin position for very low inductivity
Compact, baseplate-less format
PCM is available

4-towers

Widely used standard housing
Several versions / mounting options:
- 12 or 17 mm housing height
- Screw assembly for solder and Press-fit pins
Variable pin position for very low inductivity
Easy assembly
Compact, lightweight, baseplate-less format
PCM is available
Convex pre-bent DCB for improved thermal connection

Vincotech

China

power modules for off-the-rack and tailored solutions
