| Part number: | 10-FE12APA015SH01-PB18E08Z |
|---|---|
| Product line: | flowPIM 1 + 3xPFC |
| Product status: | Series - Preferred |
| Break down voltage: | 1200 V |
| Nominal chip current rating: | 15 A |
| Standard Packing Quantity: | 100 |
| Module datasheet: | PDF, 5MB |

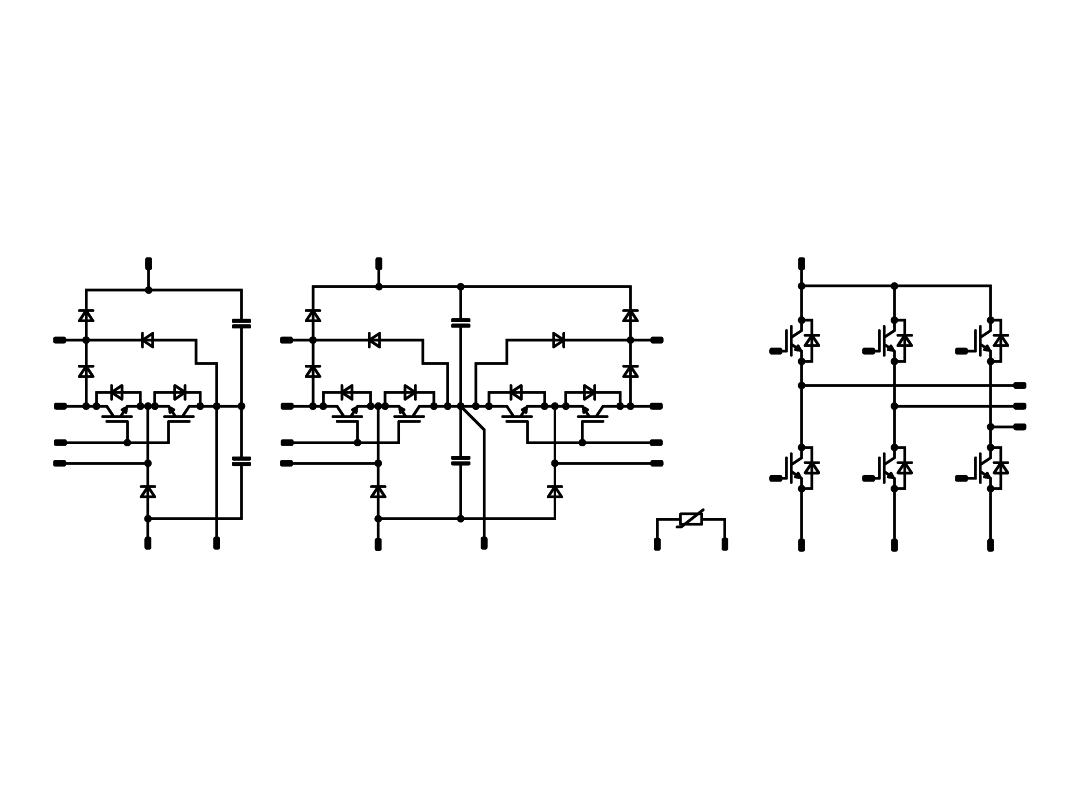

| Topology: | PIM+3xPFC (CIP) |
|---|
| Chip technology (main switch): | IGBT F5 |
|---|
| Base isolation (e.g. ceramic): | Al2O3 |
|---|---|
| Electrical interconnection: | Press-fit pin |
| Module housing: | flow1 |
|---|---|
| Mechanical connection to the PCB: | 4 towers |
| Footprint: | 82 mm x 37.4 mm |
| Height: | 12mm |
