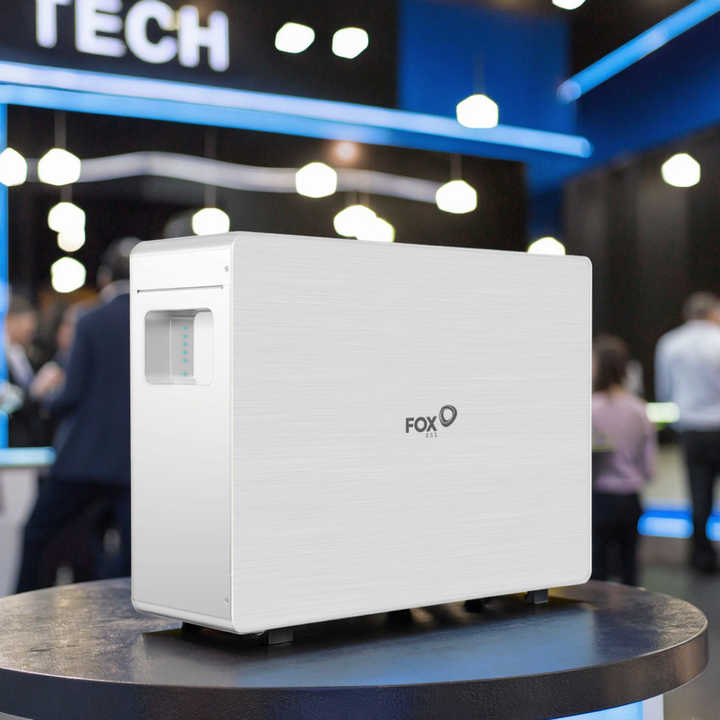

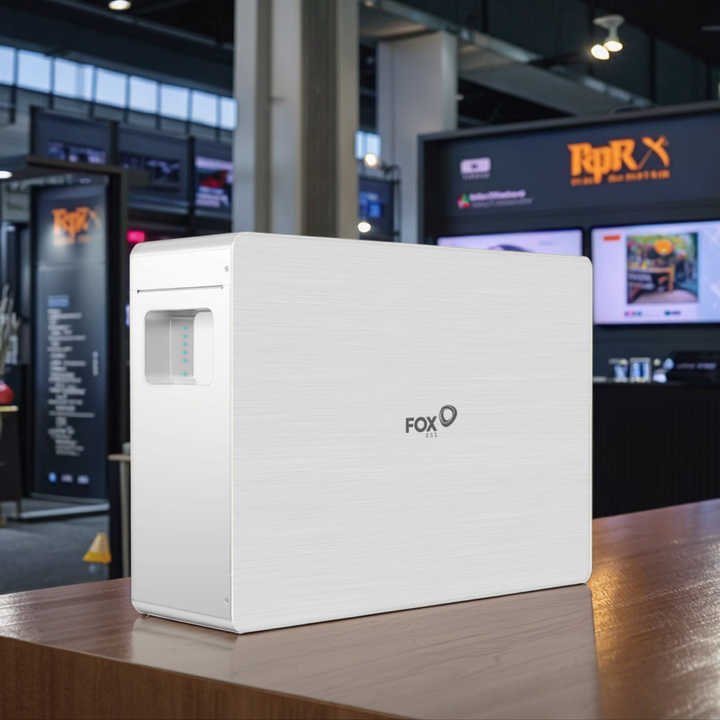

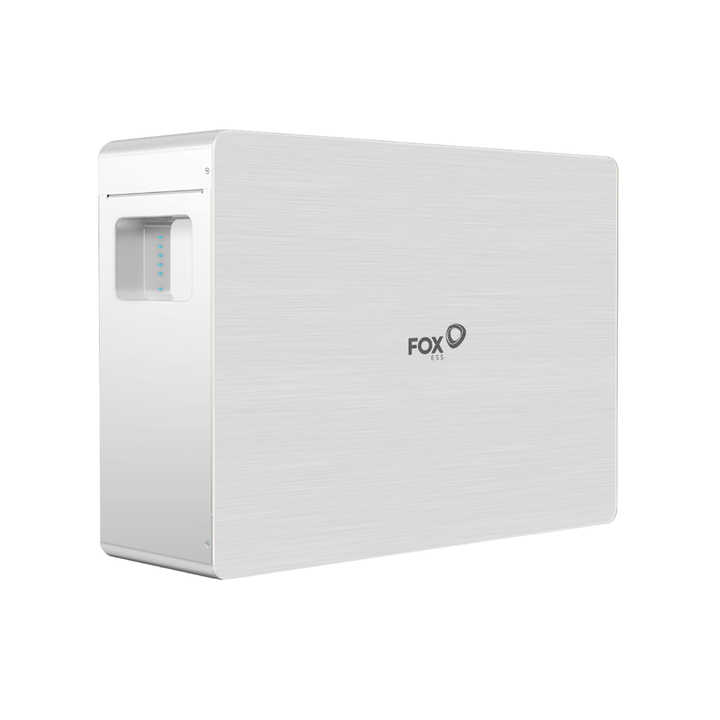

FOXESS LV52 LiFePO4 Battery Pack 51.2V 5-10kW Off-Grid/Hybrid Solar Energy Storage System

FOXESS LV52 LiFePO4 Battery Pack 51.2V 5-10kW Off-Grid/Hybrid Solar Energy Storage System

FOXESS CO., LTD. 2019-09 China
  • FOXESS LV52 LiFePO4 Battery Pack 51.2V 5-10kW Off-Grid/Hybrid Solar Energy Storage System
  • FOXESS LV52 LiFePO4 Battery Pack 51.2V 5-10kW Off-Grid/Hybrid Solar Energy Storage System
  • FOXESS LV52 LiFePO4 Battery Pack 51.2V 5-10kW Off-Grid/Hybrid Solar Energy Storage System
  • FOXESS LV52 LiFePO4 Battery Pack 51.2V 5-10kW Off-Grid/Hybrid Solar Energy Storage System
  • FOXESS LV52 LiFePO4 Battery Pack 51.2V 5-10kW Off-Grid/Hybrid Solar Energy Storage System
  • FOXESS LV52 LiFePO4 Battery Pack 51.2V 5-10kW Off-Grid/Hybrid Solar Energy Storage System
  • FOXESS LV52 LiFePO4 Battery Pack 51.2V 5-10kW Off-Grid/Hybrid Solar Energy Storage System
  • FOXESS LV52 LiFePO4 Battery Pack 51.2V 5-10kW Off-Grid/Hybrid Solar Energy Storage System
Summary
The FOXESS LV52 LiFePO4 Battery Pack is a high-performance energy storage solution designed for off-grid and hybrid solar systems. With a robust 51.2V system voltage and a scalable capacity of up to 5.32kWh, this wall-mounted battery ensures reliable power supply for residential and commercial applications. Built with advanced LiFePO4 chemistry, it offers superior safety, a long cycle life of ≥6000 cycles, and exceptional efficiency (>95%). Featuring a compact design, easy installation, and compatibility with 5-10kW output power systems, the LV52 is ideal for sustainable energy storage in diverse environments. Backed by a 9-year warranty, it delivers lasting value for renewable energy systems.More
Specifications
Color:
White
Capacity:
5.32KWH
  • FOXESS LV52 LiFePO4 Battery Pack 51.2V 5-10kW Off-Grid/Hybrid Solar Energy Storage System
  • FOXESS LV52 LiFePO4 Battery Pack 51.2V 5-10kW Off-Grid/Hybrid Solar Energy Storage System
  • FOXESS LV52 LiFePO4 Battery Pack 51.2V 5-10kW Off-Grid/Hybrid Solar Energy Storage System
  • FOXESS LV52 LiFePO4 Battery Pack 51.2V 5-10kW Off-Grid/Hybrid Solar Energy Storage System

Key attributes

System Voltage
51.2 V
Output Power Range
5-10KW
Grid connection
Off grid, Hybrid grid
Battery Type
LiFePO4
System Type
Wall-mounted
Model Number
LV52
Brand Name
FOXESS
Place of Origin
Zhejiang, China
Dimension (L*W*H)
620*184.5*420
Weight
49.5±0.5
Type
Split
Communication Port
CAN, rs485
Protection Class
IP21
Recommend Discharge Current [A]
50
Max.Charge/Discharge Current [A]
50/100
Battery Pack Round-Trip Efficiency [%]
>95
Cycle Life
≥6000
Scalability
Max. 4 Modules in Parallel
Display
LED*5
Altitude [m]
Max. 2000
Ingress Protection
IP21
Safety
EN62619 IEC61000-6-1/3
Warranty
9 Year

Packaging and delivery

Selling Units
Single item
Single package size
74X50X30 cm
Single gross weight
57.000 KG
