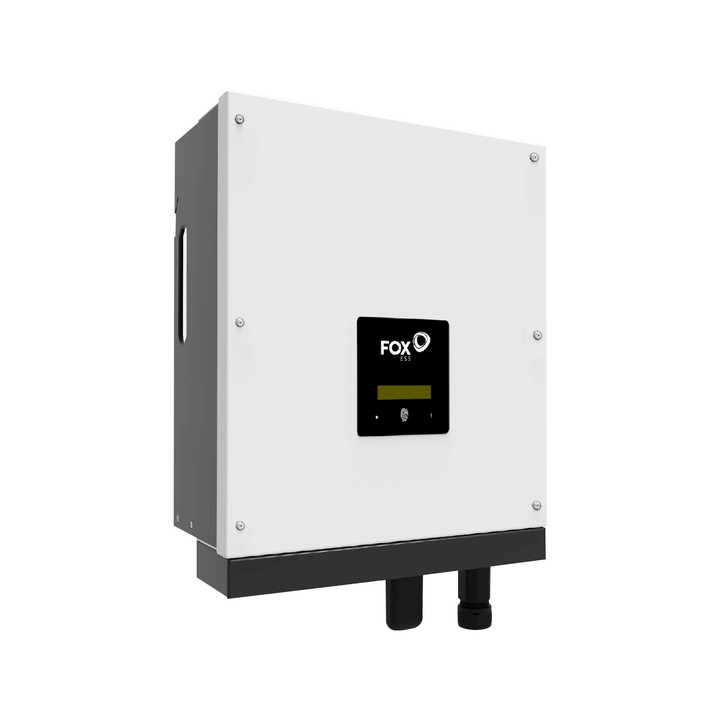

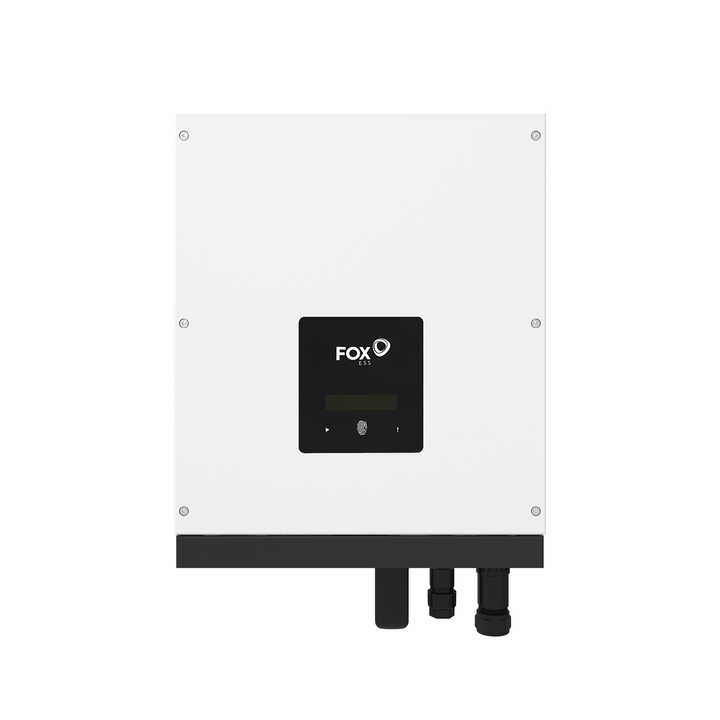

FOXESS String Inverter On-Grid Solar Inverter Three Phase Dual MPPT 3-25kW for Residential and Commercial Solar Systems

FOXESS String Inverter On-Grid Solar Inverter Three Phase Dual MPPT 3-25kW for Residential and Commercial Solar Systems

FOXESS CO., LTD. 2019-09 China
  • FOXESS String Inverter On-Grid Solar Inverter Three Phase Dual MPPT 3-25kW for Residential and Commercial Solar Systems
  • FOXESS String Inverter On-Grid Solar Inverter Three Phase Dual MPPT 3-25kW for Residential and Commercial Solar Systems
  • FOXESS String Inverter On-Grid Solar Inverter Three Phase Dual MPPT 3-25kW for Residential and Commercial Solar Systems
  • FOXESS String Inverter On-Grid Solar Inverter Three Phase Dual MPPT 3-25kW for Residential and Commercial Solar Systems
  • FOXESS String Inverter On-Grid Solar Inverter Three Phase Dual MPPT 3-25kW for Residential and Commercial Solar Systems
  • FOXESS String Inverter On-Grid Solar Inverter Three Phase Dual MPPT 3-25kW for Residential and Commercial Solar Systems
  • FOXESS String Inverter On-Grid Solar Inverter Three Phase Dual MPPT 3-25kW for Residential and Commercial Solar Systems
  • FOXESS String Inverter On-Grid Solar Inverter Three Phase Dual MPPT 3-25kW for Residential and Commercial Solar Systems
Summary
The FOXESS String Inverter is a high-efficiency On-Grid Solar Inverter designed for residential and commercial solar systems. Featuring a Three Phase output and Dual MPPT technology, it ensures optimal energy conversion with an efficiency of up to 98.60%. Built with comprehensive protection features including DC reverse polarity, anti-islanding, over-temperature, and surge protection, this inverter guarantees safe and reliable operation. Compact in design with dimensions of 475*384*186mm and a robust 20KG build, it supports a wide AC voltage range (3/N/PE, 400V) and frequency (50/60Hz ±5Hz), making it ideal for diverse environments. With an 8-year warranty, the FOXESS T12 2.0 model delivers long-term performance and durability for sustainable solar energy solutions.More
Specifications
Application:
On-Grid Solar System
Output Power:
3-25KW
  • FOXESS String Inverter On-Grid Solar Inverter Three Phase Dual MPPT 3-25kW for Residential and Commercial Solar Systems
  • FOXESS String Inverter On-Grid Solar Inverter Three Phase Dual MPPT 3-25kW for Residential and Commercial Solar Systems
  • FOXESS String Inverter On-Grid Solar Inverter Three Phase Dual MPPT 3-25kW for Residential and Commercial Solar Systems
  • FOXESS String Inverter On-Grid Solar Inverter Three Phase Dual MPPT 3-25kW for Residential and Commercial Solar Systems

Key attributes

Output Type
Three Phase
Inverter Efficiency
98.60%
Place of Origin
Zhejiang, China
Model Number
T12 2.0
Brand Name
FOXESS
Size
475*384*186MM
Type
DC/AC Inverters
Weight
20KG
Rated grid voltage(AC voltage range)
3/N/PE,400V
Rated grid Frequency
50/60Hz , ±5Hz
DC Reverse Polarity Protection
YES
Anti-islanding Protection
YES
Leakage Current Protection
YES
Insulation Resistance Detection
YES
Over-Current Protection
YES
Over-Temperature Protection
YES
DC/AC Surge Protection
YES
Warranty
8 Years

Packaging and delivery

Selling Units
Single item
Single package size
60X50X31 cm
Single gross weight
32.000 KG
