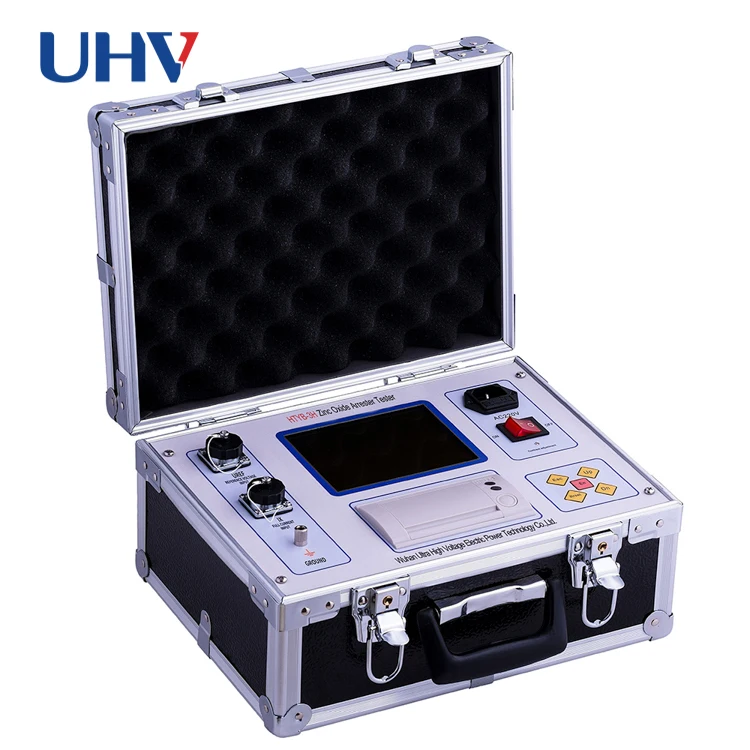

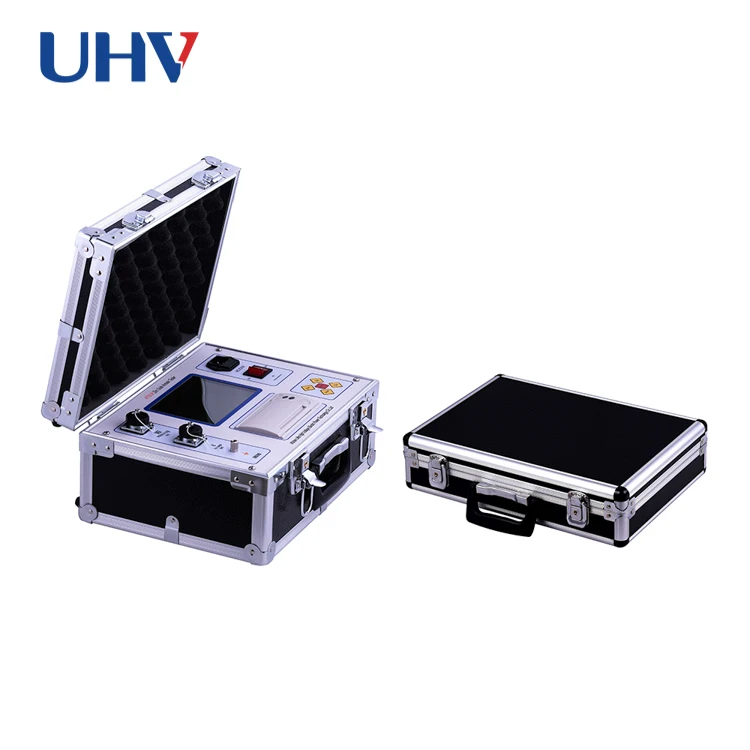

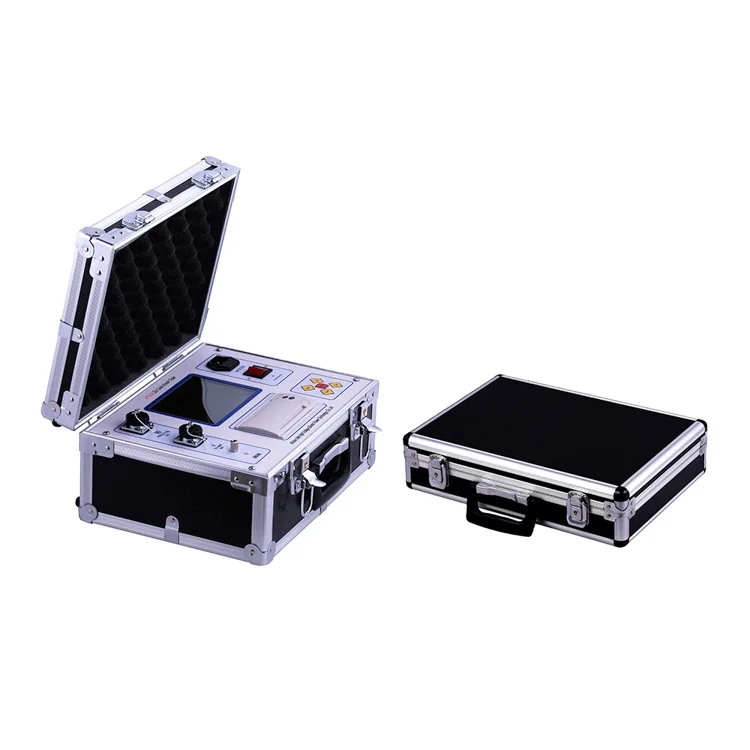

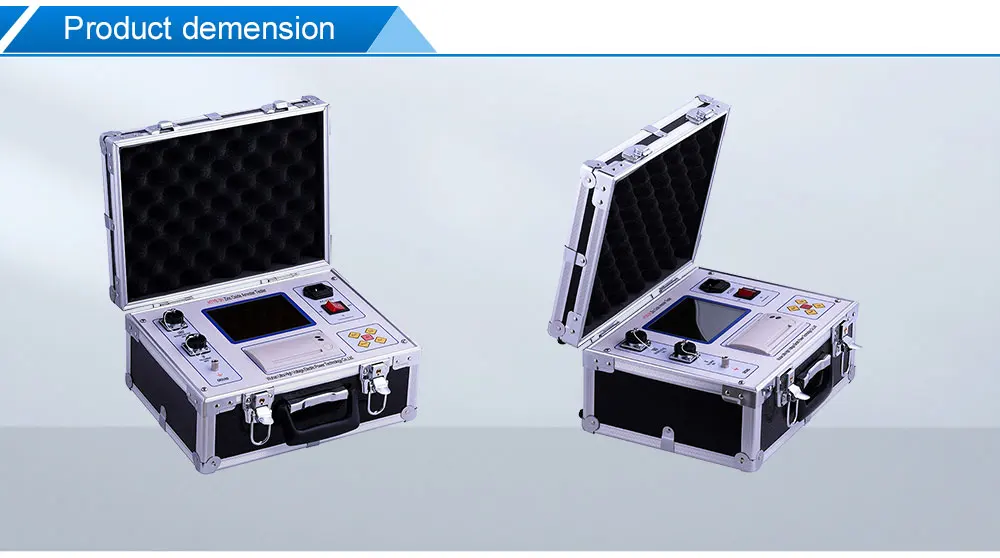

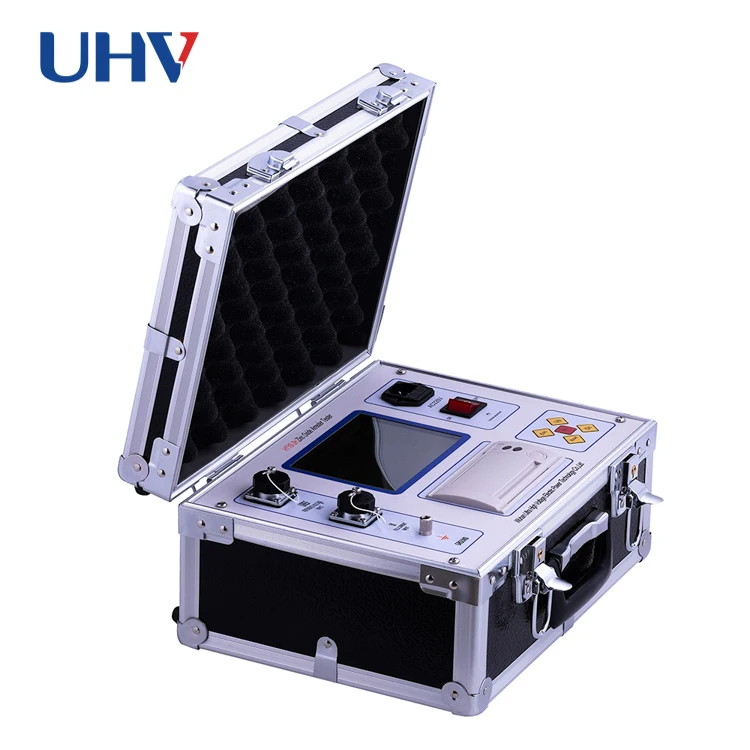

G UHV-540 Digital Lightning Arrester Live Detector Lightning Arrester Electrification Tester

Wuhan UHV Power Technology Co., Ltd.

Hubei,China

Summary

No.1600916481802

$1450.00

Specifications

Use:

Other

Auto Testing Machine

Universal Testing Machine

INQUIRY

Description Download

Key attributes

customized support

OEM, ODM, OBM, Software reengineering

place of origin

Hubei, China

power

Electronic

warranty

1 years

brand name

UHV

model number

HTYB-3H

Product name

Zinc Oxide Arrester Tester

Reference voltage input range

10V~200V,Customizable (0-250V)

Full leakage current measurement range

100uA ~ 8mA, can be customized (0-20mA)

Capacitive current measurement range

100uA ~ 8mA, can be customized (0-20mA)

Resistive current measurement range

100uA ~ 8mA, can be customized (0-20mA)

Angle measurement range

0°~90°

Power Supply

AC220V ±10%,50Hz ±1%

Power consumption

Accuracy

± (reading * 5% + 5 words)

Warranty

1 Year

Packaging and delivery

Packaging Details

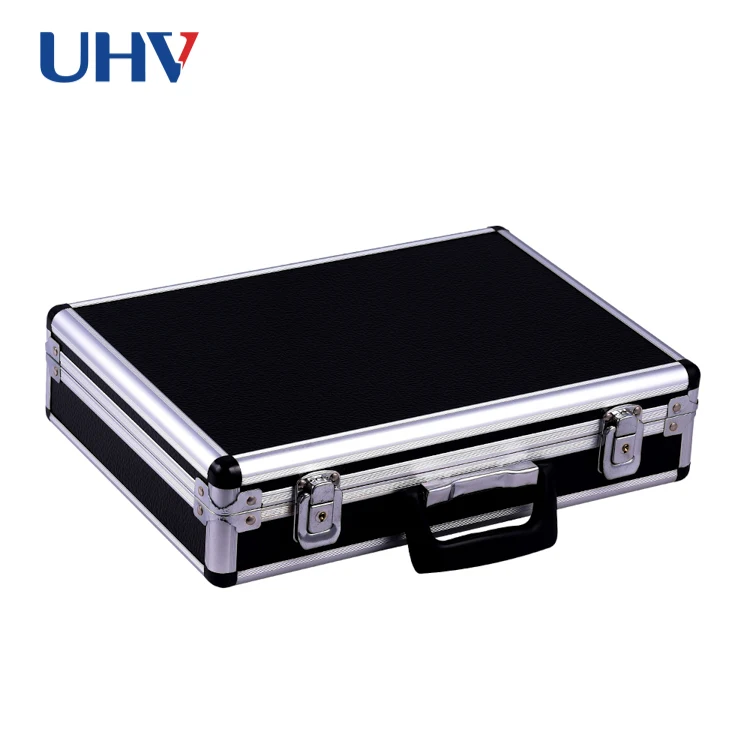

Outside packing: standard wooden box

Port of dispatch

Shanghai/Wuhan

Selling Units

Single item

Packaging examples

Supply capacity

Supply Ability

80 sets per Month Hydro Resonant system

Product Paramenters

Reference voltage input range (peak)	10V ~ 200V, can be customized (0-250V)
Full leakage current Measuring range (peak)	100uA ~ 8mA, can be customized (0-20mA)
Resistive current Measuring range (peak)	100uA ~ 8mA, can be customized (0-20mA)
Capacitive current Measuring range (peak)	100uA ~ 8mA, can be customized (0-20mA)
Angle Measuring range	0°～90°
Power	4W
System measurement accuracy	± (reading × 5% + 5 words) (harmonic current is not more than 2 mA)
AC power supply	AC220V ±10%，50Hz ±1%

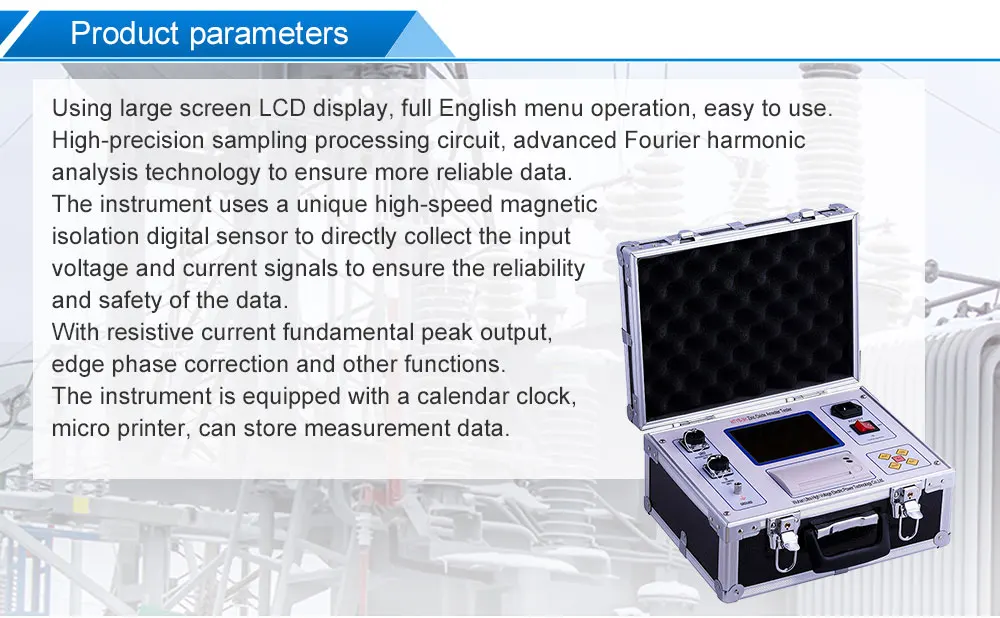

Functions&Characteristics：

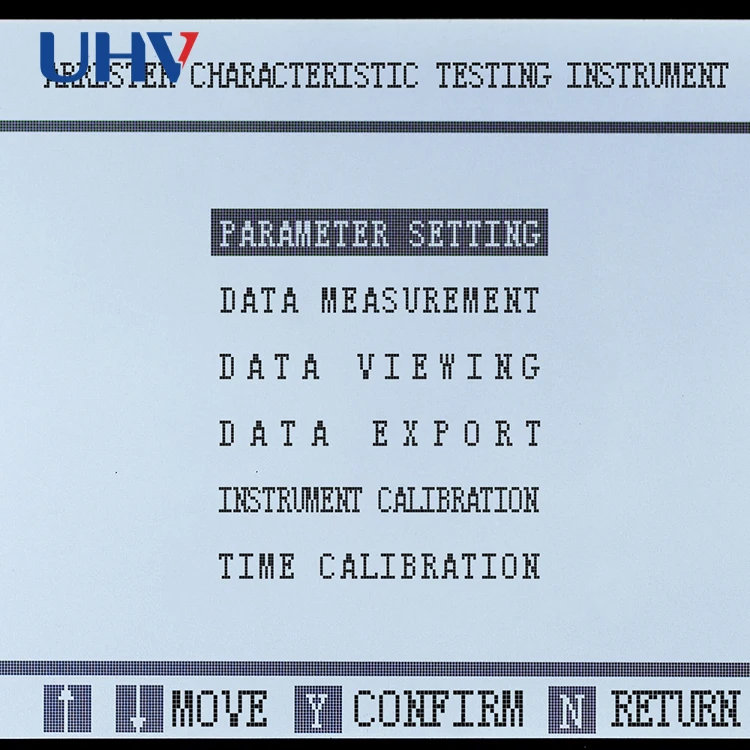

1. Using large screen LCD display, full English menu operation, easy to use.

2. High-precision sampling processing circuit, advanced Fourier harmonic analysis technology to ensure more reliable data.

3. The instrument uses a unique high-speed magnetic isolation digital sensor to directly collect the input voltage and current signals to ensure the reliability and safety of the data.

4. With resistive current fundamental peak output, edge phase correction and other functions.

5. The instrument is equipped with a calendar clock, micro printer, can store measurement data.

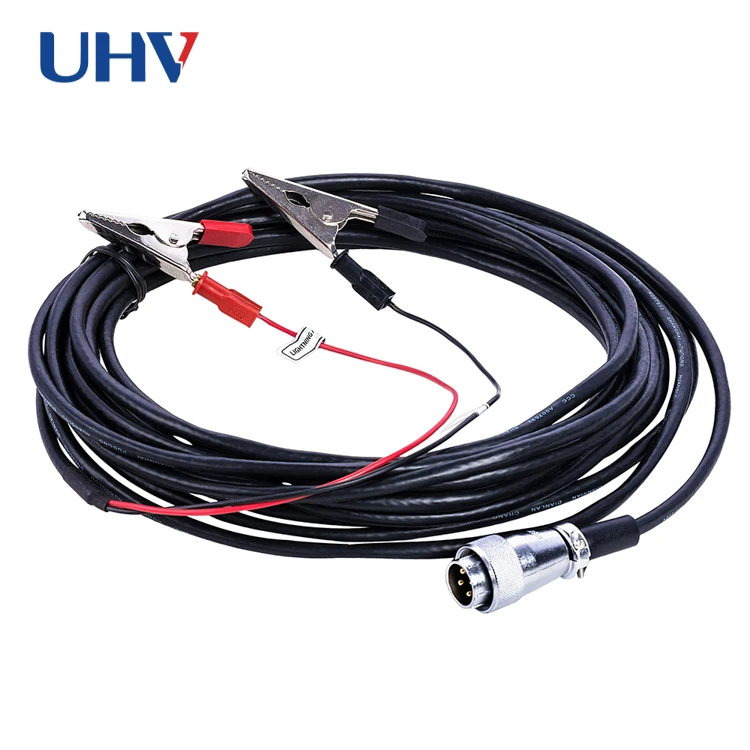

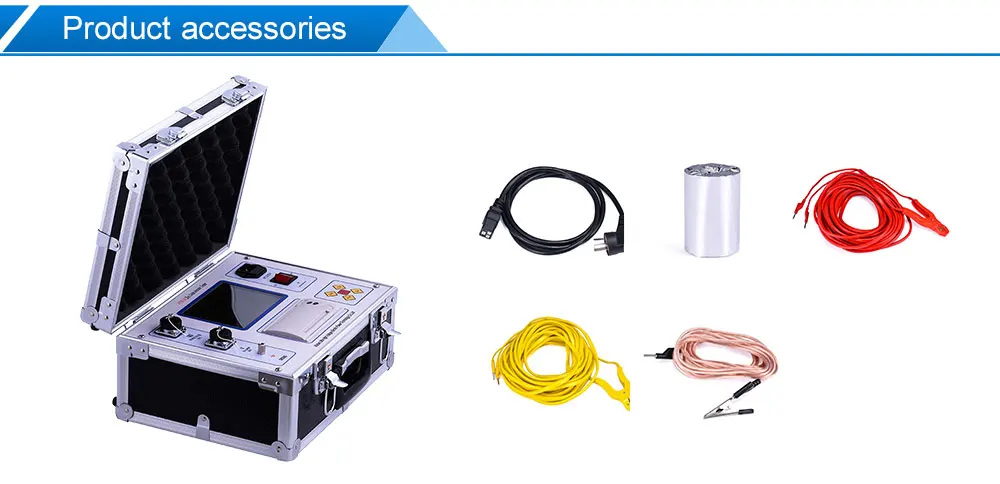

Product Attachment

Company Profile

Wuhan UHV Electric Power Technology CO.,Ltd.

Wuhan UHV Electric Power Technology CO.,Ltd. Established in 2021, which are located in Wuhan Optical Valley East Lake High-Tech Development Zone. We are a well-experienced OEM/ODM factory engaged in the research, development, manufacture, sale and service of electric power testing equipment or systems. Including AC Series Resonant Test System, AC/DC/VLF Hipot Test Set, Transformer Tester, Secondary Injection Relay Tester, Cable/Line Tester, Insulation Oil Tester, Circuit Breaker/Switch Tester & SF6 Test Equipment etc. Widely used in electric power,energy, transportation,metallurgical,chemical,mining and water conservancy project.

We have obtained the ISO 9001 quality system certification, OHSAS 18001:2007 Occupational Health and Safety Management System certification and all products conform to the international CE or Chinese state standards.
Our products are widely exported to all over the world and our service are recognized and highly appreciated by world scale customers, we will always provide you the best solution. Looking forward to building a thrust-worthy and long term relationship with you.

More Products

Packing & Delivery

Recommend Products

FAQ

1. Is your company a sales company or a manufacturer?Wuhan UHV Electric Power Technology CO.,Ltd. is an industrial and trade enterprise, with its own factory, self-produced and self-sold. We were founded in 2004 and have fifteen years of production experience. Our company has reliable production lines, test rooms and R&D centers.2. Whether the goods are in stock, whether they can be customized, and how long the delivery time is?After the goods have been ordered, we can be made to order according to the special requirements of customers by using the latest technology. The delivery time is usually within 10 working days if there are no accidents.3. Is the quality guaranteed?In order to ensure quality, we use imported components in large quantities. After three times of quality inspection, the goods can be sent out, and the export is uniformly packed in non-fumigation wooden boxes.4. What are the after-sales terms?We offer free consulting service, one year warranty, and adopt various methods such as email communication, video calls, technology door-to-door, aiming to solve any after-sales problems in a timely manner.5. What are the cooperative countries or regions?Products have been successfully exported to the United States, Brazil, Australia, Russia, the Netherlands, Indonesia, Bangladesh, Iran, India, Saudi Arabia, Mongolia, Japan and other countries and regions. In the United States, India, Vietnam and other regions have cooperative distributors, can provide thoughtful services.
