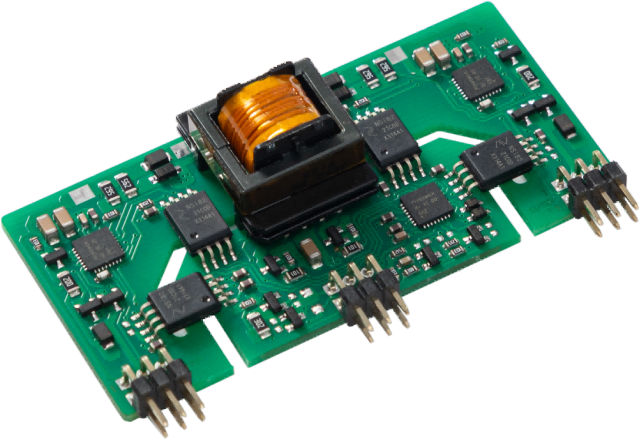

The compact 2FHC0215x gate driver core is based on digital ASIC by Firstack technology. It supports the operation of up to 900A/1700V IGBT power modules with 15V gate voltage in on-state. The 2FHC0215x features dual-channel with electrical interfaces, and supports multi-level topology. Firstack intelligent fault management allows the gate driver core to differentiate between faults.
Compact and Highly Integrated
Gate driver solution for 1700V IGBT Dual-channel 15V gate voltage in on-state 2W output power per channel at maximum ambient temperature 15 A gate peak current Electrical interface -40°C to 85°C operating ambient temperature Intelligent fault management
Protection
Short-circuit protection(Soft shut down) Undervoltage protection Active Clamping
Safety Segregation Standard
EN50178 Level-2 protection
