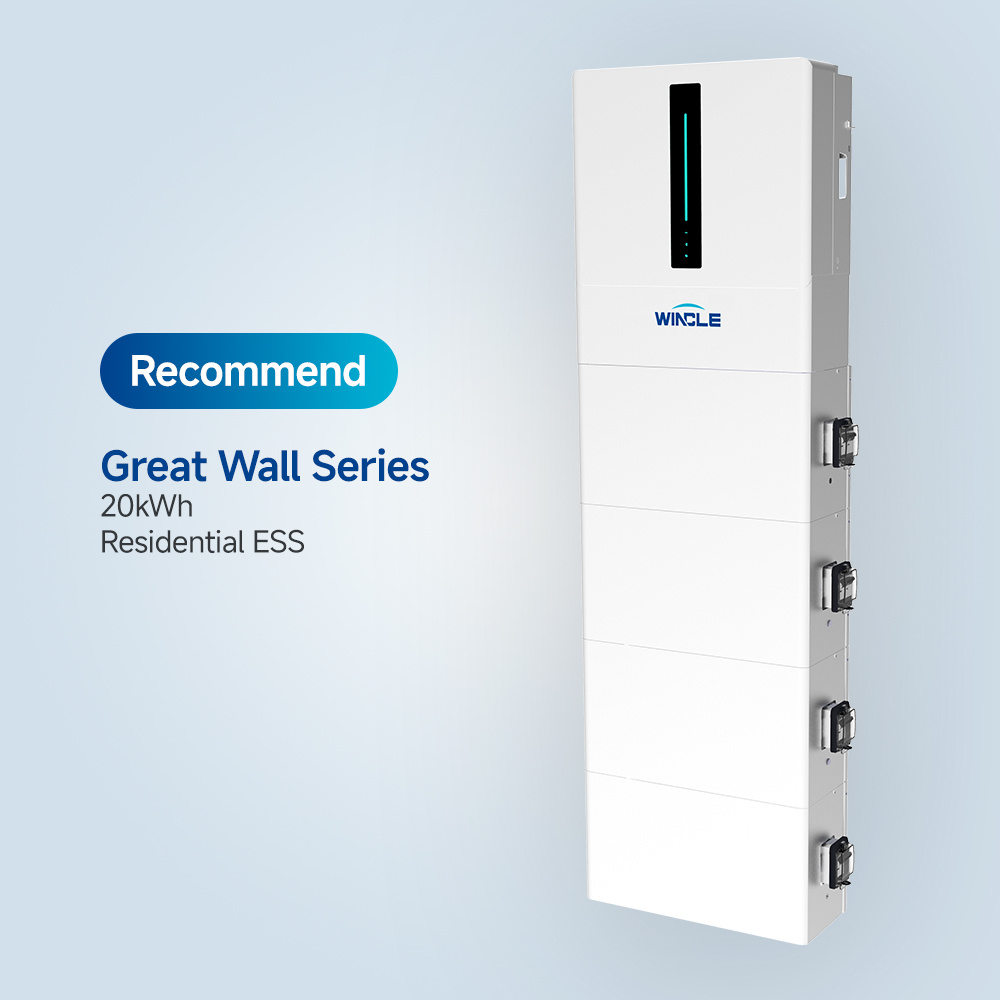

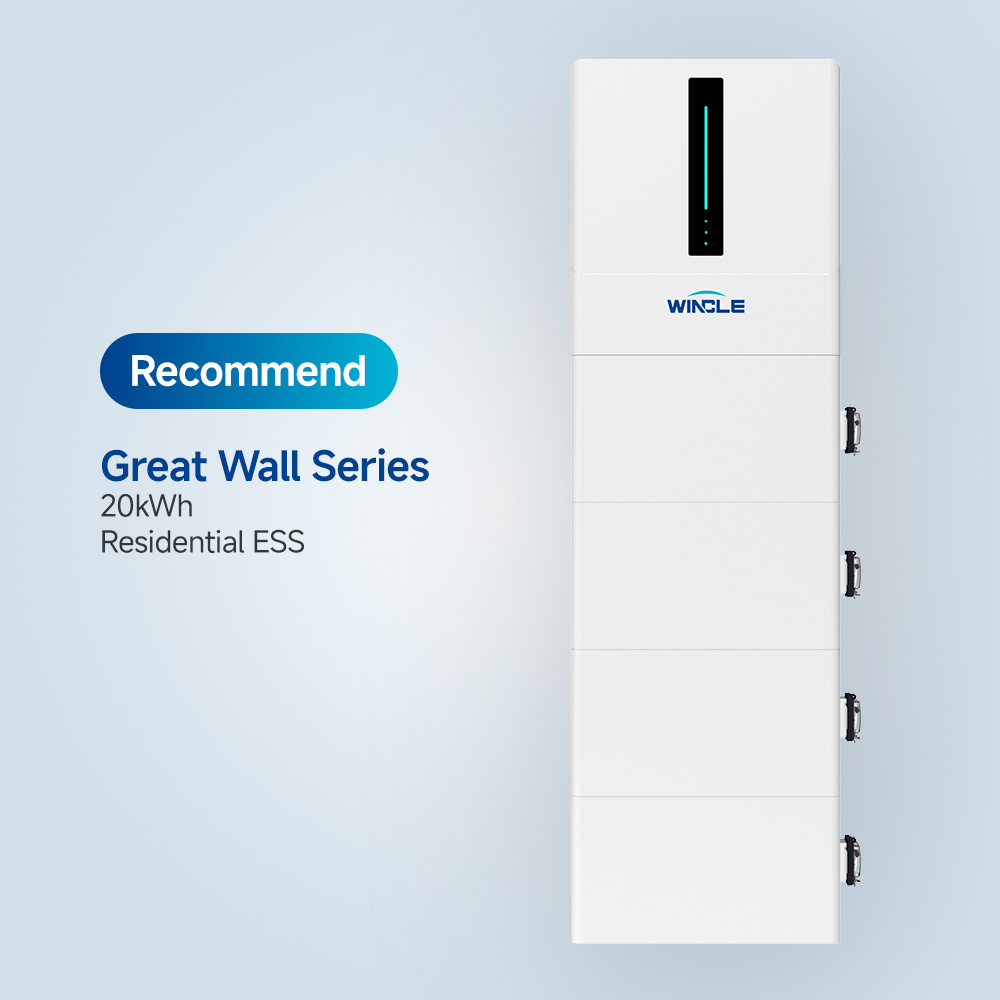

Household energy storage |
Safe Reliability
Long Life
iBMS
Ease of Installation
Flexible Extensibility
Strong Environmental AdaptabilityPerfect Compatibility
Expandable up to 30kWh
| Model | Great Wall 20 |
| Configuration | 2P16S:4pcs |
| Size | 600*1800*220mm |
| Weight | 193kg |
| Nominal Voltage | 51.2V |
| Voltage Range | 40-58.4V |
| Rated Capacity | 400Ah |
| Rated Energy | 20.48kWh |
| Max. Charge Current | 50A |
| Max. Discharge Current | 100A |
| Depth of Discharge | 90% |
| Communication Protocol | CAN/RS485 |
| Cycle Life | ≥6000times @25℃ 0.5C |
| Operating Temp. Range | Charge: 0~55℃; Discharge: -10~35℃ |
| System Certification | ISO13849, IEC/EN 62619, IEC/EN 61000, IEC/EN 62040, UL1973, UL9540A |
