Product Features
- Liquid-Cooled Pack in Parallel: Revolutionizing Thermal Management
- At the heart of these systems lies a state-of-the-art liquid cooling technology that ensures optimal thermal management. This innovative parallel cooling approach efficiently dissipates heat generated during battery operation, significantly enhancing battery cell performance and longevity. By maintaining cells within their optimal temperature range, we guarantee peak efficiency and minimized power losses.
- Modular Flexibility and Scalability
- Boasting a modular architecture, the Lithium Battery Rack/Cabinet/Container offers unparalleled flexibility and scalability. Easily configurable to suit varying power requirements, individual modules can be seamlessly combined to create tailored solutions for small-scale backup systems or large-scale energy storage projects. This design not only simplifies maintenance and upgrades but also reduces downtime, thereby enhancing overall system reliability.
- Thermal Insulation: Eliminating Heat Diffusion
- Each battery cell within the rack/cabinet/container is equipped with **thermal insulation eliminating heat diffusion between adjacent cells. This ensures a uniform temperature distribution across the entire system, minimizing hotspots and maintaining optimal operating conditions for all cells. As a result, our systems achieve unmatched stability and reliability.
- Uniform Temperature Difference Within 2°C
- Through precise thermal management and advanced engineering, our Lithium Battery Rack/Cabinet/Container maintains a uniform temperature difference of no more than 2°C across all battery cells. This level of precision ensures that every cell operates at peak efficiency, maximizing and minimizing energy losses, thereby optimizing overall system performance.
- Optimized Flow Channel Design
- The innovative flow channel design has been meticulously optimized using advanced thermal simulation technology. This ensures that coolant flows efficiently throughout the system, providing maximum cooling effectiveness with minimal pressure drop. This approach results in a cost-effective cooling solution that maximizes battery performance and longevity.
- 20% Longer Cycle Life
- Thanks to its superior liquid cooling system, our Lithium Battery Rack/Cabinet/Container cycle life that is 20% longer than traditional air-cooled systems. This extended lifespan translates into lower maintenance costs and a higher return on investment for our customers, making it a financially sound choice for long-term energy storage needs.

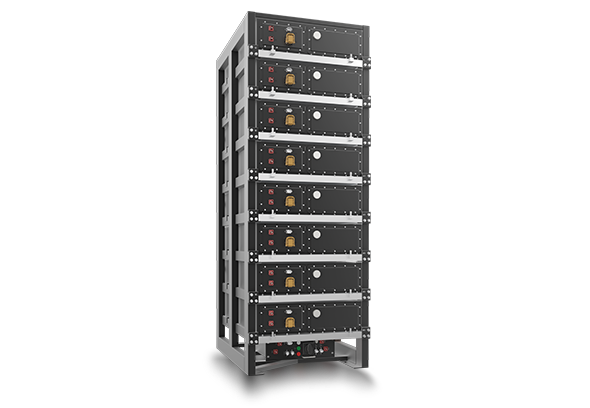

In conclusion, the greatpower Lithium Battery Rack/Cabinet/Container series, with its LiqRack-280Ah184S and LiqRack-280Ah1P416S models, represents the future of energy storage. Combining cutting-edge liquid cooling technology, modular design, and unparalleled performance, these systems are poised to revolutionize the industry and meet the evolving needs of our customers.
Product Parameters:
| Product Type |
LigRack-280Ah 1P416s |
LigRack-280Ah 1P384S |
| Charge/Discharge Rate of The Pack |
0.5C |
0.5C |
| Configuration |
1P416S |
1P 384S |
| Nominal Voltage |
1331.2 V |
1228.8 V |
| Working Voltage Range |
900-1500Vd.c. |
900-1500Vd.c. |
| Rated Capacity |
280 Ah |
280 Ah |
| Rated Energy |
372.7 kWh |
344 kWh |
| Dimensions |
W860xD1153xH2333 mm |
W860xD1080xH2333 mm |
| Product Weight |
≈3200 Kg |
≈3000 Kg |
| Pack Type |
LigPack-1P52S |
LigPack-1P48S |
| Functional Safety |
Class B |
Class B |
| Applications |
Container |
Container |
