Safety is paramount in all aspects of the Utility-ESS. Compliant with industry-leading standards such as UL9540A and NFPA855, our system ensures that every component and process adheres to the strictest guidelines for fire safety, electrical safety, and overall operational reliability. This commitment to safety ensures peace of mind for operators and stakeholders alike.
Efficiency is at the heart of the Utility-Scale BESS. Boasting a battery cell efficiency of ≥96%, and RTE (Round-Trip Efficiency) ratings of 9 at 0.25 power factor (p) and 95% at 0.5p on the DC side, our system maximizes energy usage and minimizes losses. This translates into significant cost savings over the long term, making it an economically viable investment for utilities and renewable energy projects.

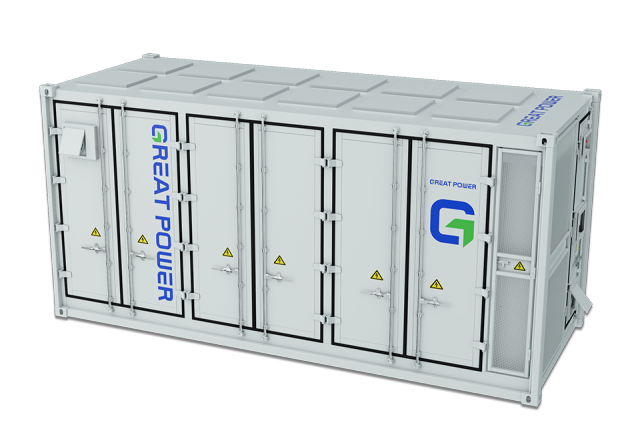

Designed for seamless integration into any existing infrastructure, the Utility-Scale BESS features an integrated design housed within a standard 20-foot general purpose (gp) container. This not only simplifies logistics and also drastically reduces installation time and complexity. With minimal site preparation required, our system can be quickly deployed and operational, accelerating your path to energy independence.
Protection against harsh environmental conditions is essential for long-term reliability. The Utility-Scale BESS offers an IP55 rating overall, ensuring protection against dust and water jets from any direction. The Battery Pack boasts an IP67 rating, safeguarding against immersion up to 1 meter for 30 minutes, while the High-voltage box and maintain IP54 and IPX5 ratings, respectively. This robust protection ensures continuous operation even in challenging environments.
The Utility-Scale BESS delivers exceptional value for money, with a 50% increase in energy density compared to conventional systems. This enhancement translates into longer battery life cycles and higher returns on investment. Coupled with its superior efficiency and low maintenance requirements, our system is the cost-effective choice for utilities, commercial enterprises, and renewable energy projects seeking to maximize their ROI. In conclusion, the Utility-Scale BESS is a comprehensive, high-performance energy storage solution that combines safety, efficiency, ease of use, robust protection, and cost-effectiveness. It is the ideal choice for organizations seeking to harness the full potential of renewable energy sources and pave the way for a sustainable future. Contact us today to learn more about how the Utility-Scale BESS can transform your energy landscape.
| Type | Max-20HC-5000 |
| Product Category | 20HC DC liquid-cooling container energy storage solution |
| Rated Energy | 5.0Mwh@0.5c |
| Rated Power | <417kW*6/1.25MW*2 |
| Rated Output Voltage | 1040-1500 Vd.c. |
| Cell Capacity | 314 Ah |
| Cell Type | LFP |
| Configuration | 1P416S*12 |
| Maximum Discharge Current |
157 A*12
|
|
Maximum Charging Current
|
193 A*12@5min
|
|
Charging Temperature
|
-30-+50°C
|
|
Discharging Temperature
|
-35-+60°C
|
|
Communication Port
|
CAN、RS485、RJ45/0ptical fiber
|
|
Cooling Method
|
Liquid cooling
|
|
Protection Level
|
IP55
|
|
Functional Safety
|
class B
|
|
Product Weight
|
<42T
|
|
Dimensions
|
W6058*D2438*H2896 mm (20HC)
|
|
Applications
|
Utility-scale, C&l
|
