Characteristics | Model | 48V 100Ah (Customizable LCD) | |||
Energy | 5000WH | ||||
Months Self Discharge | <3% | ||||
Standard Charge | Charge Voltage | 53.2-54V | |||
Charge Mode | 0.2C to 54V, then 54V,charge current to 0.02C (CC/CV) | ||||
Charger Current | 20A | ||||
Max. Charge Current | 50A | ||||
Charge Cut-off Voltage | 57.6±0.2V | ||||
Standard Discharge | Max continuous discharge current | 50A | |||
Discharge Cut-off Voltage | 37.5V | ||||
Cycle life | 2000 Cycles(100%DOD) | ||||
5000 Cycles(80%DOD) | |||||
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity | |||
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | ||||
Water Dust Resistance | Customizable | ||||

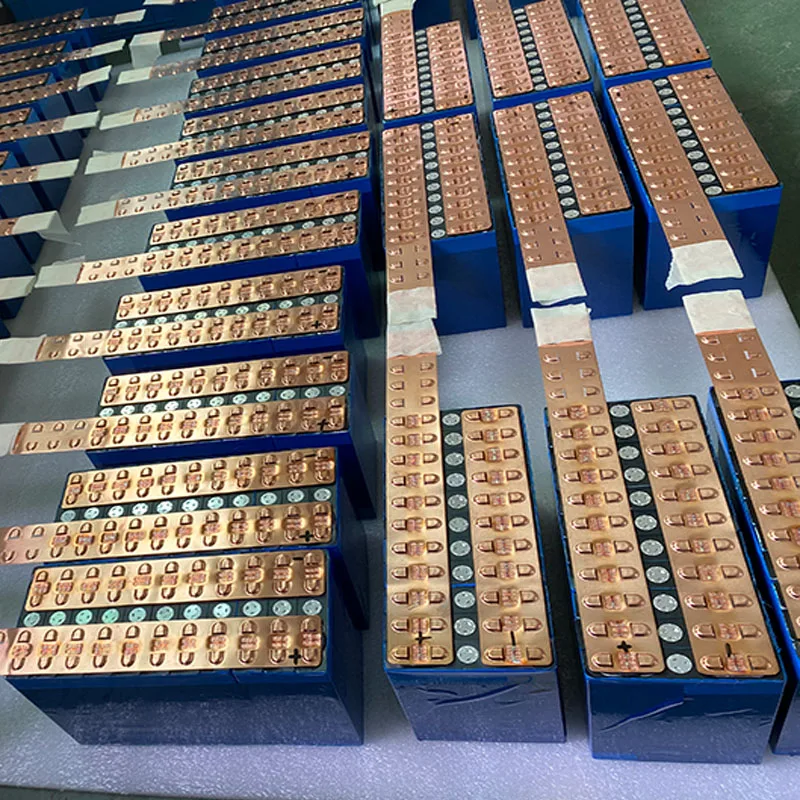

Mechanical | Cell & Method | 3.2V25Ah 4S4P | |||
Shell material | Iron | ||||
Dimensions (in./mm.) | 442*410*221mm | ||||
Weight (lbs./kg.) | Approx: 63kg | ||||
