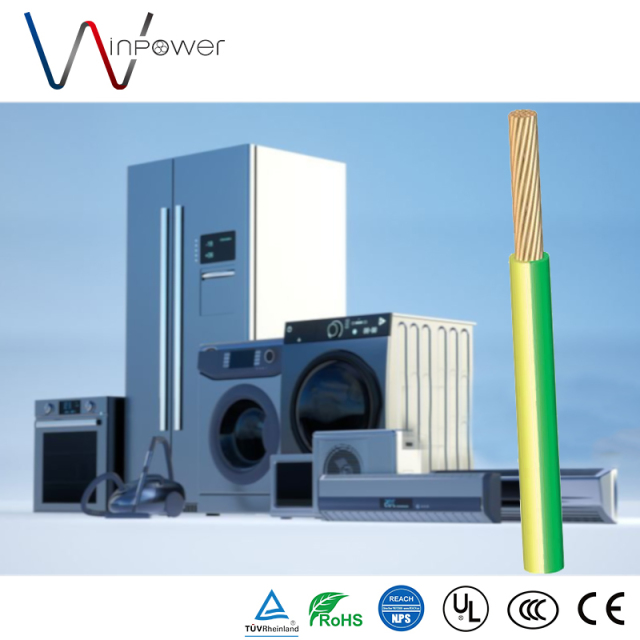

Working voltage：300/500v (H05V-K UL)
Working voltage：450/750v (H07V-K UL)
Working voltage UL/CSA：600v AC, 750v DC
Test voltage：2500 volts
Flexing/Static bending radiu：10-15 x O
Temperature HAR/IEC：-40oC to +70oC
Temperature UL-AWM ：-40oC to +105oC
Temperature UL-MTW ：-40oC to +90oC
Temperature CSA-TEW：-40oC to +105oC
Flame retardant：NF C 32-070, FT-1
Insulation resistance：20 MΩ x km
Fine tinned copper strands
Strands to VDE-0295 Class-5, IEC 60228 Class-5, HD383 Class-5
Special PVC TI3 core insulation
Cores to VDE-0293 colors
H05V-K UL (22, 20 & 18 AWG)
H07V-K UL (16 AWG and Larger)
X05V-K UL & X07V-K UL for non-HAR colors
Rated voltage: The rated voltage of the H05V-K power cord is 300/500V, which is suitable for medium and low voltage environments.
Insulation material: The insulation material is polyvinyl chloride (PVC), which has good insulation performance and wear resistance.
Conductor material: Tinned copper is usually used as a conductor to improve conductivity and corrosion resistance.
Conductor cross section: The conductor cross section ranges from 0.5mm2 to 2.5mm2, which is suitable for occasions with different current requirements.
Operating temperature: The operating temperature range is -60℃ to 180℃, indicating that it can work stably in a wide temperature range.
NF C 32-201-7
HD 21.7 S2
VDE-0281 Part-3
UL-Standard and Approval 1063 MTW
UL-AWM Style 1015
CSA TEW
CSA-AWM I A/B
FT-1
CE Low Voltage Directive 73/23/EEC and 93/68/EEC
ROHS compliant
Flexibility: The H05V-K power cord has good flexibility and is suitable for use in occasions that require frequent movement or bending.
High and low temperature resistance: It can maintain stable performance in a wide temperature range and is suitable for various climatic conditions.
Wear resistance: The PVC insulation layer provides good mechanical protection and extends the service life of the wire.
Certification standards: It complies with international certification standards such as VDE0282, ensuring the safety and reliability of the wire.
Medium and light mobile appliances: Suitable for medium and light mobile appliances, instruments and meters, household appliances, etc. where the wires need to be soft and easy to move.
Power lighting: Used in power lighting systems, especially in environments where the wires need to be soft to adapt to different layouts.
Internal wiring of equipment: Mainly installed inside the equipment, such as production facilities, switches and distribution boards, and used for lighting under the premise of protection.
Control system: It can be used for electrical wiring and machine tool wiring as well as control systems, especially in occasions where it needs to be laid in pipes or hoses.
H05V-K power cord is widely used in various occasions where the wire needs to be soft and able to withstand certain mechanical stress due to its softness, high and low temperature resistance and wear resistance. It is an ideal choice for industrial automation equipment, household appliances, lighting systems and other fields.
AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight |
# x mm^2 | mm | mm | kg/km | kg/km | |
H05V-K | |||||
20(16/32) | 1 x 0.5 | 0.6 | 2.5 | 4.9 | 11 |
18(24/32) | 1 x 0.75 | 0.6 | 2.7 | 7.2 | 14 |
17(32/32) | 1 x 1 | 0.6 | 2.9 | 9.6 | 17 |
H07V-K | |||||
16(30/30) | 1 x 1.5 | 0,7 | 3.1 | 14.4 | 20 |
14(50/30) | 1 x 2.5 | 0,8 | 3.7 | 24 | 32 |
12(56/28) | 1 x 4 | 0,8 | 4.4 | 38 | 45 |
10(84/28) | 1 x 6 | 0,8 | 4.9 | 58 | 63 |
8(80/26) | 1 x 10 | 1,0 | 6.8 | 96 | 120 |
6(128/26) | 1 x 16 | 1,0 | 8.9 | 154 | 186 |
4 (200/26) | 1 x 25 | 1,2 | 10.1 | 240 | 261 |
2 (280/26) | 1 x 35 | 1,2 | 11.4 | 336 | 362 |
1 (400/26) | 1 x 50 | 1,4 | 14.1 | 480 | 539 |
2/0 (356/24) | 1 x 70 | 1,4 | 15.8 | 672 | 740 |
3/0 (485/24) | 1 x 95 | 1,6 | 18.1 | 912 | 936 |
4/0 (614/24) | 1 x 120 | 1,6 | 19.5 | 1152 | 1184 |
